Page 72: Technical specifications
Gold Bell Installation Guide
MAN-G-BELIG (Ver. 1.004)
72
Chapter 5:
Technical Specifications
This chapter provides detailed technical information regarding the Gold Bell. This includes its
dimensions, power ratings, the environmental conditions under which it can be used, the
standards to which it complies and other specifications.

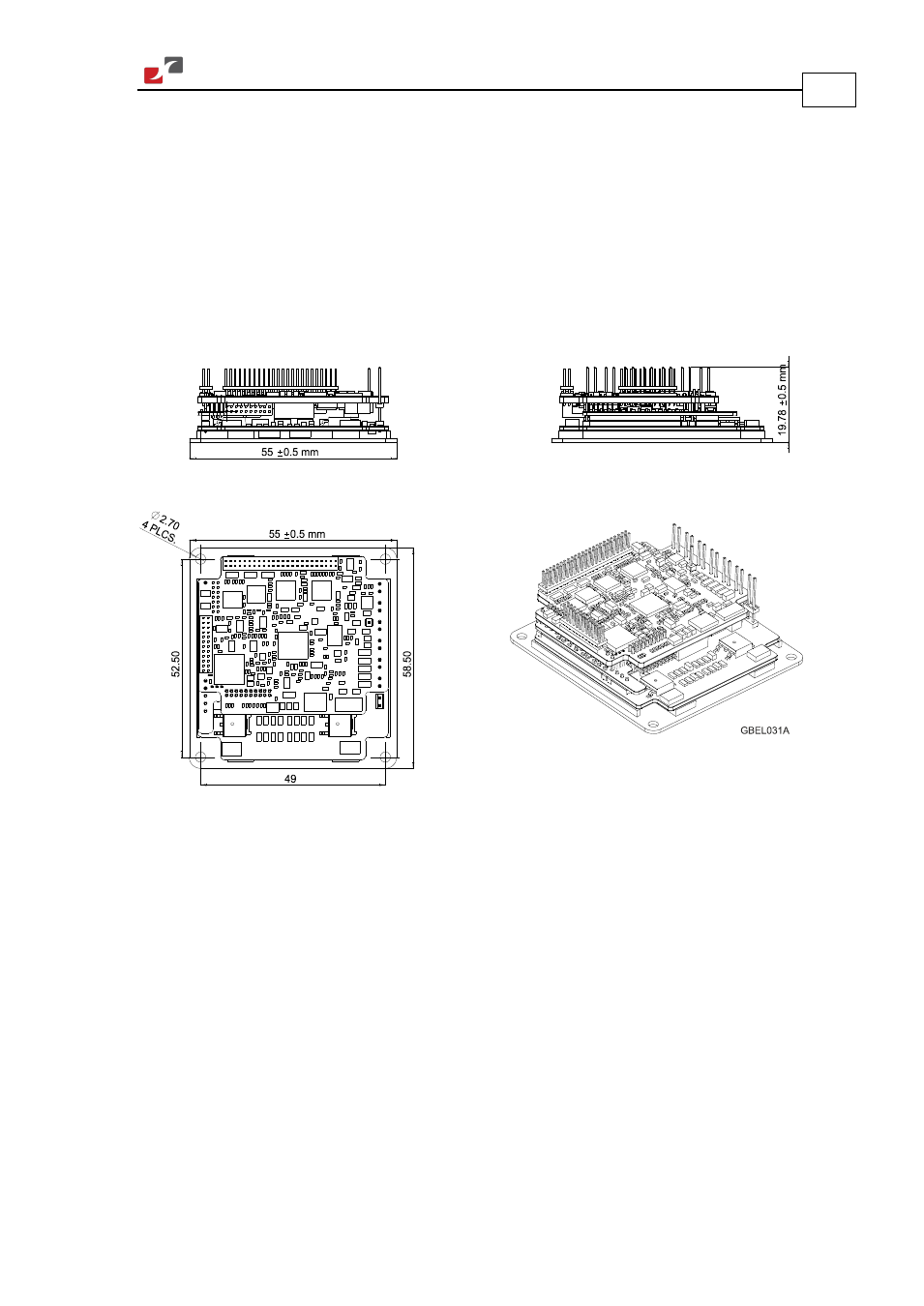

5.1. Dimensions
