Gold Bell Installation Guide

Installation

MAN-G-BELIG (Ver. 1.004)

www.elmomc.com

42

4.7.6.

Shared Supply

A Main DC Power Supply can be designed to supply power to the drive’s logic as well as to the
Main Power (see Figure 8 and the upper portion of Figure 10). If backup functionality is
required for continuous operation of the drive’s logic in the event of a main power-out, a
backup supply can be connected by implementing “diode coupling” (see the Aux. Backup
Supply in Figure 10).

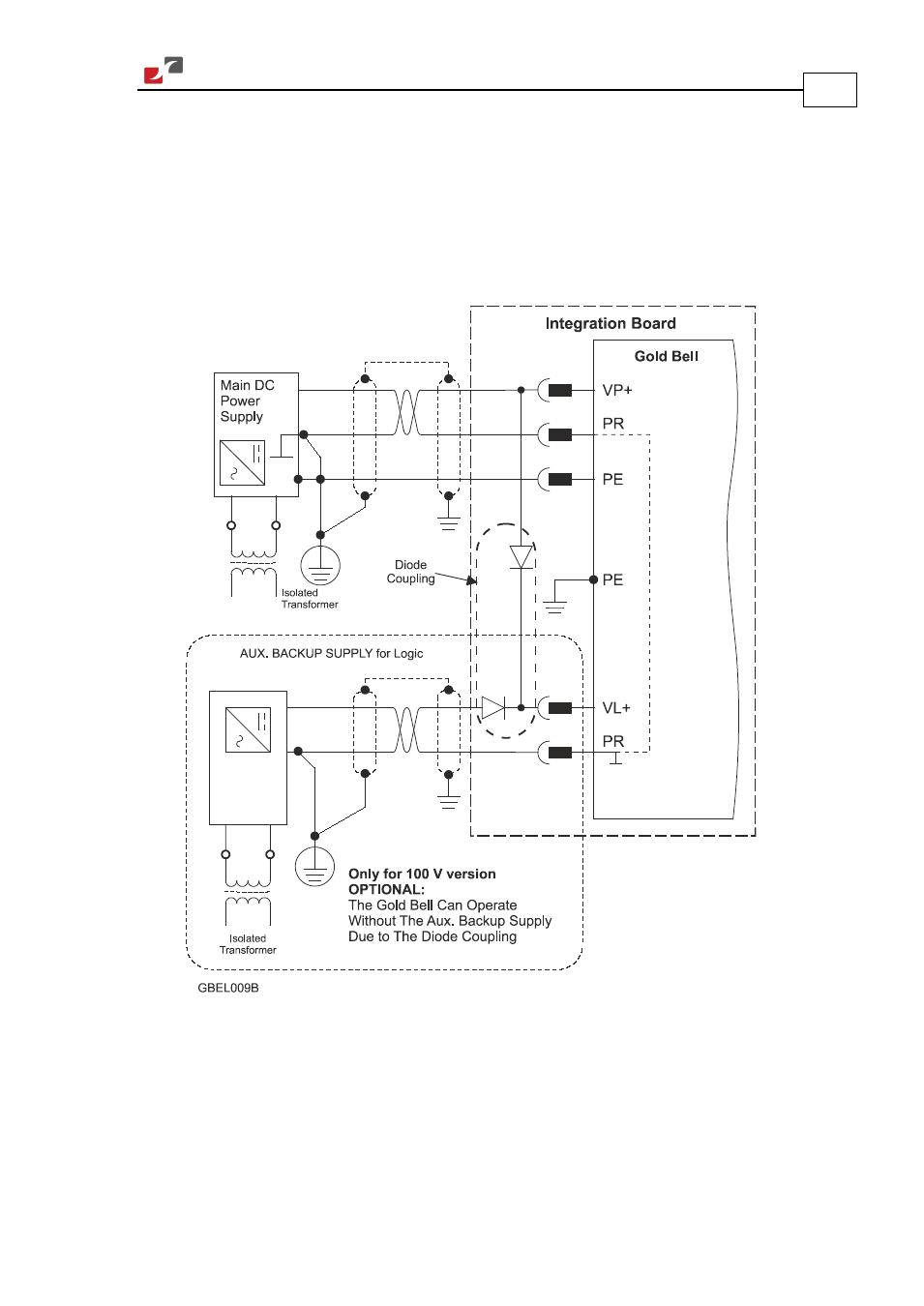

Figure 10: Shared Supply Connection Diagram
