Det-Tronics C7051B, C UV Flame Detector - Manual (Page 13)

11 95-8256
(A)
(B)
(C)
1.48 (37.59)
(D)
B1475
ALL CONTROLLER CAGES REQUIRE
A MINIMUM OF 10.12 INCHES (257.1 MM)
DEPTH CLEARANCE
(E)
RACK PART NUMBER CONTROLLER
TYPE 005269-XXX POSITIONS FOR: HT: DIM. (A) DIM. (B) DIM. (C) DIM. (D) DIM. (E) WEIGHT
FIRE GAS INCH MM INCH MM INCH MM INCH MM INCH MM LB KG
4U –001 8 16 4U 19.00 482.6 18.30 464.8 17.36 440.9 4.00 101.6 6.97 177.1 9.3 4.2
4U –002 6 12 4U 15.06 382.6 14.36 364.7 13.42 340.9 7.6 3.5
4U –003 4 8 4U 11.13 282.6 10.43 264.9 9.49 241.1 5.9 2.7
4U –004 3 6 4U 9.16 232.7 8.46 214.9 7.52 191.0 5.1 2.3
4U –005 2 4 4U 7.19 182.7 6.49 164.9 5.55 141.0 4.2 1.9
4U –006 1 2 4U 5.22 132.6 4.52 114.8 3.58 90.9 3.1 1.4

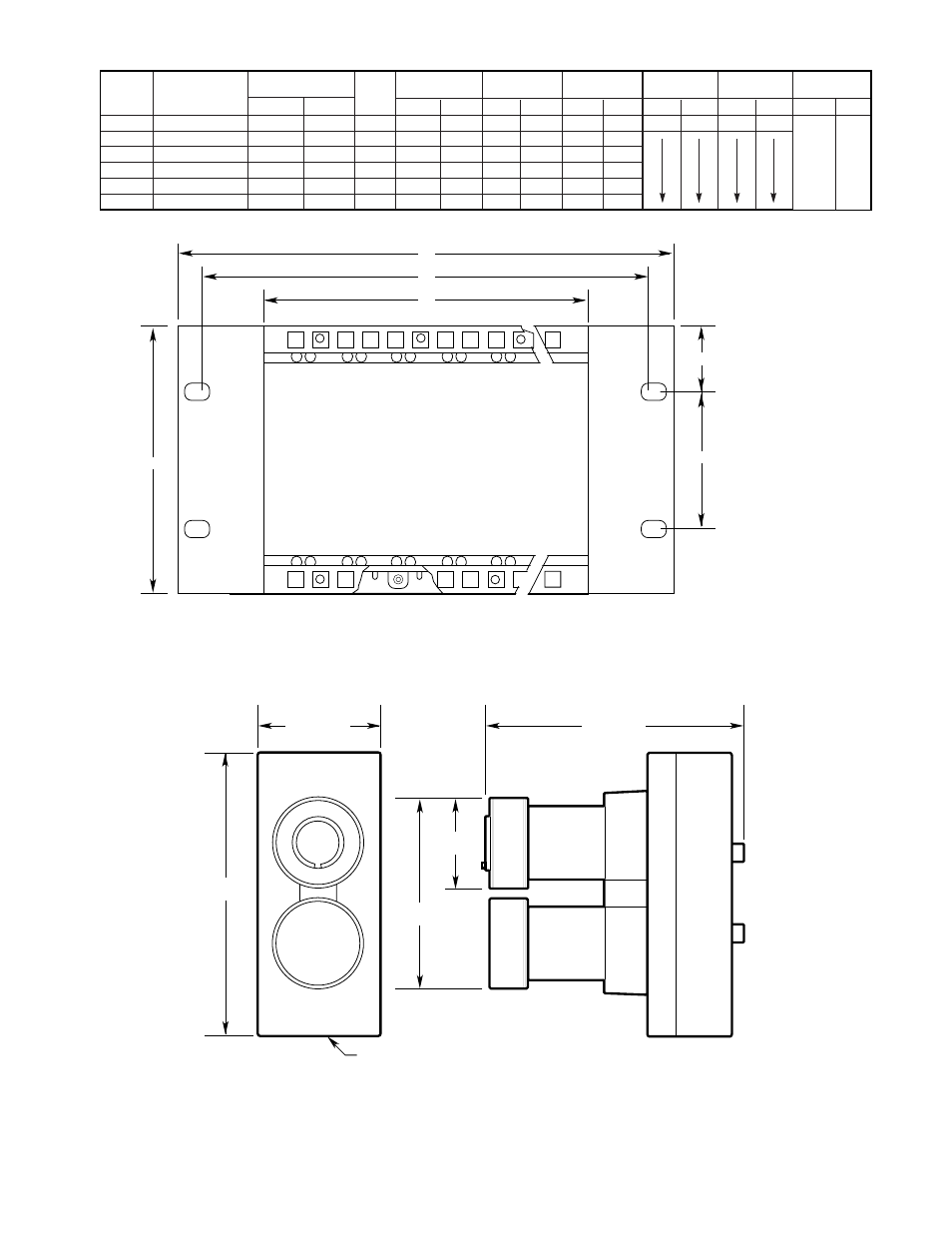

Figure 9—Dimensions of Q4004 Mounting Cage in Inches (Millimeters)
C1047
3.38 (85.8 MM) 7.11 (181 MM)
7.81
(198 MM)
2.5 DIA.
(64 MM)
5.25
(133 MM)
CONDUIT ENTRY 3/4 NPT OR 25 MM
Figure 10—Dimensions of C7051 Detector in Inches (Millimeters)
