Det-Tronics U7602E Unitized UV Flame Detector/Controller User Manual
Page 15
95-8465
13
INGRESS PROTECTION—
NEMA/TYPE 4X (indoor and outdoor use).
IP66.
VIBRATION—
Meets MIL-STD-810C vibration requirements.
DIMENSIONS—
See Figures 12 and 13.
WIRING—
14 AWG (1.5 mm2) to 22 AWG (0.3 mm2) shielded
cable is recommended.
CONDUIT ENTRIES—
Two conduit/cable entries per detector. Two sizes
available: 3/4 inch NPT or 25 mm.
SHIPPING WEIGHT (A
PPROXIMATE
)—
Aluminum:
4.75 pounds (2.14 kilograms).
Stainless Steel: 10 pounds (4.54 kilograms).
COVER LOCKING CLAMPS (BASEEFA)
4.5 (114.3)
4.375
(111.1)
4
(101.6)
5
(127)
2.5
(63.5)
9 (228.6)
A1844
CONDUIT/CABLE ENTRY (2)

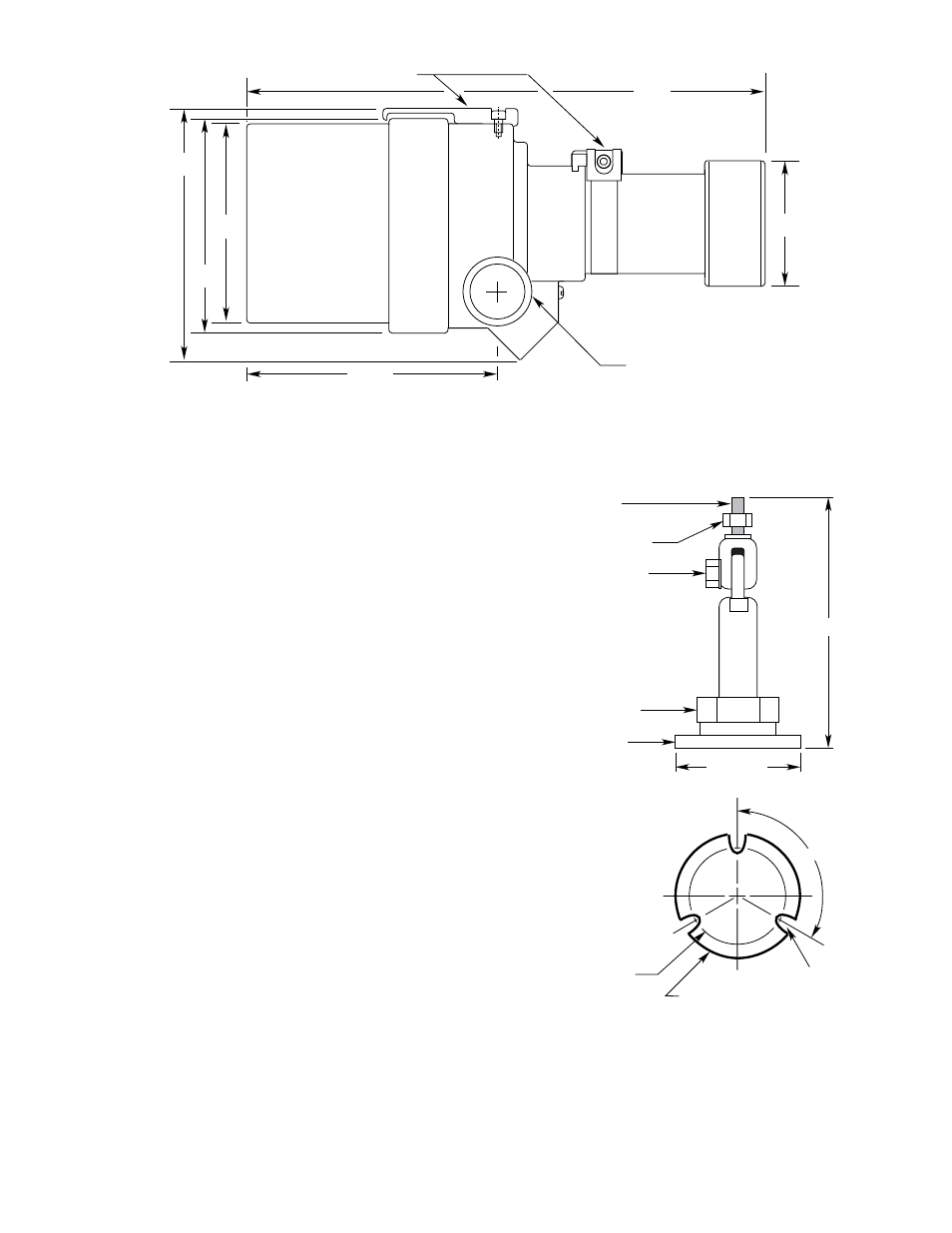

Figure 12—Dimensions of U7602E in Inches (Millimeters)
5-1/4 INCHES
(133 MM)
2-1/2 INCHES
(64 MM)
MOUNTING BASE
1/2 INCH NUT USED TO ADJUST
ELBOW TO DESIRED ANGLE
1-3/8 INCH NUT USED TO ROTATE
SWIVEL/DETECTOR ASSEMBLY
TO DESIRED POSITION
3/4 INCH NUT USED TO SECURE
DETECTOR TO SWIVEL MOUNT
DETECTOR SCREWS ONTO
SWIVEL MOUNT HERE
A1467
2–1/2 (64 MM) DIA.
0.25 (6.4 MM) (3)
120
°
±
2
°
(2)
2.00 (50.8 MM) DIA.
Figure 13—Dimensions of Mounting Bracket in Inches (Millimeters)
