FlexSonic ™ Acoustic Detector
AC100 Sensor
ATX10 Transmitter
2.5 © Detector Electronics Corporation 2013 Rev: 6/13 95-8657
Overview
The FlexSonic ™ Acoustic Detector is designed to
recognize the unique ultrasonic frequency content
of events such as gas leaks. When a pressurized
gas leak occurs, the frequency content of the sound
being generated extends beyond the audible portion
of the spectrum into the ultrasonic region (above 20
kHz). The intensity of the sound generated by a leak is
determined by several factors including pressure, leak
rate, gas viscosity, and distance from the leak source.
Acoustic detection is less susceptible to environmental
factors (such as high winds) that can degrade the
ability of traditional sensing technology based on gas
concentration to detect the presence of a leak. When
combined with line of sight and/or point gas detectors,
the additional layer of protection provided by the
FlexSonic Acoustic Detector offers the ultimate solution
for gas leak detection.
Features
• Long range response
• Nearly instantaneous response
• Gas leak detection without contact
• Adjustable detection range
• Superior false alarm discrimination
• Patented technology
• Suitable for harsh outdoor applications
• Stand alone capability from the ATX10 Transmitter
• 4-20 mA output combined with HART
• Globally approved explosion-proof 316 stainless
steel housing
• Wide acoustic dynamic range
• Integrated Acoustic Integrity Check (AIC)
• Can detect small gas leaks at or below 6 bar (87 psi)
• Extensive data logging with removable storage
BeneFits
• Ideally suited for use in open or highly ventilated
areas where traditional detectors are limited due to
dilution
• Single detector can cover a large area
• Resistant to corrosion from most commonly
encountered environmental contaminants
• Minimum maintenance required
• No routine calibration required
• Not affected by poisoning
• Functions with all gas types
• Fail-safe operation
• Certified SIL 2 Capable

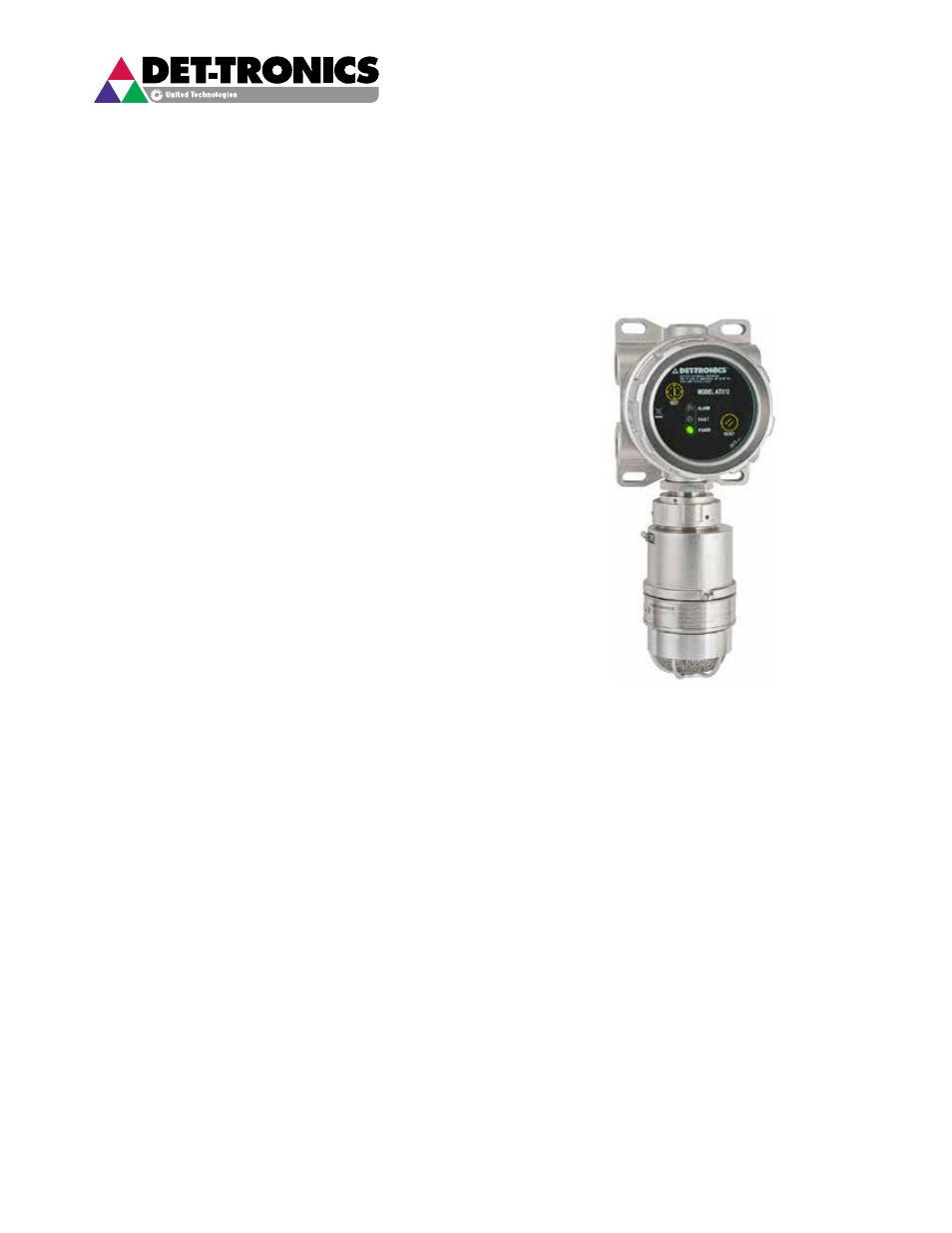

AC100 Sensor
ATX10 Transmitter
