36

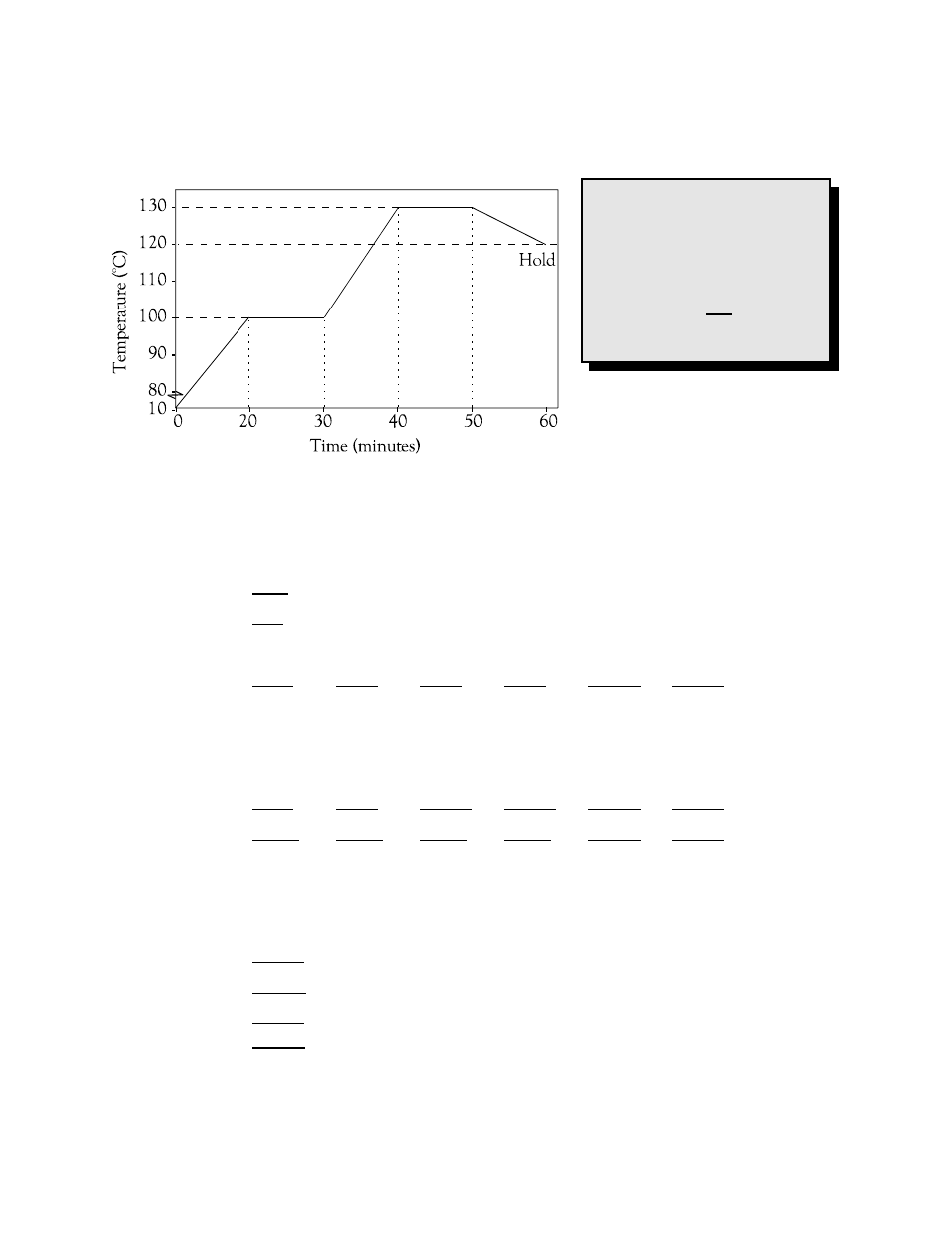

Figure 8. Example Temperature Profile
NOTES: HHMM
(hours/minutes) and
EC selected
in the tune mode. No event
outputs are being used. Soak-
Deviation limit = ±7
EC (also
assured soak limit). Hold at last
setpoint. Ramp and soak times
of zero in any one segment
ignores remaining segments.
Example 3 - Program Mode
Follow the characteristic curve listed below.
Display Setting(s)
HL 150
PRO- 1
SEG- 1 2 3 4 5 6
RAMP 0020 0010 0010 0000 0000 0000
E-1 * _____ _____ _____ _____ _____ _____
E-2 _____ _____ _____ _____ _____ _____
E-3 _____ _____ _____ _____ _____ _____
TEMP 100 130 120 0000 0000 0000
SOAK 0010 0010 0001 0000 0000 0000
E-1 _____ _____ _____ _____ _____ _____
E-2 _____ _____ _____ _____ _____ _____
E-3 _____ _____ _____ _____ _____ _____
SOAK-DEV 7
GOTO End
REPEAT TIMES 1
HOLD Yes
* Events E-1, E-2, and E-3 will not be shown if they are not turned on.
