CHAPTER 4 OPTIONS
4-25

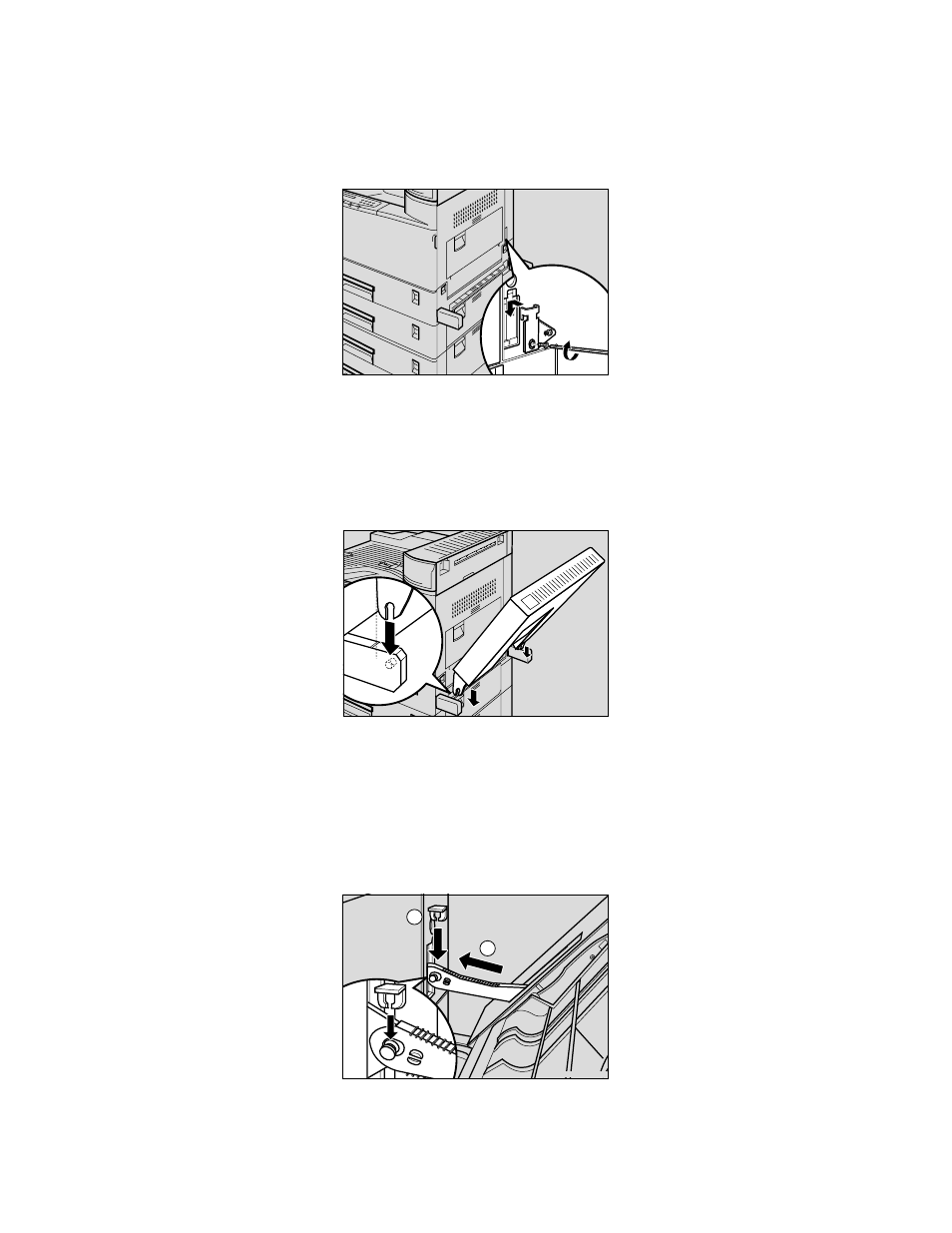

☛ ☛ ☛ ☛ 10.
Fit the brackets of the hook into the holes inside the cover that was removed
in Step 9. Use the Allen Key to fasten the screw to secure the hook to the
printer.
ZAEP231E
Fig. 4-40
☛ ☛ ☛ ☛ 11.
Lower the duplex unit so that the groove in each arm of the unit locates onto
the pin inside the holder as shown in the illustration.
ZAEP250E
Fig. 4-41
☛ ☛ ☛ ☛ 12.
Locate the hole in the support bar of the duplex unit onto the pin on the
hook that was attached in Step 10 (
①), and secure the bar by attaching the
hook holder to the joint (
②).
ZAEP260E
1
2
Fig. 4-42
