COATS Kit 85606689 Leverless Bead Lifter User Manual

Page 6

6 • Important:

Always read and follow the instructions.

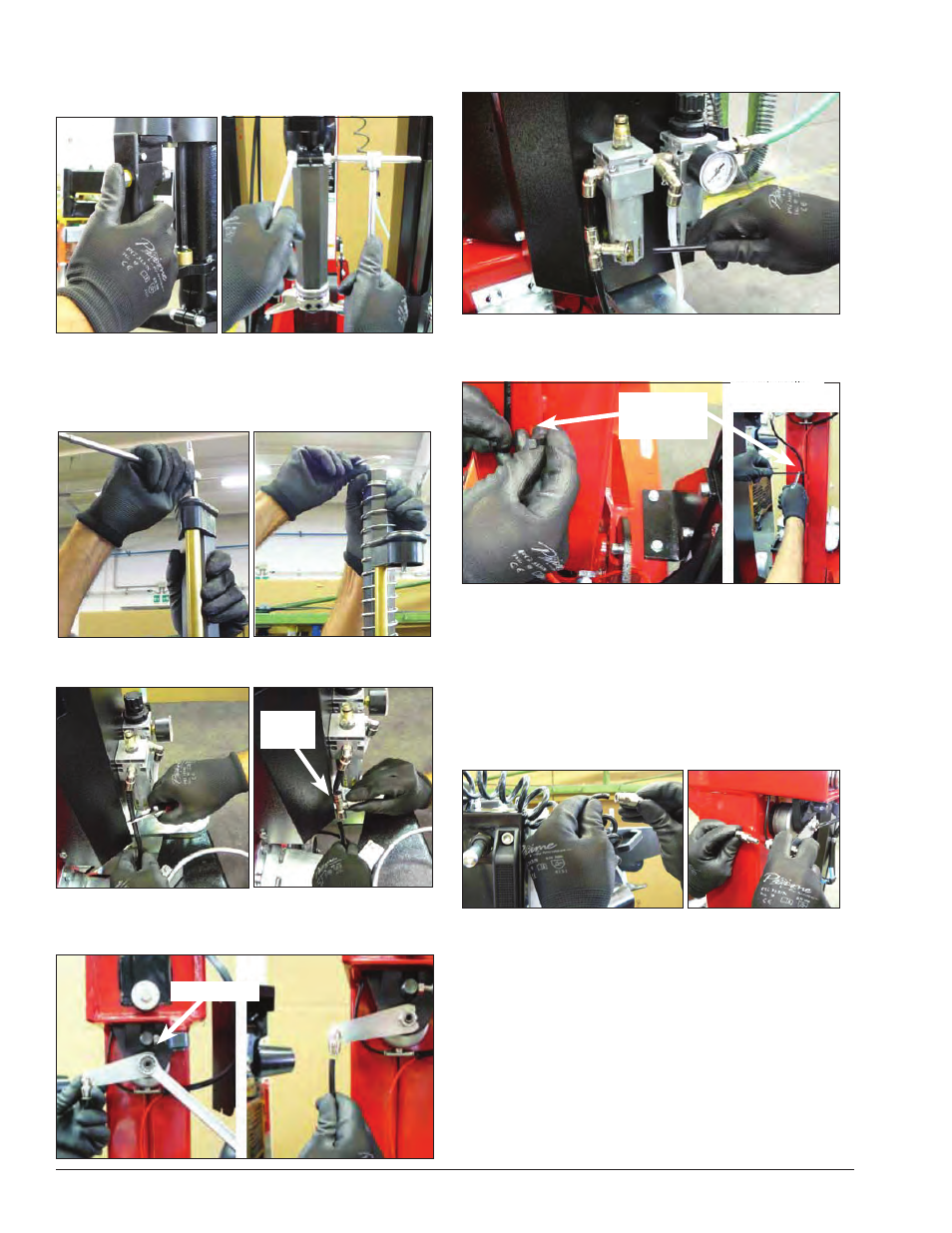

9024 Series Installation

Lower vertical slide shaft about 9-inches. and lock

bar. Tighten hex screw to lock bar.

Disconnect the electrical power, close the air lever

cock and bleed the air circuit completely.

Release hex screw of pipe locking knob. Insert kit

spring and hex washer and tighten hex screw back on.

Cut the black hose, as in picture, and insert the

union delivered with the kit.

Place the plate, complete with unions, on the

locking plate screw. Attach nut and tighten. Then insert

hose into the L-shaped union.

Insert the other end of the hose into the T-union

previously installed (step 4).

Using two hose clamps from kit, attach the hose

at the end of the guide placed behind the post. Cut the

over length and secure with ties.

Remove the mount/demount head. Then release

the tool locking screw using hex wrench. Keep screw

and washers.

Next install the leverless bead lifter to the shaft

following the 50/70 series installation step 11.

10.

Insert the quick union into the free end of the

coil hose and then insert this quick union into the

female union on the plate (from step 5).

11.

Re-connect air supply to machine. Inspect and

correct leaks if found. Open the air lever cock to send

pressure to circuit.

12.

Move the bar lock selector to middle position.

You will hear an air bleed.

13.

Release the hex bush screw to release the oper-

ating arm.

14.

Be sure to perform the steps for the Leverless

Bead Lifter Adjustment Procedure on page 7.

Use Hose

Clamps To

Route Hose

Attach Plate

Install

Union
