COATS Robo-Arm™ Assembly • 7

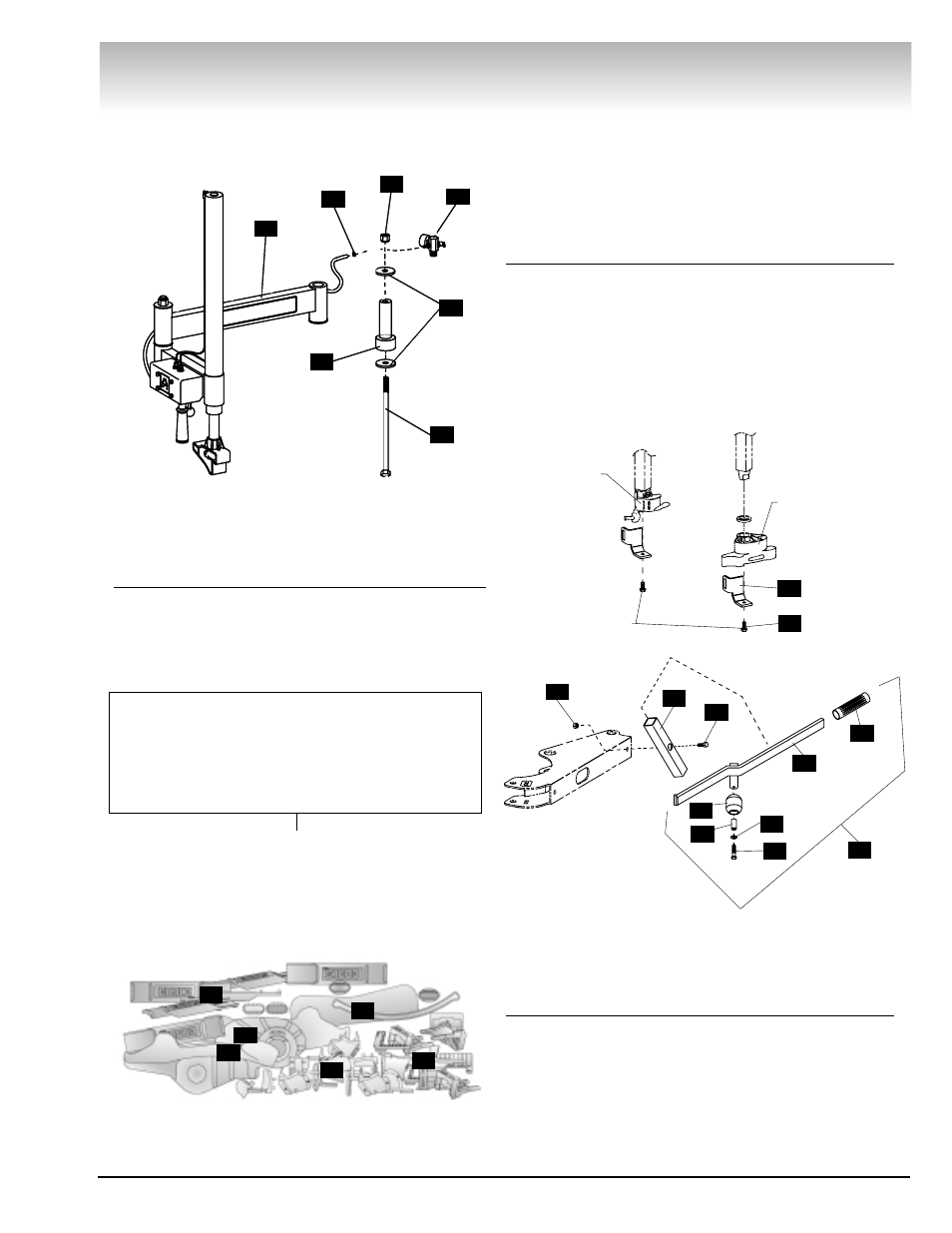

Parts Identification
Kit 184177 includes the following Robo-Arm™ and Accessory Kits
Robo-Arm™ Kit 184045
Part
Item No. Qty. Description
1 184058 1 Robo-Arm™ Assembly
2 101428 1 Hose Clamp, 1/4" ID Hose
3 182016 1 Nut, Hex Nylock, 3/4-10
4 184059 1 Manifold/Gauge/Valve Assembly
5 100994 2 Washer, .812 ID x 2 3/4 OD x 3/8"
6 184208 1 Pivot Pin\Spacer
7 183635 1 Hex HD Cap Screw, 3/4-10 x 14"
Bead Roller Tool Kit 184052
Part
Item No. Qty. Description
8 183665 1 Tool Bracket, Receiver
9 106302 2 Hex HD Cap Screw 3/8-16 x 7/8"
10 106303 1 Hex Nut, 3/8-16
11 183666 1 Storage Tube
12 183658 1 Bead Roller Tool Assembly
13 120332 1 Handle Grip
14 183659 1 Handle
15 183664 1 Roller
16 183663 1 Spacer
17 112310 1 3/8" Flat Washer
18 006101 1 Hex HD Cap Screw 3/8-16 x 2"
Nylon Duckhead, and Rim Clamp Bootie
Kit 184054
Part
Item No. Qty. Description
19 183605 1 Lift Tool Bootie, Pkg. of 10
20 183606 1 B.L. Bootie, Pkg. of 2
21 183846 1 Nylon Duckhead Kit
22 182960 1 Nylon Duckhead
23 182963 1 Steel Duckhead Bootie, Pkg. of 12
24 183604 1 Rim Clamp Bootie, Pkg. of 10
Robo-Arm™
1
2
3
4
5
6
7
10
11
12
13
8
9
9
14
15
16
17
18
20
21
22
23
24
Plastic Duckhead
(not supplied)
Torque to
60-70 ft. lbs.
Steel Duckhead
(not supplied)
Bead Roller Tool
19
