COATS 1175 Series Balancer User Manual
Page 8
2 •
Important: Always read and follow the instructions.

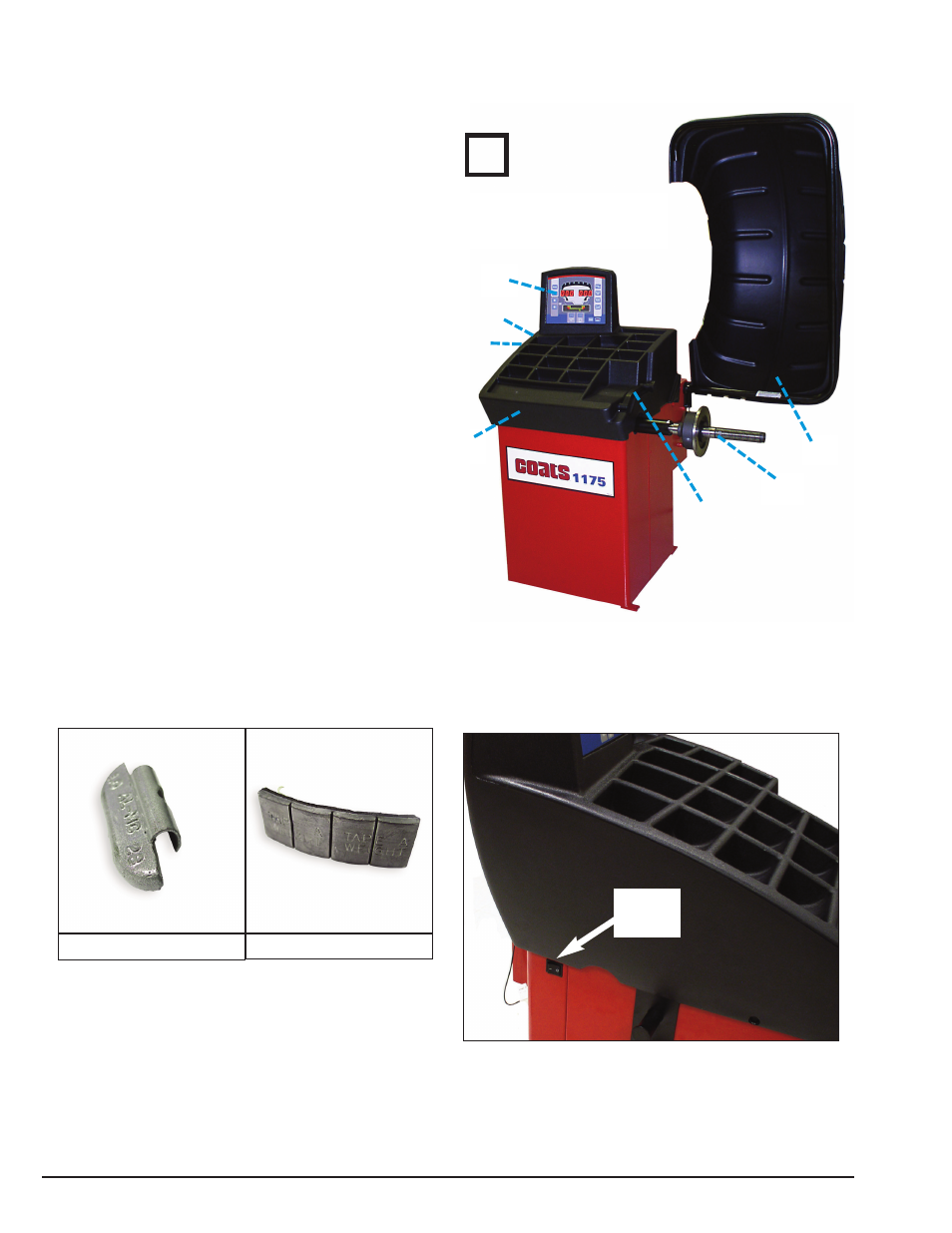

Principle Operating Parts
Ạ
ạ
Ả
ả
ấ
Ấ
Ầ
Do It Now!
Now is a good time to fill out
the Owner’s Registry Card.
✓
Note: Wheel weights are referred to as Clip-on or
Tape-A-Weight™. Figure 3 shows an example of each
weight.
Corrective Weight Examples: For Best Results, use BADA
®
Brand Wheel Weights.
Power Switch
The ON/OFF switch location is on the side of the bal-
ancer; below the weight tray.
On/Off Switch
ON/OFF
Power
Switch
Clip-on Weight
Tape-A-Weight™
Know Your Unit
Compare this illustration with the unit before placing it
into service. Maximum performance and safety will be
obtained only when all persons using the unit are fully
trained in its parts and operation. Each user should learn
the function and location, of all controls.
Prevent accidents and injuries by ensuring the unit is
properly installed, operated and maintained.
Ạ
Control Panel or Video Display Panel
ạ
Plug (back of machine)
Ả
ON/OFF
ả
Weight Tray with Pockets for Corrective Weights
Ấ
Offset Arm, Measures A & D of Tire/Wheel
(shown in home position)
ấ
40mm Shaft
Ầ
Hood Guard
