7.6.5
Sensor Calibration Label
The sensor band is shipped with two labels enclosed with it. The label
lists the sensor part number, serial number, date of manufacture and
three calibration factors. This information will be entered into the
transmitter during setup (section 11.1.1). Affix one of the labels to the
outside of the access panel of the sensor cover as shown below.
The second label should be installed on the inside of the transmitter
cover.
Note:
Sensor band information is also found on a label on the sensor
cable next to the sensor cable connector.

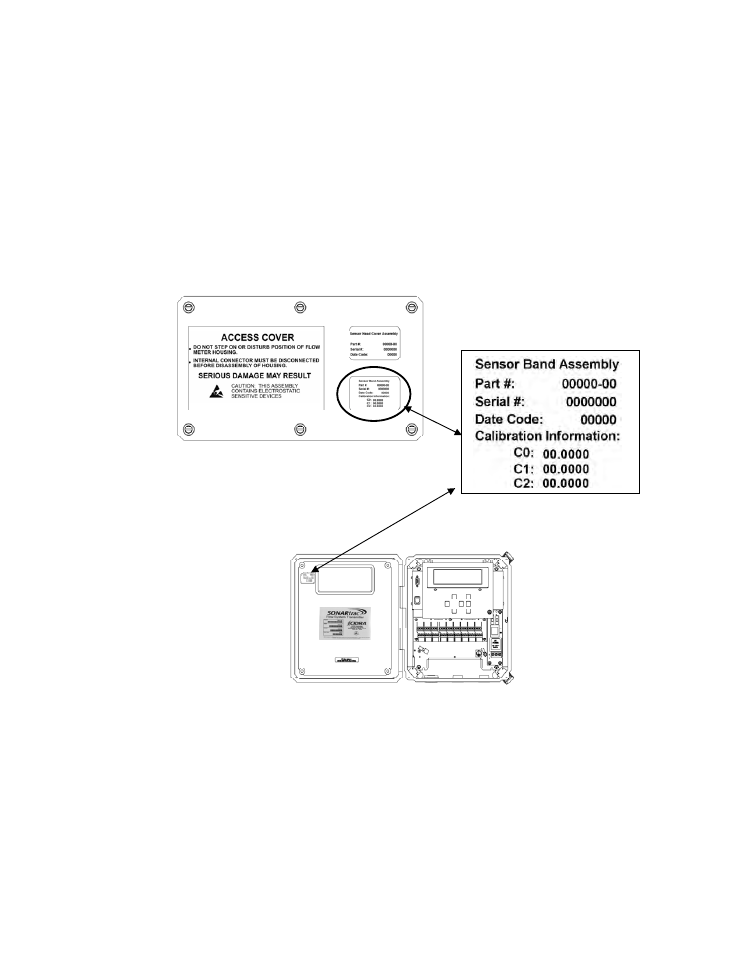

Figure 27
Sensor Calibration Label
