__________ Operating Instructions

Operation: Step by Step
Operation: Step by Step
12. There are 2 removable
auiliary rinse spray pipes
in the auxiliary rinse section.
13. Make sure the upper and
lower auxiliary rinse spray
pipe gaskets are in place.

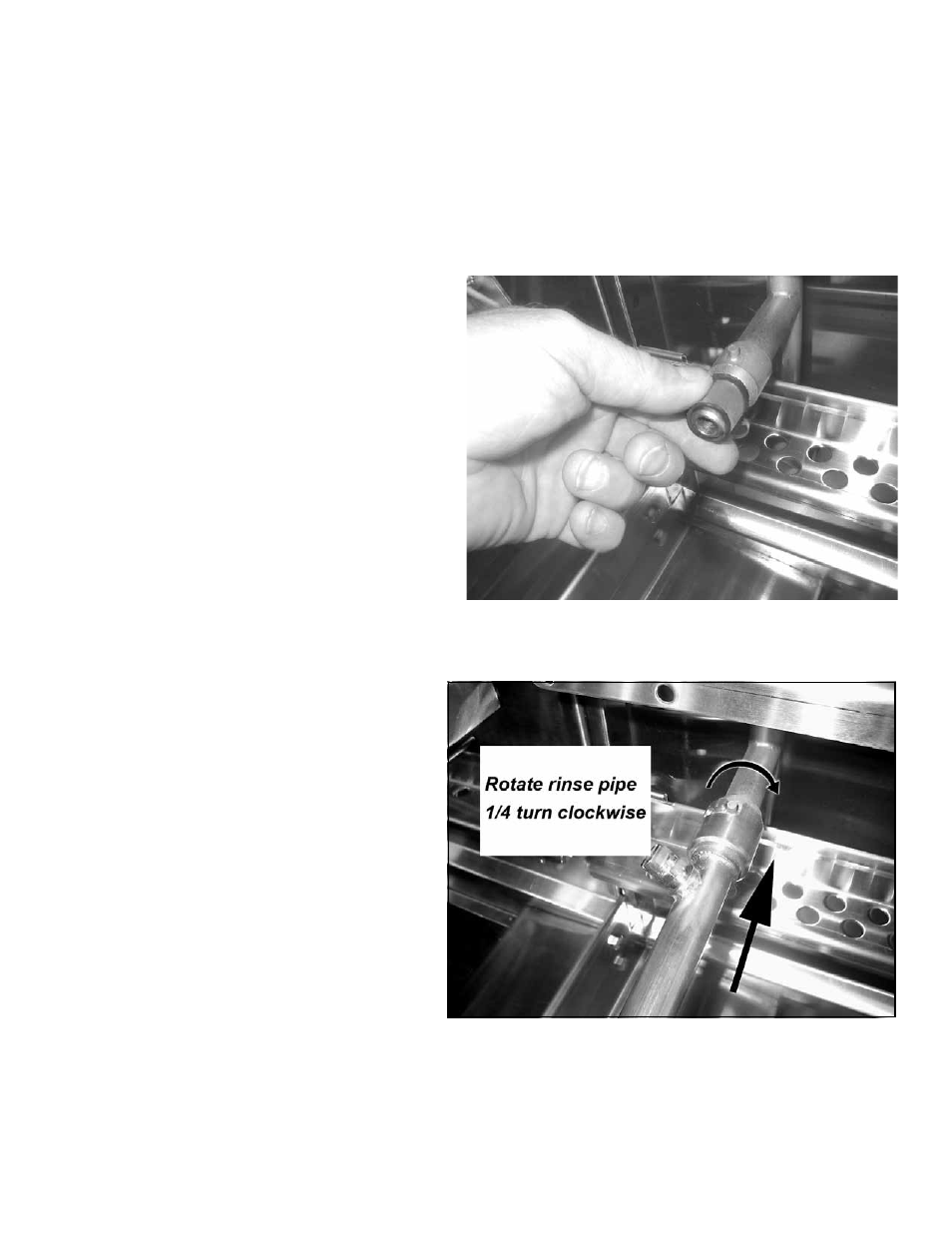

14. Position the spray pipe
so the rinse nozzle points
toward 10 o'clock.
15. Push the rinse pipe
forward.
16. Turn the auxiliary rinse pipe
1/4 turn clockwise to
lock it in place.
Note:
The final rinse pipes are permanently installed
and do not require assembly.
