Online manual not for resale purposes – BLITZ Toyota Celica Compressor System User Manual
Page 25

(2

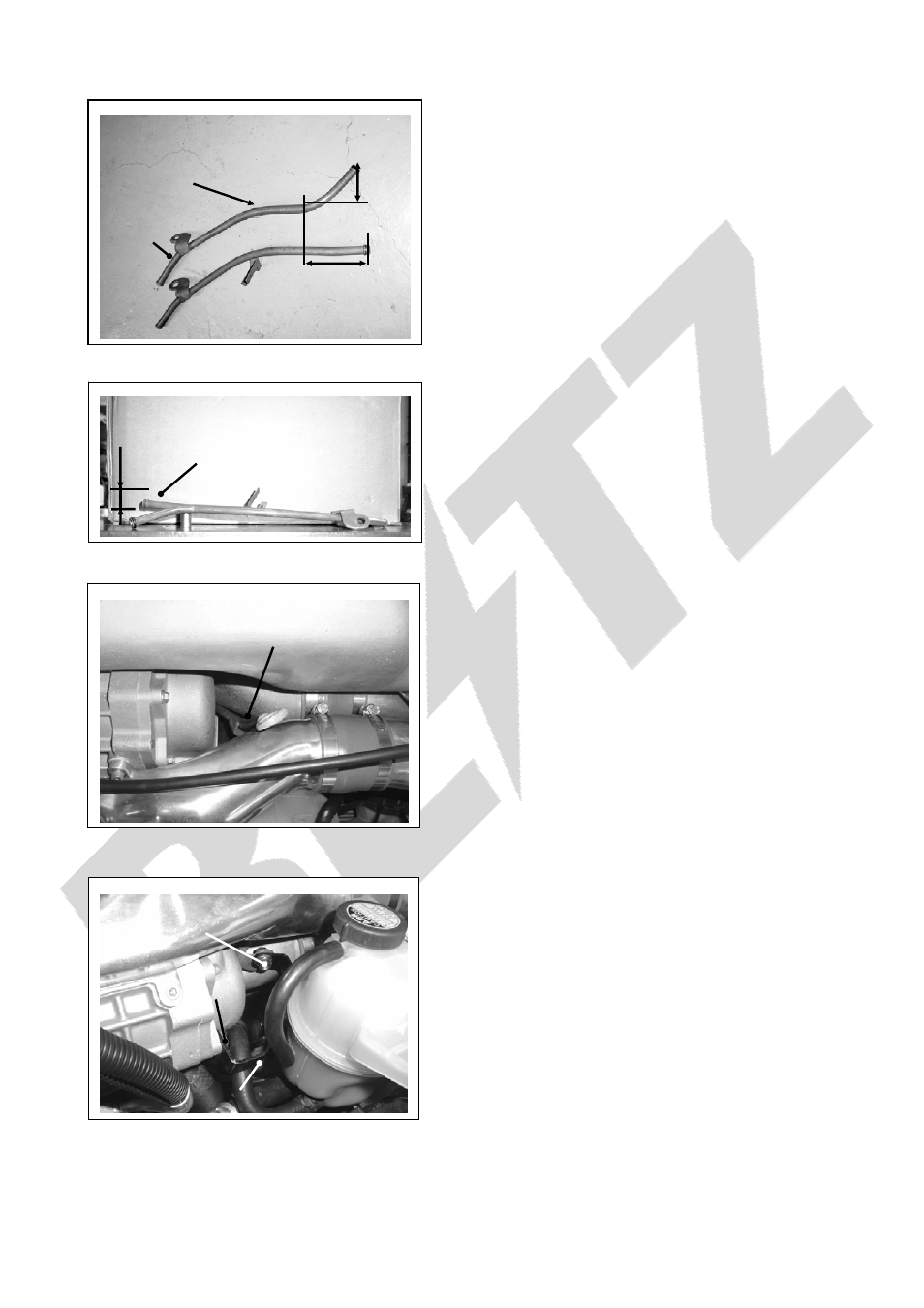

5)Installation of oil level gauge.
WARNING: All images and text in this manual is the property of Blitz Co., Ltd. (Japan). No parts of this manual may be
reproduced, stored in retrieval systems, or transmitted in any way without prior written permission of Blitz Co., Ltd. (Japan)
After
54mm
80mm
Cut off
①
Cut off the stay that used to attach with
the genuine oil level gauge guide.
※
Be careful not to damage the pipe.
※
Make sure to wear protective clothing
and safety goggles.
※
Make sure to treat the cut surface
with anticorrosive.
②
Make the changes to the genuine oil
level gauge guide as shown in the
figures.
Before
20mm
※
The figures and the dimensions are
just a rough guide; make the final
adjustments within the engine room.
※
Make sure to check if the oil level
gauge guide goes through the pipe
every time you adjust it
Oil level gauge
guide.
③
(C.17) Level gauge guide stay.
Install the oil level gauge guide using
the (C. e) flange bolt M8 X 16 (1P) and
(C. p) flange nut M8 (1P).
④
Insert the oil level gauge.
(C. e) Bolt
(C. p) Nut
(C. 1) Use the
compressor’s
bolt to tighten
h
(C. 17) Level
Gauge Guide
St
