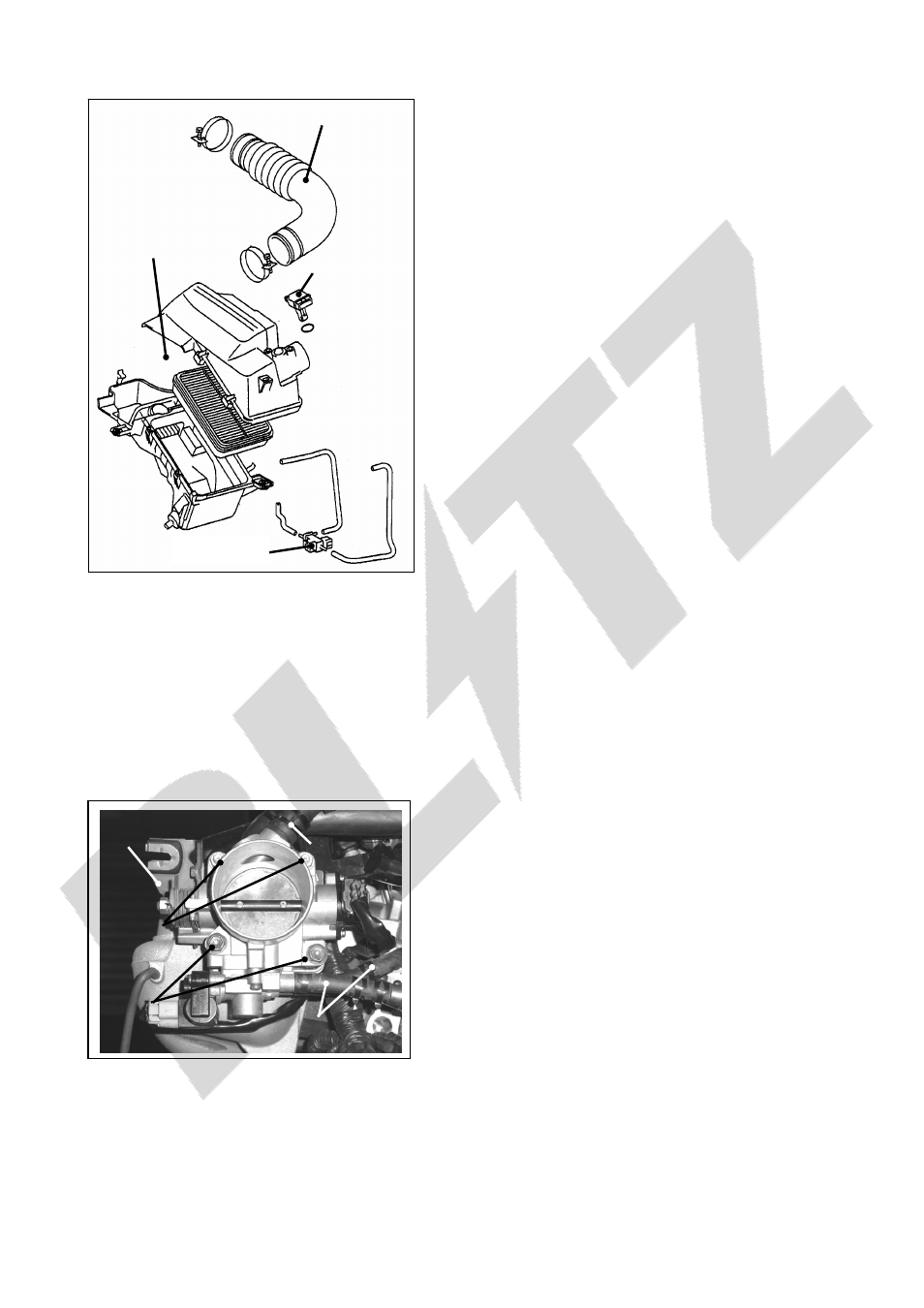

(7) Removal of the genuine air cleaner.
※

Refer to the (C. 62) SUS Power LM kit) for

installation.

①

Disconnect the air flow sensor and the

VSV connector.

②

Pull off (disconnect) the VSVφ4 hose

from the intake manifold.

③

Remove the PCV valve and the stay

which are attached behind the air
cleaner box.

④

Remove the air cleaner assembly and the

air cleaner hose from the vehicle.

⑤

remove the air flow sensor from the

genuine air cleaner box.

※

Be careful not to damage the sensor’s

O ring.

⑥

Secure the VSV connector tightly with a

lock tight that is supplied with the LM
kit.
※

Refer to the (C. 62) SUS Power
installation manual) for the location
to secure that VSV connector.

Air cleaner hose

Air Cleaner assembly

Airflow sensor

PCV valve

Water bypass hose

Throttle cable

Ventilation

Hose No. 1

Nut

Bolt

(8) Removal of the throttle body

①

Remove the throttle cable.

②

Remove the throttle cable bracket by
loosening the bolts (2P).

③

Pull off (disconnect ) the No. 1 ventilation

hose 1 from the throttle body.

④

Pull off (disconnect) two water bypass

hoses from the throttle body.

⑤

Remove two connector.

⑥

Remove the throttle body assembly and

the gasket.
