Page 26: 5/16” band-lok tool
Document # I17794 Rev D
© Copyright
BAND-IT-IDEX, Inc. 2009
All rights reserved
www.BAND-IT-IDEX.com
BAND-IT-IDEX, Inc.
A Unit of IDEX Corporation
4799 Dahlia Street Denver, CO 80216-0307 USA
P: 1-800-525-0758 F: 1-800-624-3925
26 of 28
IT4000-AB
5/16” Band-Lok
Tool

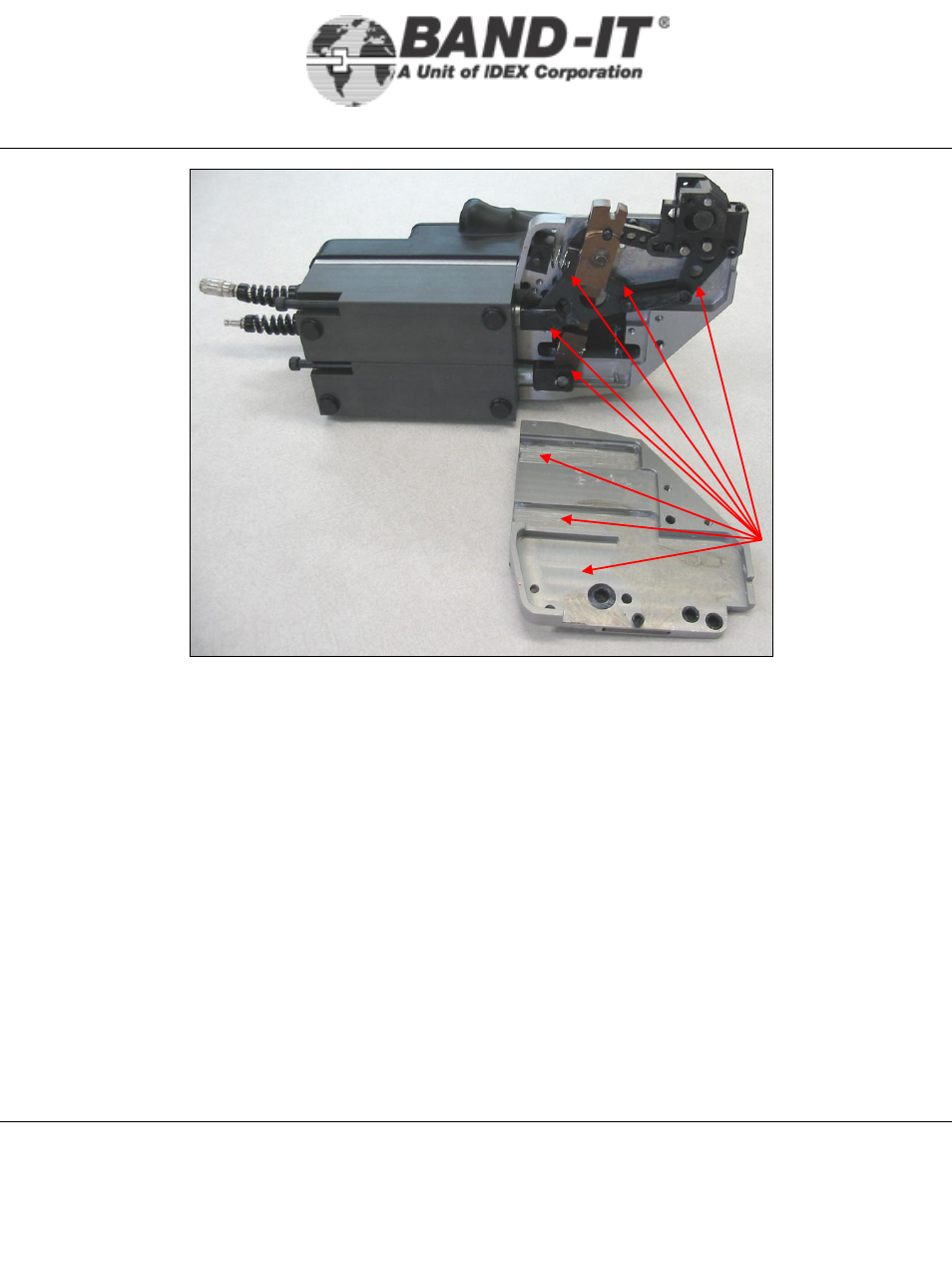

4) Lubricate the removed cover as shown with red arrows above. Also,
lubricate the tool body, linkage and Tension Block Assembly as shown on page 27.
5) Inspect all mechanical linkage for lubrication, proper placement and refit cover.
6) Secure the tool side cover by inserting and tightening (2) #10
– 32 X 4”
length cap screws through the Cylinder Housing and into the Cover. Apply
a light dab of Blue Loctite to one or two threads to prevent loosening during
operation.
Maintenance
