Page 10: 5/16” band-lok tool
Document # I17794 Rev D
© Copyright
BAND-IT-IDEX, Inc. 2009
All rights reserved
www.BAND-IT-IDEX.com
BAND-IT-IDEX, Inc.
A Unit of IDEX Corporation
4799 Dahlia Street Denver, CO 80216-0307 USA
P: 1-800-525-0758 F: 1-800-624-3925
10 of 28
IT4000-AB
5/16” Band-Lok
Tool

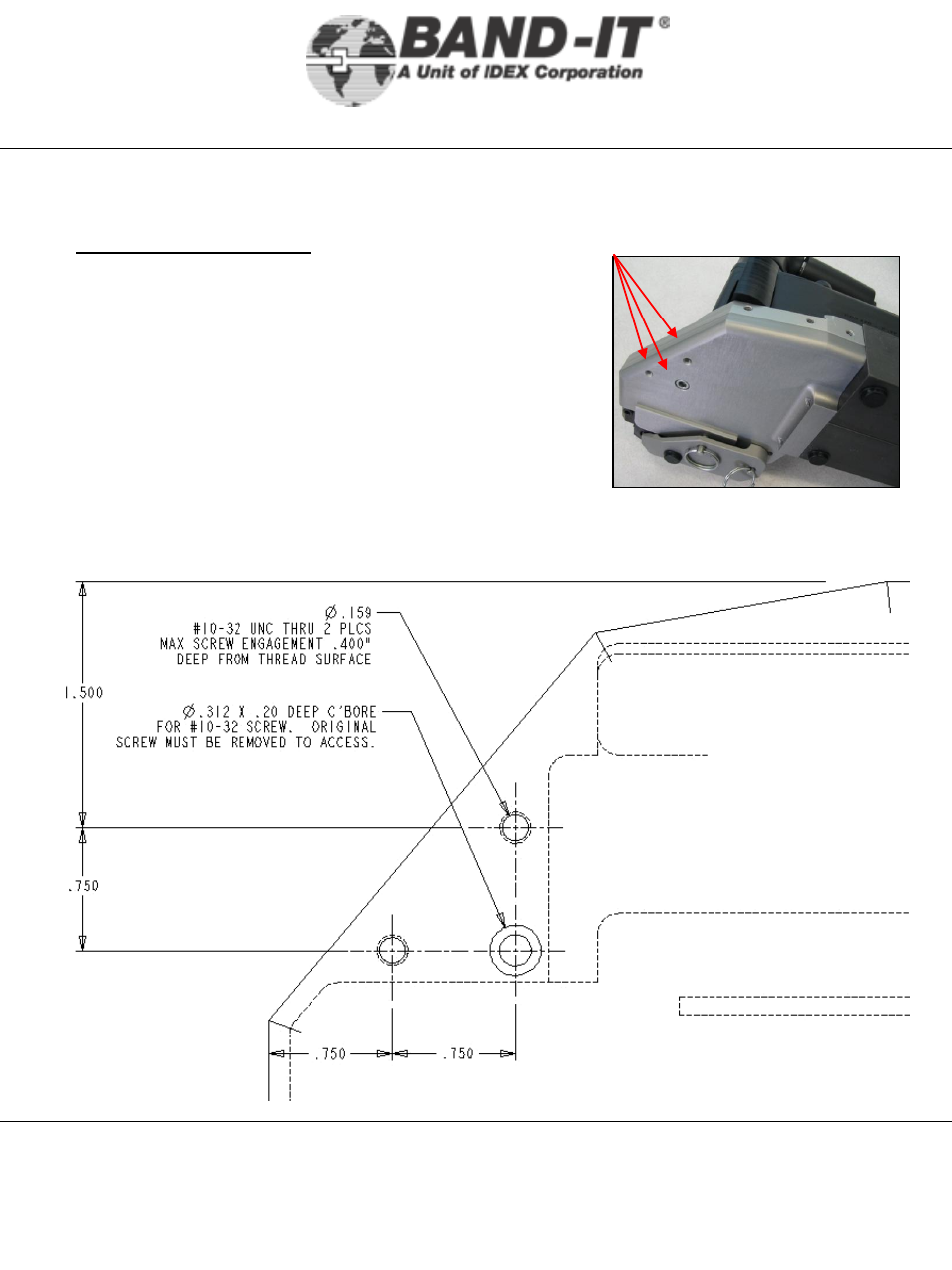

Three additional fixture mounting holes are available
to assist with mounting the IT4000. Thread size is
#10-32 for each of the holes. Usable thread depth is
.400” for two of the three fixture holes. One hole is
utilized to attach and lock the tool body halves
together. This hole may also be used for fixturing,
provided the #10-32 cap screw is replaced with a
similar threaded screw with appropriate thread
length secure the two halves together in addition to
fixturing.
Note: Hole locations
are .750” to
centerline of holes
and edge of tool as
indicated by the
detail to the left.
Fixture Mounting Locations
Fixture Locating Points
