B&W Trailer Hitches RVK3600 - Manual

B&W Trailer Hitches
1216 Hawaii Road / PO Box 186
Humboldt, KS 66748
P:620.473.3664
F:620.473.3766
RAM OEM Mount System Installation Instructions
25,000 LBS. TRAILER WEIGHT
6,250 LBS. TRAILER TONGUE WEIGHT Call or Email us for Installation Support
[email protected] www.turnoverball.com
Model 3600
WARNING
Failure to comply with the safety information in these
instructions could result in serious injury or death.
Read all installation and operating instructions along
with all labels before using this product.
Without proper knowledge, towing can be a
dangerous activity. Understand all the risks involved
with towing before proceeding. For information on
towing safety, see "The Trailer Handbook: A guide
to Understanding Trailer and Towing Safety" from
the National Association of Trailer Manufacturers,
www.NATM.com.
Do not modify this product in any manner. Doing so
could alter its integrity and lead to a loss of attachment
between the trailer and the tow vehicle.
Regularly check that all bolted connections are at the
correct torque specification. A visual inspection should
be performed before each time you tow. Do not exceed tow or tongue rating of coupler, tow or
tongue rating of hitch, or tow or weight ratings of truck
or trailer. See vehicle and trailer manufacturer
information for ratings. Exceeding these ratings may
cause damage to towing components or loss of
attachment between the trailer and truck.
Adding components to the chassis of any vehicle can
be hazardous. There is potential for damage to
vehicle, injury from tool usage and many other
hazards. This installation must be completed by
someone who is aware of the hazards involved. This
person must be knowledgeable of proper safety
procedures for a vehicle installation of this nature, and
for usage of the equipment required to perform the
installation.
REQUIRED TOOLS
Installation of the Companion hitch requires a large torque wrench capable of
measuring 80 ft−lbs, a 3/4" socket, a 7/16", and 9/16" socket or wrench, a 7/32"
allen wrench and a pair of needle−nose pliers.

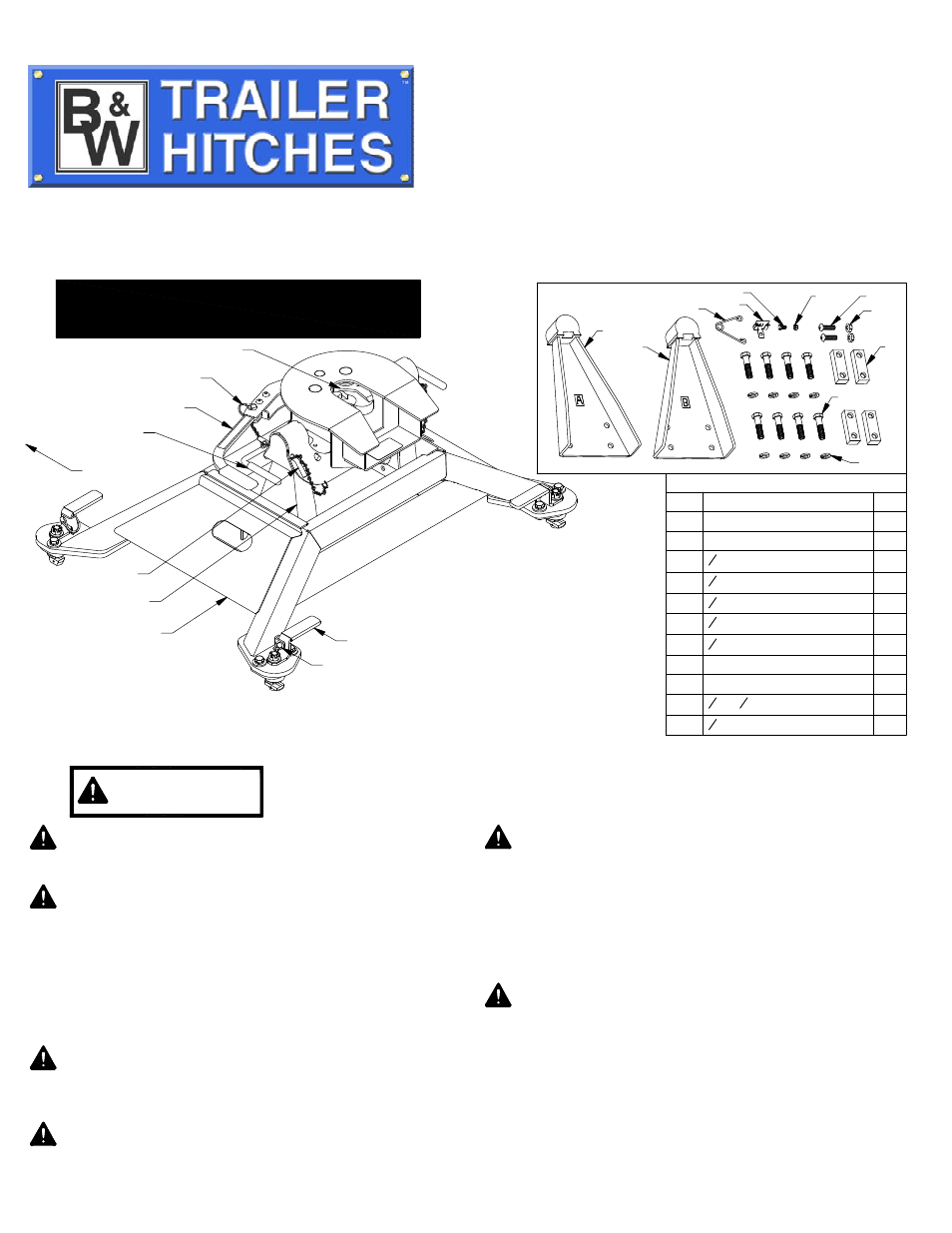

PARTS LIST
QTY DESCRIPTION ITEM
1 Pivot Arm A 1
1 Pivot Arm B 2
8 1
2
" Split Lock Washers 3
8 1
2
" X 2" Hex Cap Screw 4
4 3
4
" Threaded Block 5
2 3
8
" Button Head Cap Screws 6
2 3
8
" Lock Nut 7
1 Wire Torsion Spring 8
1 Mounting Clip 9
1 1
4
" X 1
2
" Cap Screw 10
1 1
4
" Finish Nut 11
COUPLER JAWS
COUPLER CAM
HANDLE SAFETY PIN
COUPLER CAM HANDLE
SADDLE HANDLE
SADDLE
LOCKING PINS
PIVOT ARM
BASE ASSEMBLY
LATCH PIN
LATCH HANDLE
1
2
8
9
10
11 6
7
5
3
4
TRUCK CAB
