BEFORE INSTALLING

OVERHEAD LIFTING DEVICE

WARNING

Most trucks have FUEL LINES and/or BRAKE LINES and/or ELECTRICAL WIRES located along the frame rails where

B&W Turnoverball™ hitches install. Carefully examine the location of fuel lines, brake lines and electrical wires

BEFORE INSTALLATION. Be certain you will not damage fuel lines, brake lines or electrical wires when positioning

hitch components, drilling holes, tightening fasteners, and lifting and lowering the truck bed. The fuel tank vent,

located on top of the gas tank, can be easily damaged during the installation of the hitch components. Care must
be taken when positioning the front crossmember and center section components.

Warning

On Short bed trucks, BEFORE INSTALLING THIS HITCH, check for adequate turning clearance between the front of

all of your trailers and the truck cab.

Warning

DO NOT invert the ball in the socket when carrying heavy loads on 2 wheel drive trucks. The ball may hit the top of

the differential. Remove the ball from the socket before loading. A plug for the socket is available from B & W.

Turnoverball

TM

Gooseneck Hitch

Installation Instructions

Call or Email us for Installation Support

B&W Trailer Hitches

1216 Hawaii Road / PO Box 186

Humboldt, KS 66748

620.473.3664

800.248.6564

Fax:620.473.3766

[email protected]

www.turnoverball.com

An overhead-lifting device, such as chain falls, engine hoist, or cable come-a-long, can be used to lift the center

section of the hitch in place. Lower a loop of rope or chain through the 4” hole in the truck bed floor and attach

it to the latch pin in the round hitch receiver tube in the center section. Use the lifting device to raise the center

section until the round hitch receiver tube that protrudes from the center section fits in the 4” hole in the truck bed

floor. Maintaining upward pressure may facilitate fastening the crossmember to the center section, especially if the

truck bed floor has been distorted downward from heavy use. If you use an overhead-lifting device, it should be

disconnected before squaring the center section across the frame, installing the sideplates and torquing fasteners.

Model 1000R

Chevrolet & GMC (1988 - 1998)

1/2 3/4 & 1 Ton, Long Bed Trucks

Chevrolet & GMC (1999 - 2000)

3/4 & 1 Ton Heavy Duty Long Bed Trucks

(Old Body Style)

NOTE: We recommend reading instructions before beginning the installation.

WARNING: The tow vehicle’s towing capacities should under NO circumstances be exceeded.

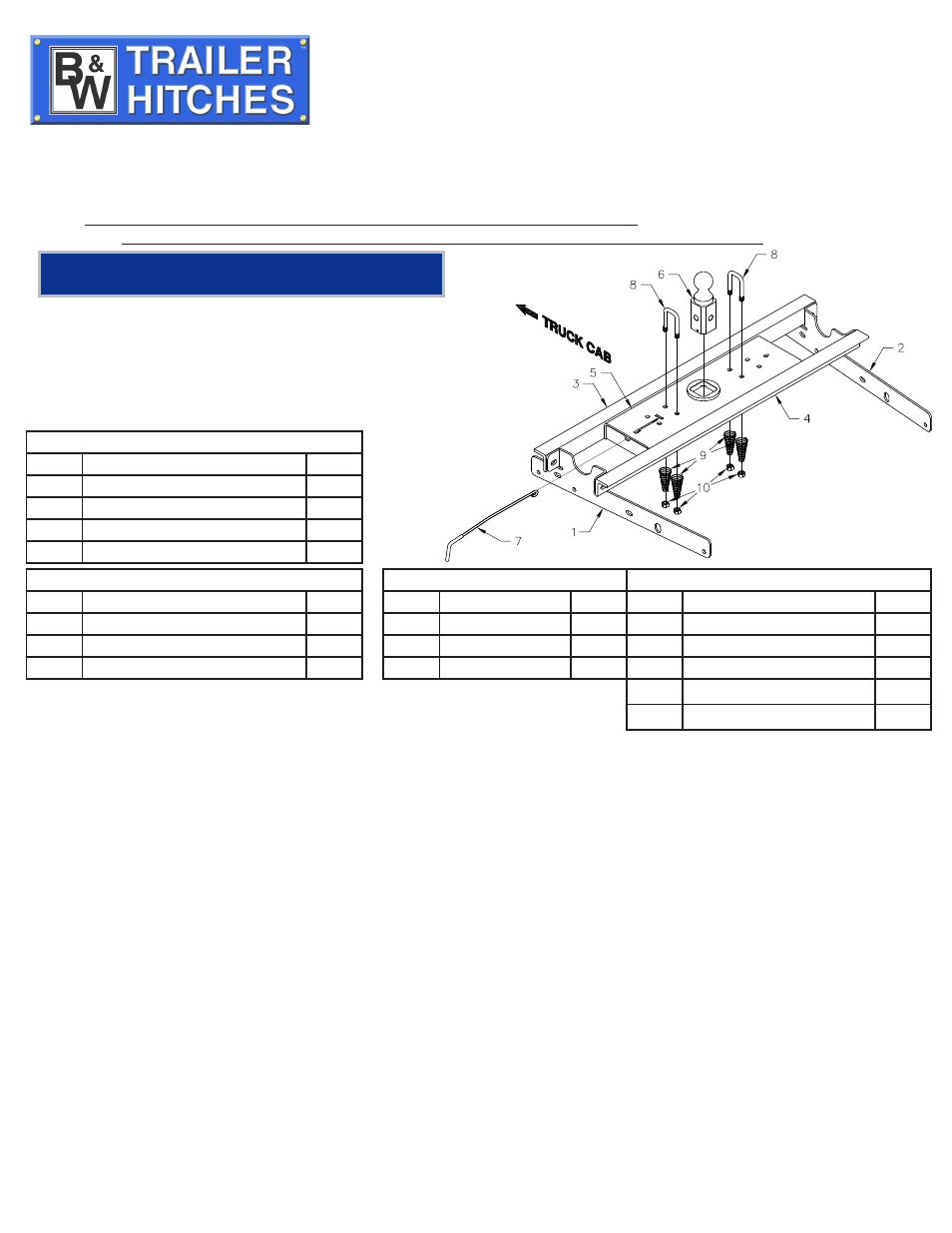

Center Box (GNRC800)

ITEM

DESCRIPTION

QTY

5

Center Section

1

6

2-5/16" Ball

1

7

Latch pin Handle

1

Mounting Kit Box (GNRM1000)

ITEM

DESCRIPTION

QTY

1

Driver Side Plate

1

2

Passenger Side plate

1

3

Front Crossmember

1

4

Rear Crossmember

1

Mounting Kit Bolt Bag

1/2” X 1-1/2” Cap Screw

14

1/2” Flat Washer

28

1/2" Lock Washer

14

1/2” Finish Nut

14

Safety Chain Kit Bolt Bag

8

1/2” U-Bolt

2

9

Conical Springs

4

10

1/2” Lock Nut

4

5/16” X 3/4” Carriage Bolt

1

5/16” X 3/4” Cap Screw

1

5/16” Lock Nut

1

NOTICE: This product was designed to fit vehicles in their original, “as

manufactured” condition. Compatibility with vehicles having replacement parts,

or other modifications is not guaranteed. Inspect vehicle for modifications before

installation of this product.
