Rev. B, 4/13 MPX Series Magnetostrictive Level Sensors
33
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • [email protected]
• 4-20 mA Settings
MPX-E2, MPX-R2 and MPX-E3, MPX-R3 models only.
*4 mA Set-point (0 to 10364) (40426)
Sets the measurement value associated with a 4 mA signal. The set-point is
based on raw measurement value of register 30300 (in millimeters), and not
the calculated value of register 30303.
*20 mA Set-point (0 to 10364) (40427)
Sets the measurement value associated with a 20 mA signal. The set-point is
based on raw measurement value of register 30300 (in millimeters), and not
the calculated value of register 30303.
*4 mA Calibration (0 to 1000) (40428)
Factory set--do not adjust.
*20 mA Calibration (0 to 1000) (40429)
Factory set--do not adjust.

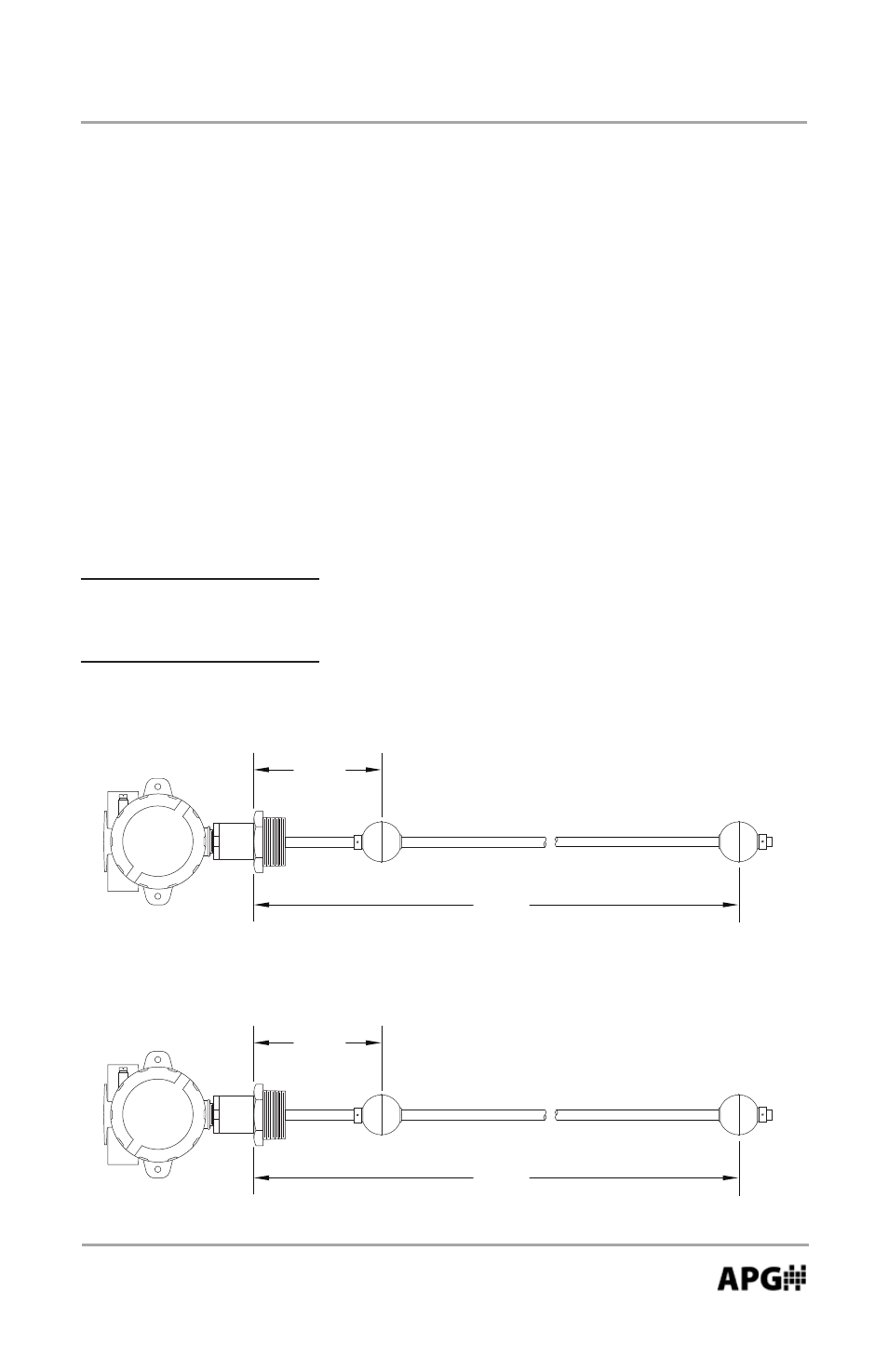

20 mA
Set-Point
4 mA
Set-Point
20 mA
Set-Point
4 mA
Set-Point
OR
