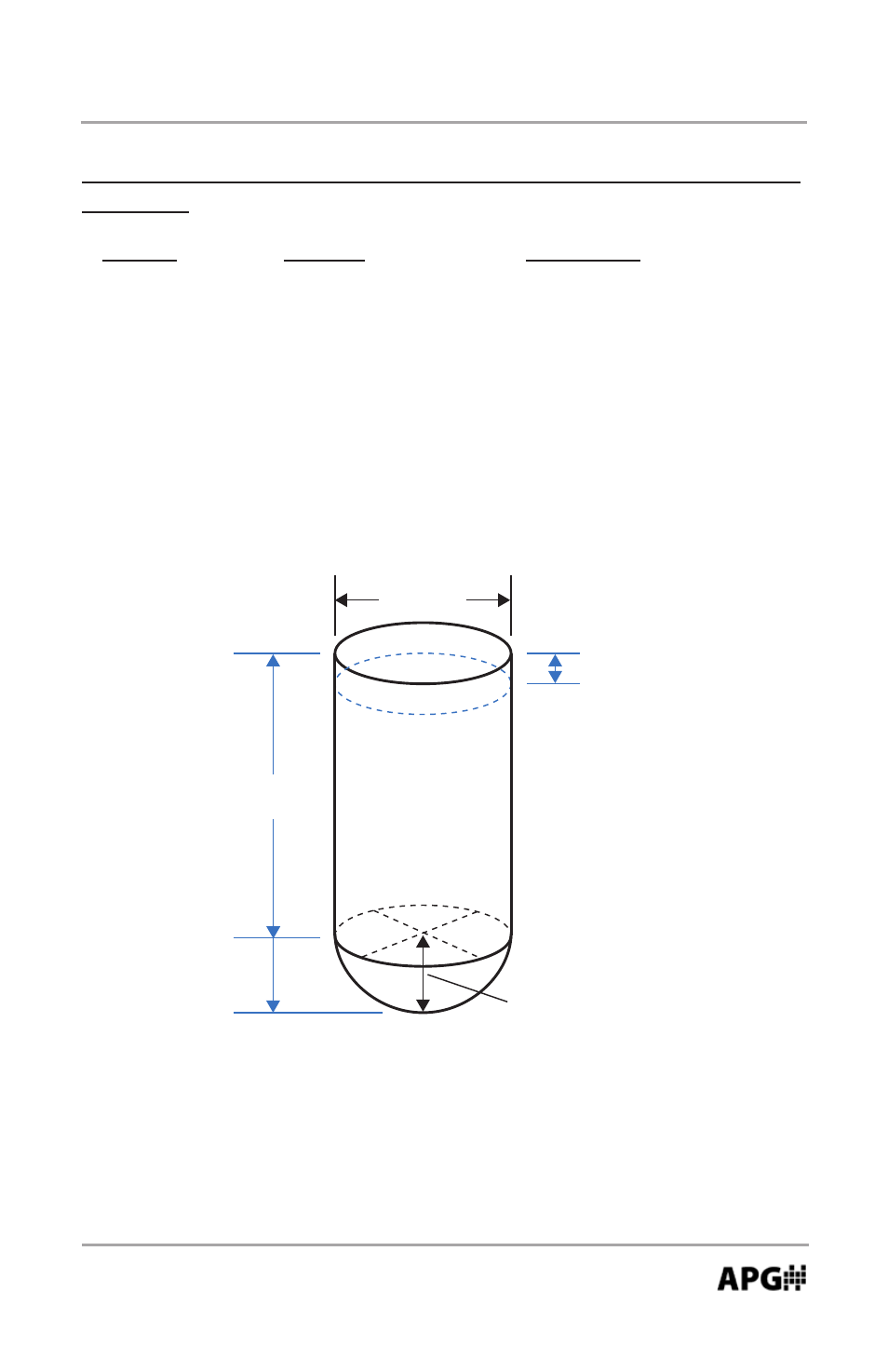

Application Type 2: Volume of cylindrical tank with/without hemispheri-
cal bottom
Register Function Value Range
40402 Application Type 2
40403 Volume Units 1 to 7
40404 Decimal Place 0 to 3
40406 Full Distance Typically = Blanking
40407 Empty Distance 0 to 10364 mm
40436-40437 Tank Diameter 0 to 100,000 mm
40438-40439 Bottom Radius 0 to 100,000 mm
Diameter
Empty
Distance
Bottom
Radius
Full
Distance
or
