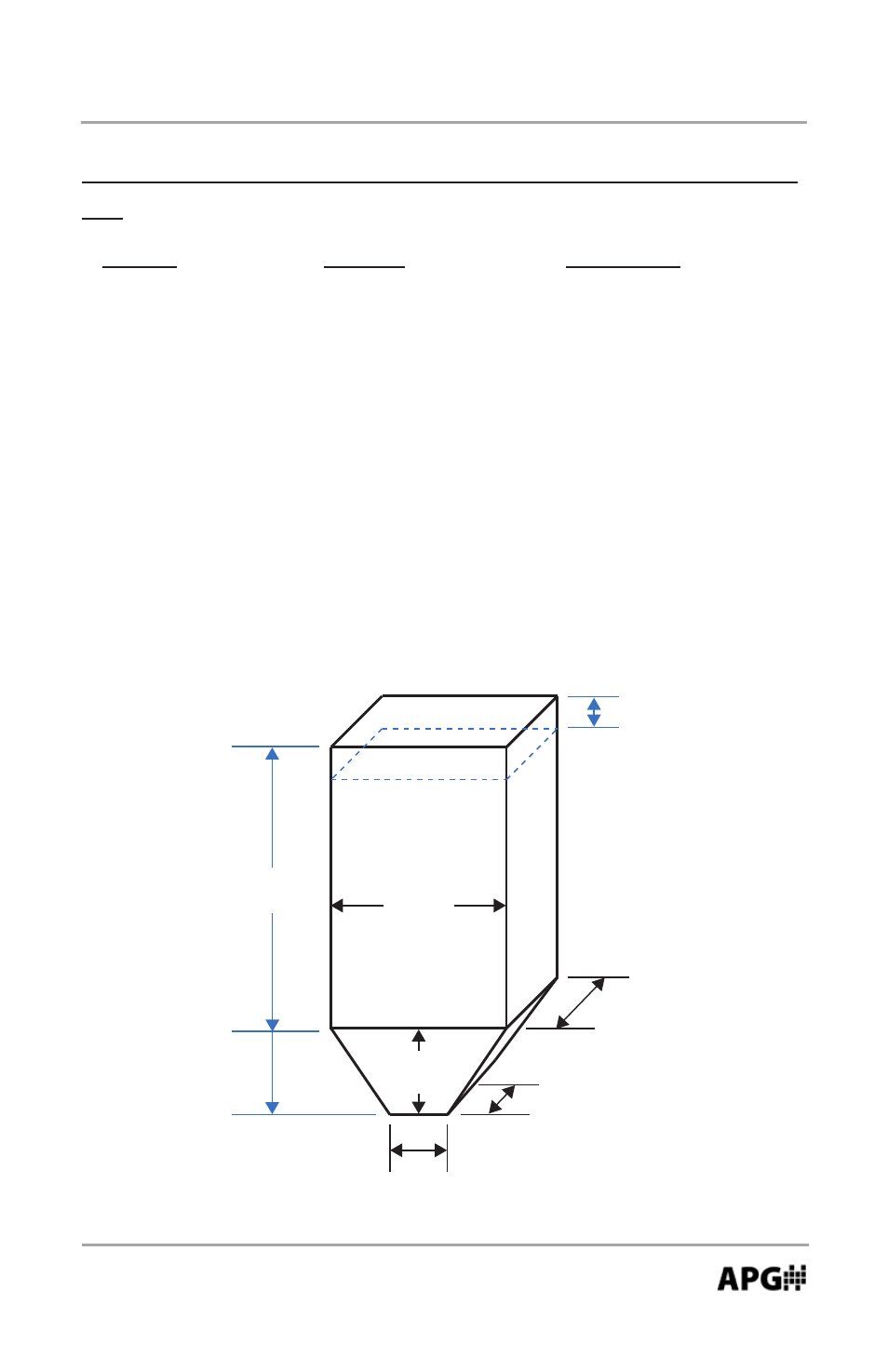

Application Type 4: Volume of rectangular tank with/without chute bot-
tom
Register Function Value Range
40402 Application Type 4
40403 Volume Units 1 to 7
40404 Decimal Place 0 to 3
40406 Full Distance Typically = Blanking
40407 Empty Distance 0 to 10364 mm
40436-40437 Tank X 0 to 100,000 mm
40438-40439 Tank Y 0 to 100,000 mm
40440-40441 Chute X 0 to 100,000 mm
40442-40443 Chute Y 0 to 100,000 mm
40444-40445 Chute Length 0 to 100,000 mm
Tank X
Chute
Length
Tank Y
Empty
Distance
Full
Distance
or
Chute Y
Chute X
