MPX Series Magnetostrictive Level Sensors
Rev. B, 4/13
10
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • [email protected]
Configuring Software Communications
All MPX versions use the same APG Modbus software for sensor programming.
Use the following steps to configure the software communications.

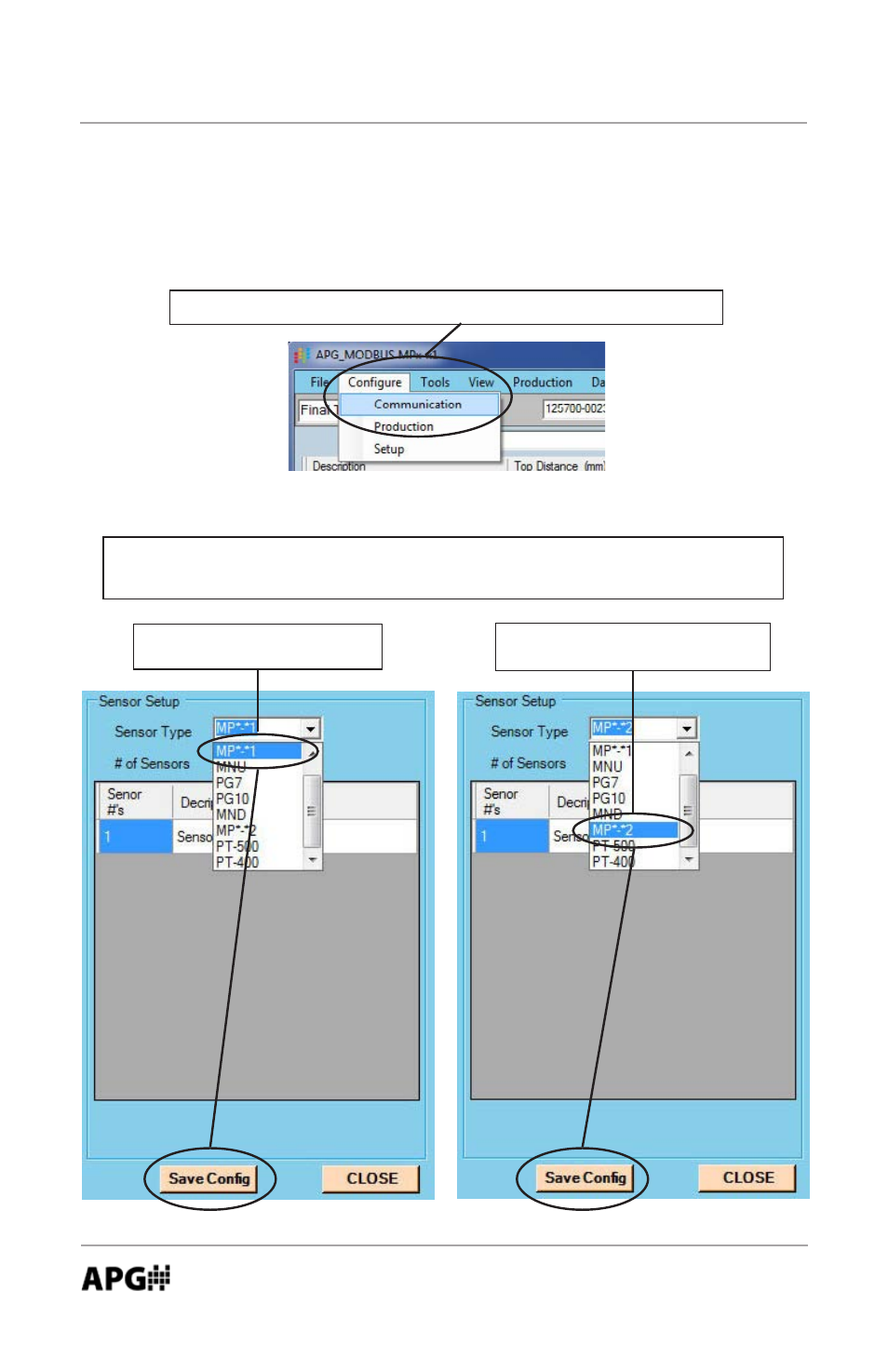

Step 2: select the appropriate Sensor Type, as shown below, then click the
“Save Config” button at the bottom of the screen.
Modbus: select “MP*-*1”
(MPX-E1 and MPX-R1)
4-20 mA: select “MP*-*2”
(MPX-E2, MPX-R2, MPX-E3, MPX-R3)
Step 1: select “Communication” from the “Configure” menu.
