Application Type 6: Volume of spherical tank
Register Function Value Range
40402 Application Type 6
40403 Volume Units 1 to 7
40404 Decimal Place 0 to 3
40406 Full Distance Typically = Blanking
40407 Empty Distance 0 to 10364 mm
40436-40437 Tank Diameter 0 to 100,000 mm

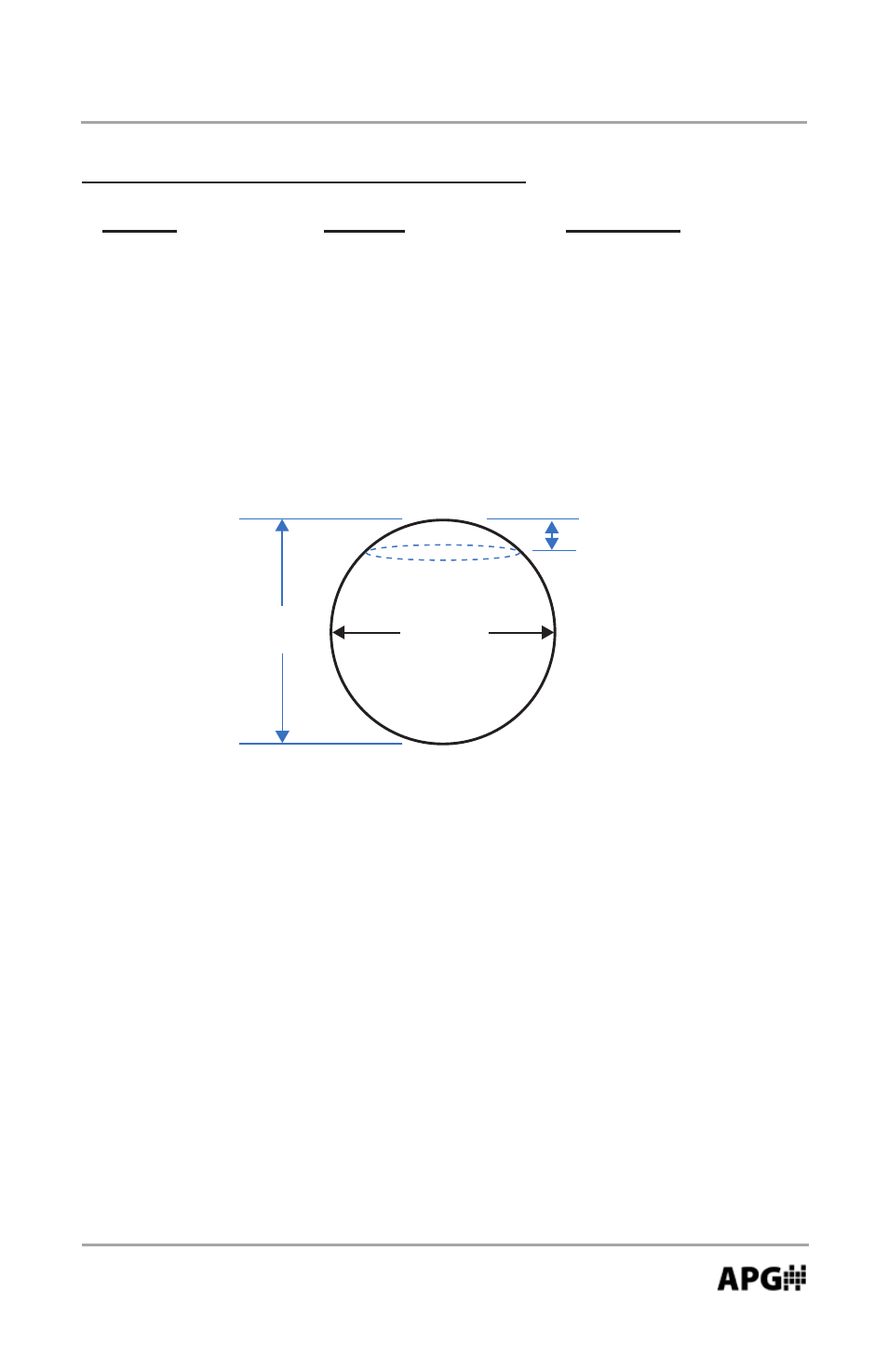

Empty
Distance
Diameter
Full
Distance
