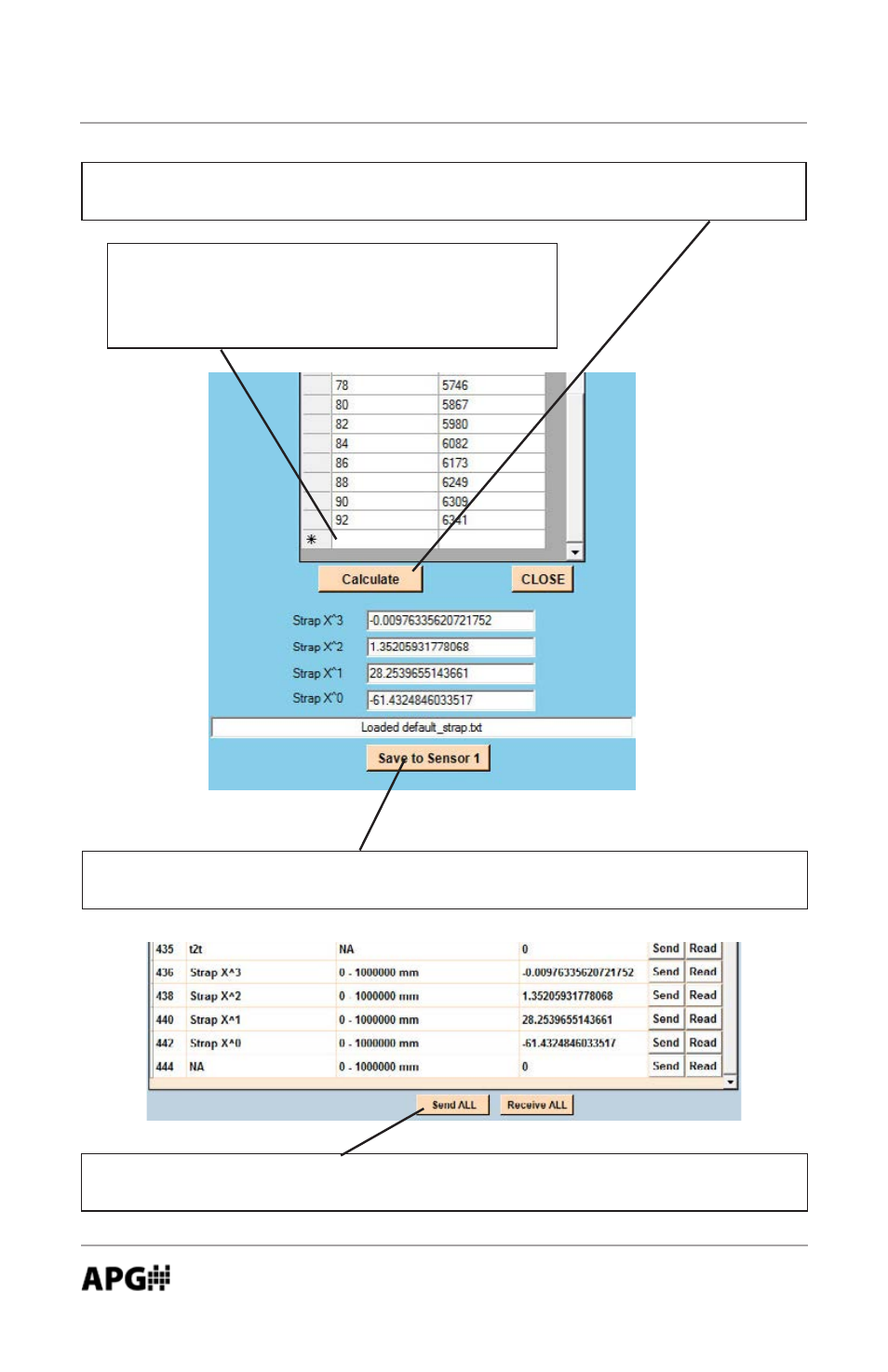

Once the all data points have been entered, click the “Calculate” button to
determine the values required for the “curve fit” calculation.
Click the “Save to Sensor” button to populate the appropriate Holding Resister
fields (see below) and close the Strapping Chart window.
Click the “Send All” button at the bottom of the Holding Register page to write
the curve fit values to the sensor.
NOTE: before clicking “Calculate” ensure that
there is only one empty row following the last
line of data (as shown). Use the keyboard
“Delete”key to remove any addition empty rows.
