Application Type 11: Curve Fit
Allows the sensor to mimic a tank strapping chart by using a 3rd degree polyno-
mial equation to produce a “curve fit” approximation.
Register Function Value Range
40401 Units 1 to 3
40402 Application Type 11
40404 Decimal Place 0 to 3
40406 Full Distance Typically = Blanking
40407 Empty Distance 0 to 10364 mm
40436-40437 Parameter 1 0 to 100,000 mm
40438-40439 Parameter 2 0 to 100,000 mm
40440-40441 Parameter 3 0 to 100,000 mm
40442-40443 Parameter 4 0 to 100,000 mm

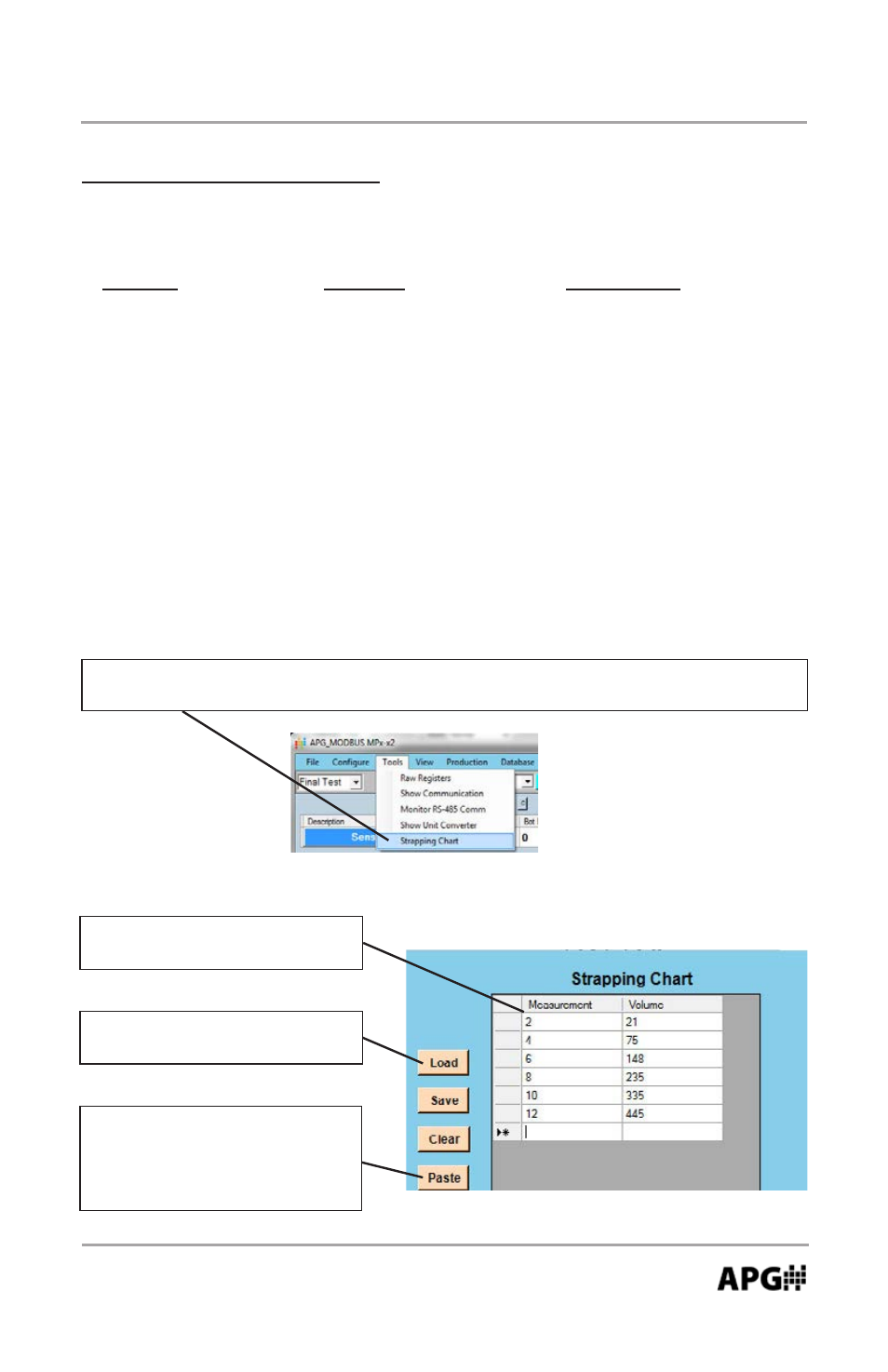

Open the APG Modbus software and select “Strapping Chart” from the “Tools”
menu.
Enter the desired data points
into the table.
Use the “Load” button to re-
call a previously saved table.
Import data from an electronic
document by copying the data
and then using the “Paste”
button to populate the table.
OR
OR
