4
Mid-Eave Bar Bracket
Wing Eave
Bracket
42” Double Hd.
Stake
Fabric Tensioning
Winch
Beam Hook
& Harness
(12 Items)
Eye Fittings
for Gin Pole
(Enlarged)
Eave Bar
Cradles
Fabric Hook &
Harness
(Enlarged)
A Diagonal
Beam Braces
Eave Bar
Cross Section
Ground Bar
End Slot
ANCHORSPAN INSTALLATION KIT
2’ Stake Bar &
Century Winch
Cross-Cables
Color Coded
Purlin Tools
A Baseplate
A Baseplate Adapter Bar w/ AA Bent Arm Pin
A Bent Arm Pins
#10 Hair Pin Cotter
SpanLatch Purlin
Dbl-SpanLatch Purlin
A/AA End Eave Bar Assembly 20’
A/AA Mid Eave Bar Assembly 15’
NOTE: WING EAVE BARS ARE LEFT OR RIGHT
A/AA Wing Eave Bar Assembly 15’
A/AA Wing Eave Bar Assembly 10’
Endwall Ground Bar 20’
Midwall Ground Bar 15’
Wingwall Ground Bar 15’
Wingwall Ground Bar 10’
A/AA End Upright
Assemblies with
24” Stakes
AA Base
Column
Assembly
Male End w/Splice
at Top
40’ Rafter
Assembly
50’ Rafter Assembly
60’ Rafter
Assembly
Apex Assembly
(Both ends are female)
“A” Purlin Bolt Assembly
“A” End Beam Bolt Assembly
“A” Upright Bracket Bolt Assembly
A Extrusion for Beam
Gabled End
Center Bars
Top
80’
Short
Long
Male Ends w/S
plice
Point toward
Apex

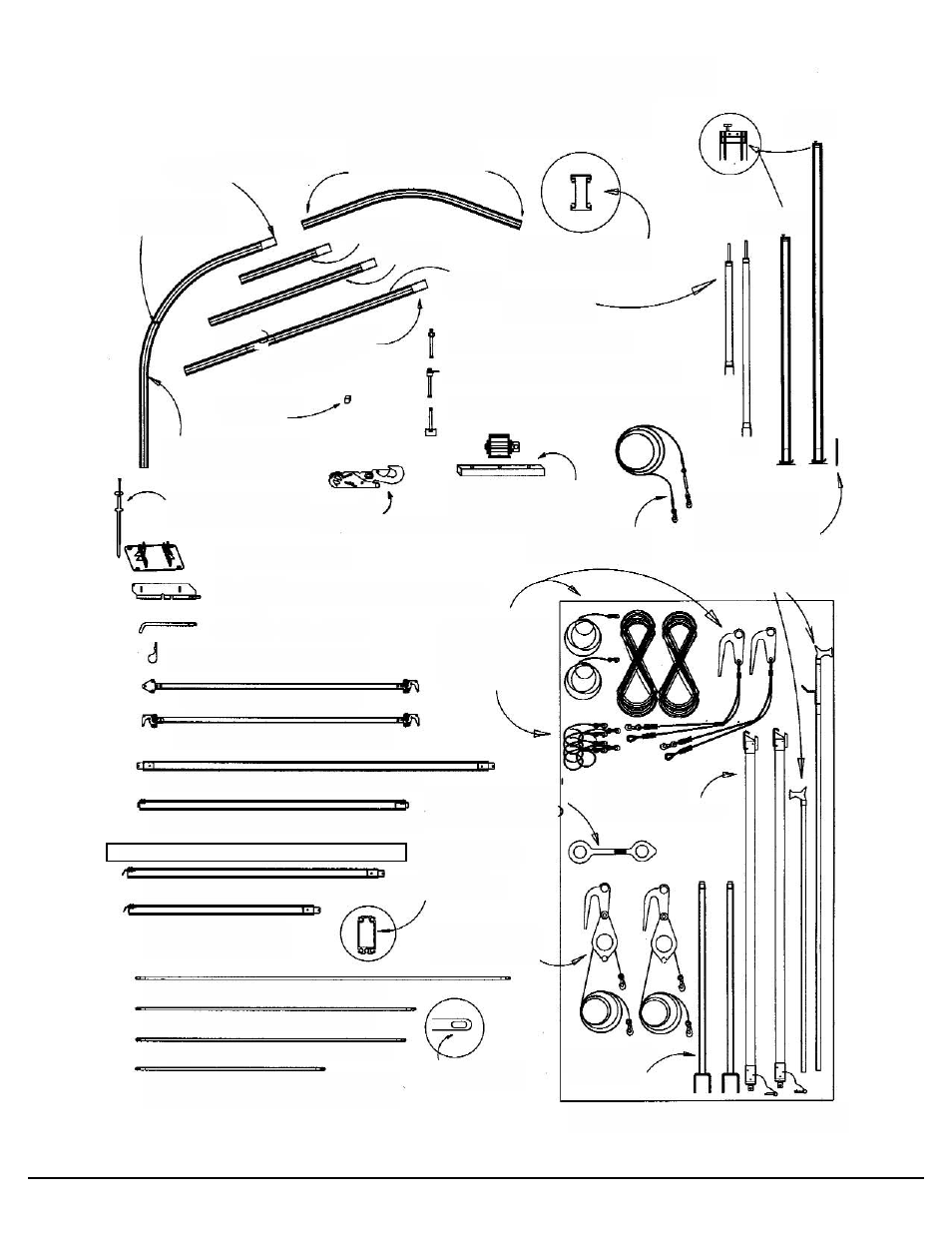

“A” ANCHORSPAN™
COMPONENT ILLUSTRATIONS
40’
or
50’
