X-3

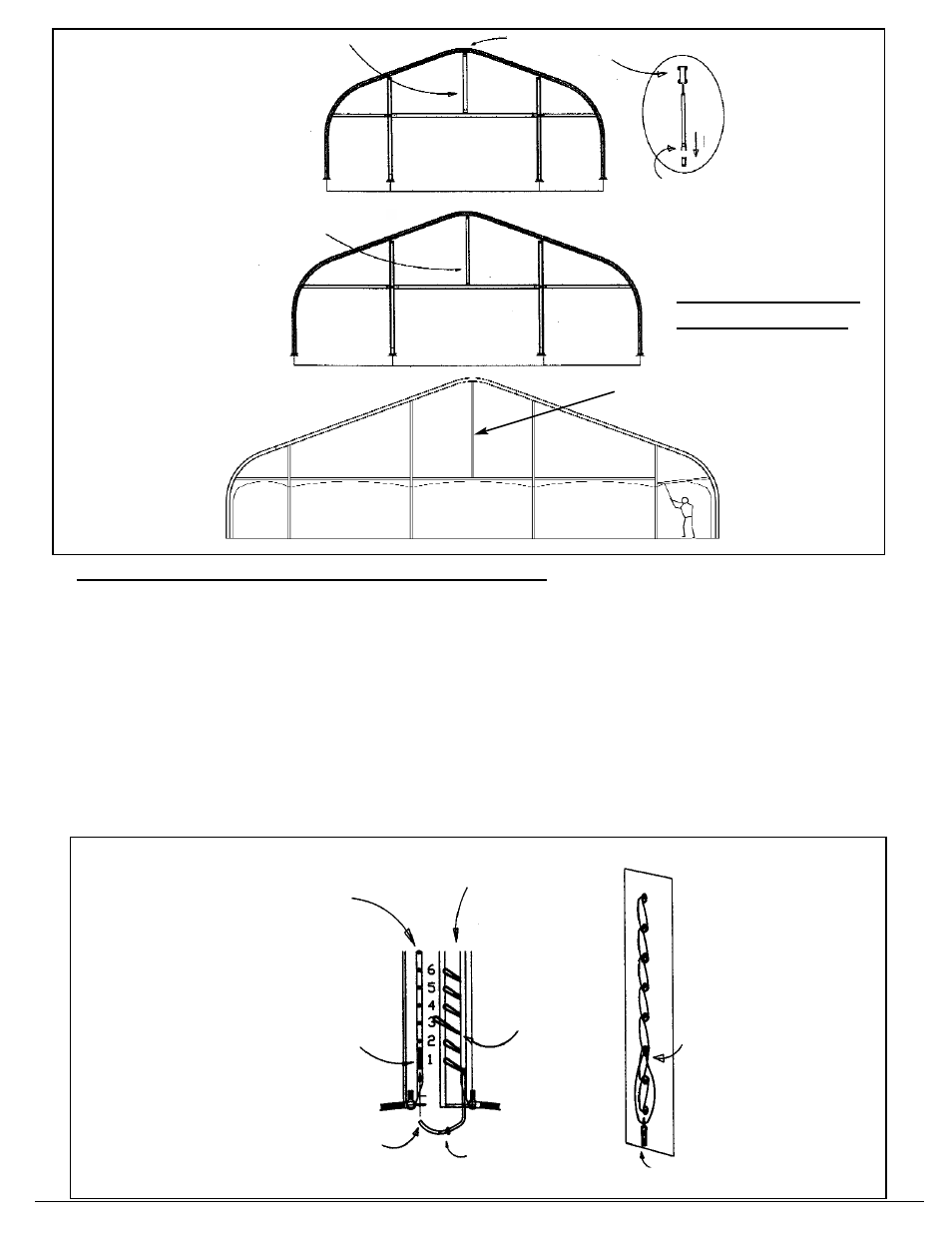

40’, 50’, and 80’ End Frames with the End Center Bar
Unlike the 30’, 60’, and 70’ gable ends, the 40’, 50’, and 80’ End Frames do not have a center
upright. To stiffen the end eave bar so that it does not deform under the tension of the Gabled
End at the Lace Line, an end center bar is added to those end frames only. The unique lace
pattern for Gabled ends is detailed below:
1. Lace standard tent lace down from beam to the 4th loop up from the bottom of the lace line.
2. Loop the 2nd loop through the 1st, then back up to the 3rd grommet.
3. Feed the larger 3rd loop through the 3rd grommet and through the 2nd and 4th loops, then
attach it to the stationary clip at bottom of the panel.
4. Clip the hook that rides on the web tail into the bottom channel of the end eave bar, then
feed the tail into the web buckle on the clip and cinch it down tight.
40’ End Center Bar
50’ End Center Bar
40’ Gabled
End Frame
50’ Gabled
End Frame
Grommet side of
gabled end panel
Loop side of gabled
end panel
3rd loop is
longer
Hook fastens in
bottom channel of
end eave bar
3rd loop passes
through 3rd grommet
and 2nd and 4th loops,
then fastens to clip
Web tail feeds into
web buckle of clip
Clip is on
Outside of end
Insert Spike into Hole in
Apex Beam
Lower End Cradles over
End Eave Bar
SIDE
VIEW
End Framing with
End Center Bars
Unique Lacing
Pattern for
Gabled Ends
VIEW FROM INSIDE ( BEFORE LACING)
VIEW FROM OUTSIDE
(
AFTER LACING)
80’ Gabled
End Frame
50’ End Center Bar
