X-8
AA ANCHORSPAN™
BASE LOADS FOR TEMPORARY STRUCTURES
ASCE 7-93 Modified for Temporary Use Only
(Revised 4-7-99)
Also see Introduction, Page 5 “For Permanent Installations”.
*Includes wind loading -- appropriate
stress increases may be used
NOTE: BASELOADS LISTED BELOW ARE IN POUNDS. APPROPRIATE SAFETY FACTORS
MUST BE ADDED: VALUES SHOULD BE CONSIDERED NOMINAL ESTIMATES ONLY. ACTUAL
VALUES WILL BE SUPPLIED ON FOOTPRINT DRAWING.
Span Term of Use Bay Minimum # of A B C D E
x-cabled bays
30’AA Temporary 15’ 2 2400 330 980 1100 1700
40’AA Temporary 15’ 2 2900 560 1300 1000 2200
50’AA Temporary 15’ 2 3100 840 1600 1000 1800
60’AA Temporary 15’ 2 4100 1020 1700 1400 2100
In order for the AnchorSpan to meet the requirements of its engineering calculations and be certifiable
for 70 mph winds under the ASCE Code modified for temporary use, it must be constructed properly
with the specified minimum number of beams for the given span. It must be properly cross-cabled,
and anchoring should be sufficient to withstand vertical and horizontal forces equal to, or greater than,
those shown above on each baseplate plus an appropriate safety factor. When properly constructed,
each beam can support 2 lbs per square foot (span times bay width) of additional dead weight.

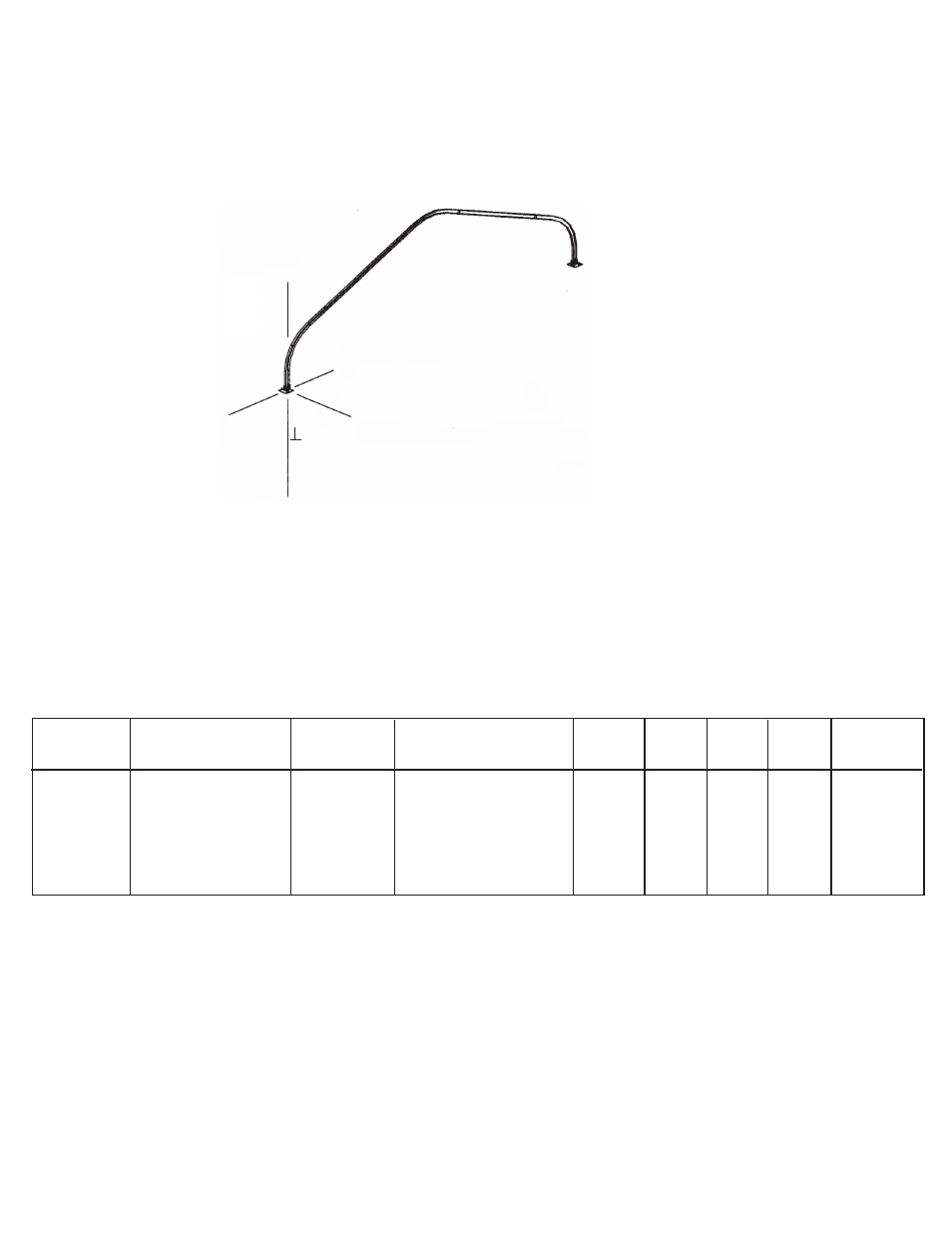

“A”
UPWARD
“E”
INWARD
“B”
OUTWARD
“C”
DOWNWARD
“D”
LATERAL TO FRAME
