Anchor ANCHORSPAN AA 30FT-60FT - Manual (Page 27)

ADAPTER WALLS
(to Fiesta
®
and Century
®
Frame Tents)
For Transition to Fiesta® Frame Tents:
1. Feed 2 or 3 channel hooks at the top of the adapter (AnchorSpan side) into the bottom channel of
the Eave Bar to support the weight of the adapter wall, then feed the kedar edges (at sides of
adapter ) down into flare of Liner Channel walls) or into the outer channels of the Gabled End
Uprights (for end wall adapters).
2. Feed remaining Channel Hooks at top of adapter into the middle bottom channel of AnchorSpan™
Eave Bar.
3. Feed remaining half (Fiesta side) of adapter wall under the AnchorSpan™ tension arch toward the
Fiesta Tent.
4. Attach wall hooks of adapter wall to the wall rope along the eave bar of the Fiesta Tent.
5. Using lace cord and grommets at side of adapter, lace the adapter wall to the legs of the Fiesta Tent.
For Transition to Century® Frame Tents.
1. Release tension on AnchorSpan™ panel. If mid wall location, withdraw mid panel by 3 to 4 ft up the
channel.
2. Release tension on Century Frame Tent top.
3. Feed wall channel hooks into the bottom channel of the AnchorSpan™ eave bar. (Notch is near end
of bar).
4. Feed wall channel hooks into Century Frame eave bar. (Notch is at the center of the eave bar, so the
wall must be repositioned first toward one end of the eave bar and then the other to avoid drop out.
5. On each side of the adapter wall, feed the (2) kedar edges simultaneously downward into the
AnchorSpan™ beam channel for midwalls (or end upright channels for end walls) and the outer
channel of the Century Frame upright leg. Coordinate insertion of the two kedars carefully to avoid
binding.
6. Fully install the middle panel (or re-tension the Gabled End Panel) and re-tension the Century Frame
Top.
X-2

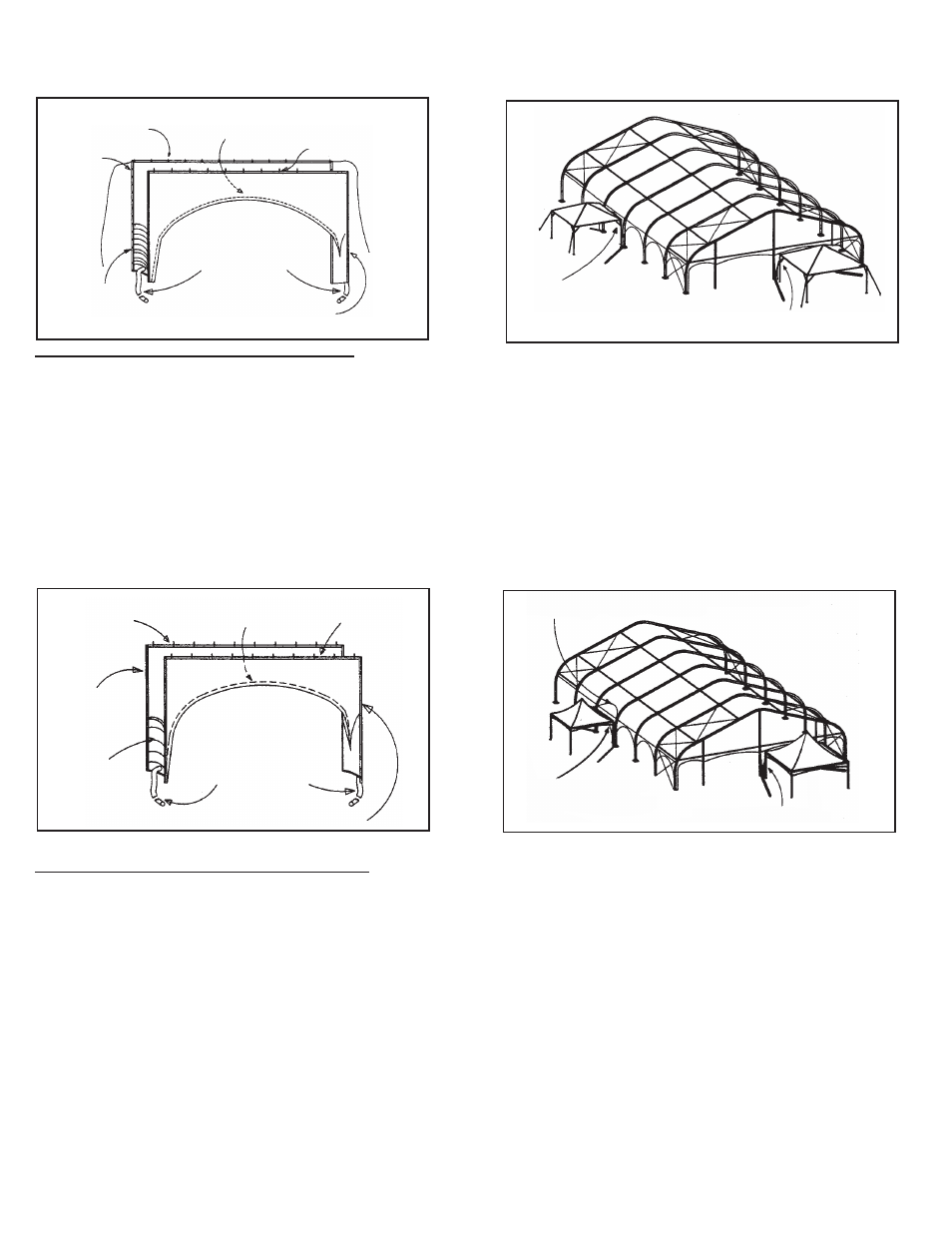

Wall Hooks to
Fiesta Wall rope
Channel hooks to
A-span Eave Bar
Folded envelope
sandwiches to inside
& outside of A-span
fabric panels
Grommets
with lace
cord (to
Fiesta legs)
Side sleeves
funnel water
runoff into
down spouts
Down Spouts (Run
10’ along ground)
Kedar Edge to AnchorSpan
beam liner channel
Channel Hooks
to Century
Frame Eave Bar
Channel hooks to
A-span Eave Bar
Folded envelope
sandwiches to inside
& outside of A-span
fabric panels
Small kedar
edge to
Century
Frame Eave
Bar
Side sleeves
funnel water
runoff into
downspouts
Downspouts
(Run 10’ along ground)
Kedar Edge to AnchorSpan
beam liner channel
16’ Fiesta
Adapter Mid
Wall (with 10’
downspout)
20’ Fiesta Adapter End Wall
(with 10’ downspout)
15’ Century
Frame Adapter
Mid Wall (with 10’
downspouts)
20’ Century Frame Adapter End
Wall (with 10’ downspouts)
Install adapter Before Middle Panel installation is complete, or with-
draw Middle Panel a few feet to install. Then finish Middle Panel
Note: AnchorSpan™ side has the larger kedar.
