9

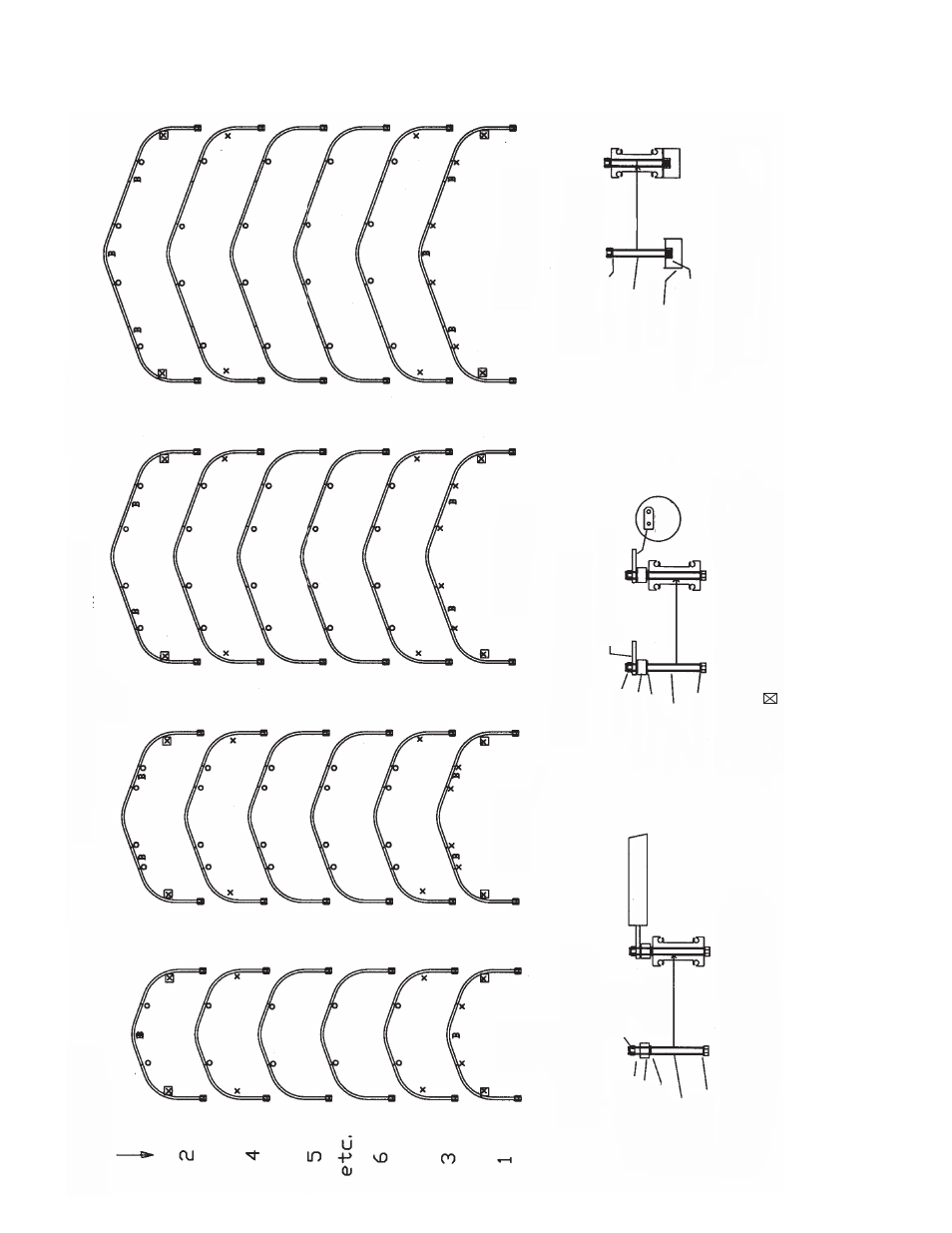

AA ANCHORSPAN™ HARDWARE PATTERN
For Gabled End Configuration for Beam Assembly (on the ground)
ORDER INCLUDED
30’
40’
50’
60’
“O” HARDWARE
“X” HARDWARE
“B” HARDWARE
purlin end
2” purlin spacer
sealing washer
10” bolt
sealing washer
lock nut
2” purlin spacer
sealing washer
10” bolt
end beam plate (top view)
sealing washer
sealing washer
8” bolt
beam/upright bracket bracket threaded for assembly bolt
end beam plate (substituted for purlin end)
installed
installed
installed
lock nut
SpanLatch
purlin
TYPICAL
PURLIN BOLT
ASSEMBLY
TYPICAL
UPRIGHT BRACKET
ASSEMBLY
TYPICAL
END BEAM BOLT ASSEMBLY
Note: indicates location of wing eave brackets (added at head of
end beam bolt assembly.)
When Structure is disassembled, hardware should be stored as assembled above.
