Configuration Connector Connection
The configuration connector is located in the upper part of the printed circuit board.
Use the configuration jumpers to set whether the lock control relay should have a
normally open or normally closed function and whether it should powered internally or
externally.

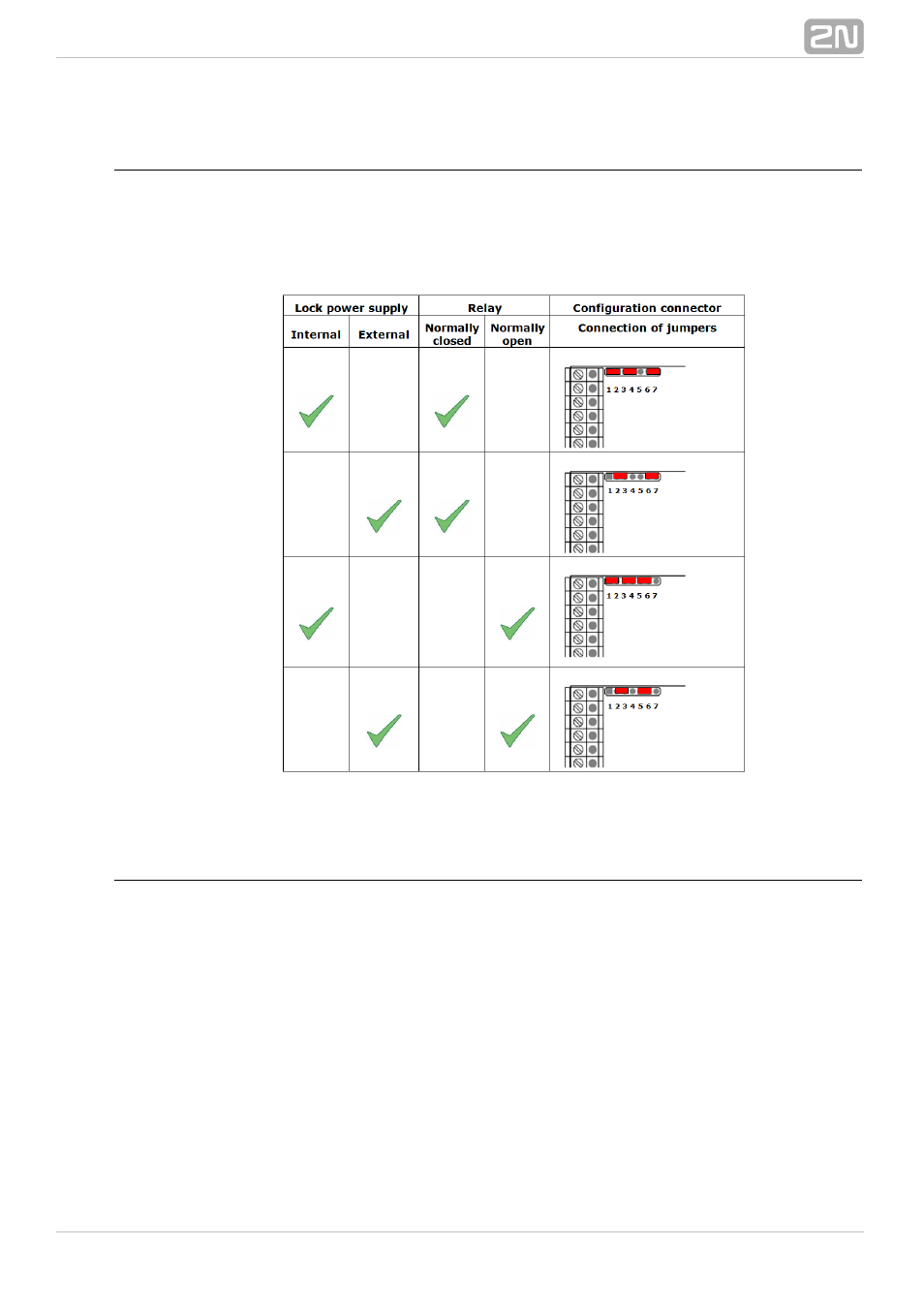

Table 2.4 Connection of Configuration Connector Jumpers
Display Connector
The display connector includes the name plate backlighting ON/OFF switching pins and
resetting pins. The remaining pins are intended for display 2N
®
Helios IP Vario
connection.
