Surface Mounting

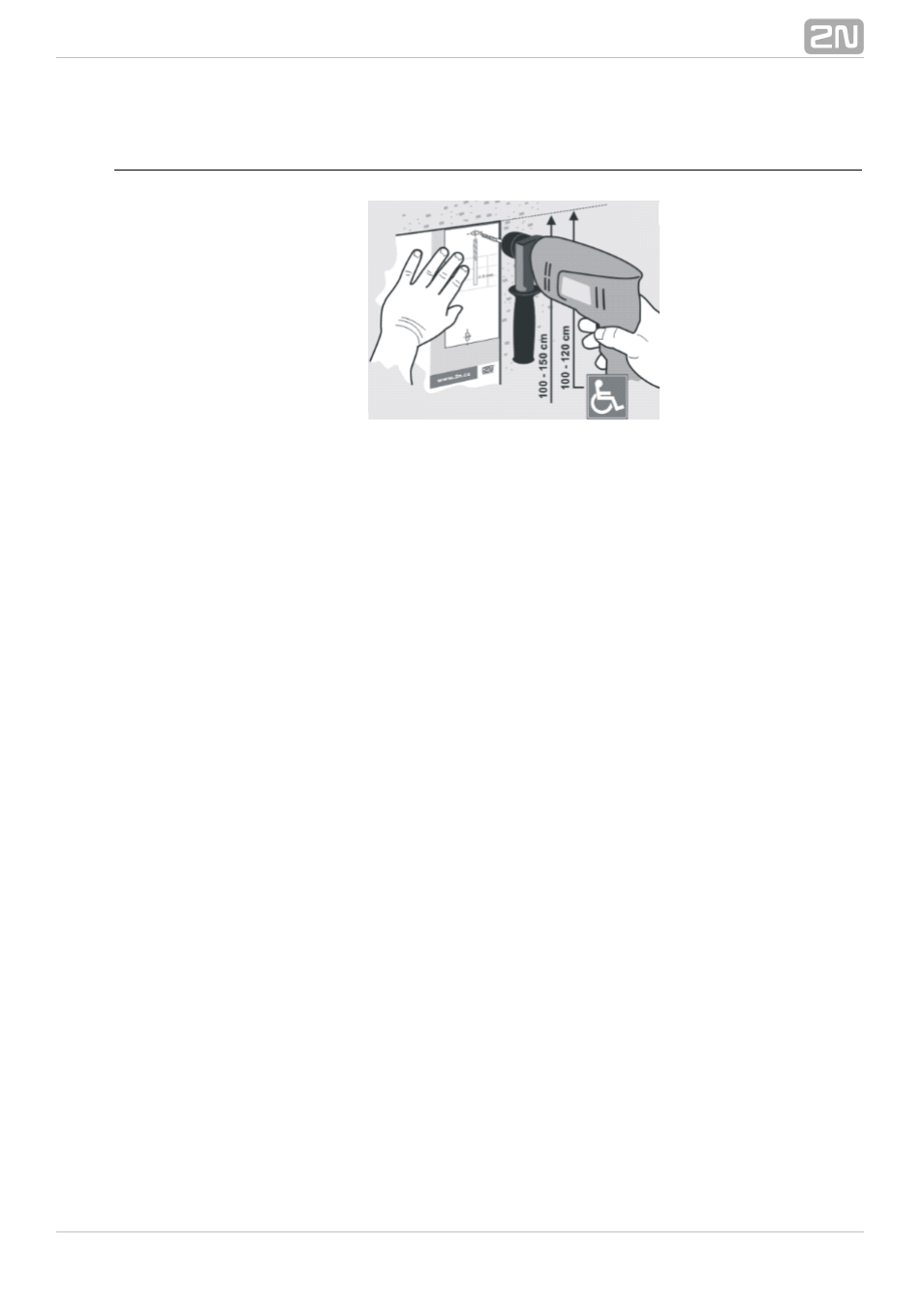

Figure 2.1 Hole Drilling
1. Drill holes according to the template included in the supply. 2N
®
Helios IP Vario
Insert the included dowels in the wall holes.
2. Use the hexagonal wrench included in the supply and remove the 2N
®
Helios IP
metal cover. Remove the screw in the lower part of the metal cover and fold out Vario
the cover as shown in Figure 2.2.
3. Use a cross-head screwdriver to remove the plastic cover and demount the cover.
