Mounting

– Electrical Installation

2.3

32

Configuration Connector Connection subsection. Set on the configuration connector
whether the electric lock will be powered from an external or internal power supply.

External Power Supply Connection

If the Ethernet network is not equipped with the PoE technology, you have two
alternative options how to supply power to 2N

®

Helios IP.

1. Using a PoE injector, Part No. 91378100. 2N

®

Helios IP is then powered

through an Ethernet cable as shown in Tab. 1 above.

2. Using a power adapter, Part No. 91341481E.

The external power supply from a power adapter can be connected to terminals 1 and
2.

Electric lock

2N

®

Helios IP

Marking Marking Terminal No.

91341481E

1

+

2

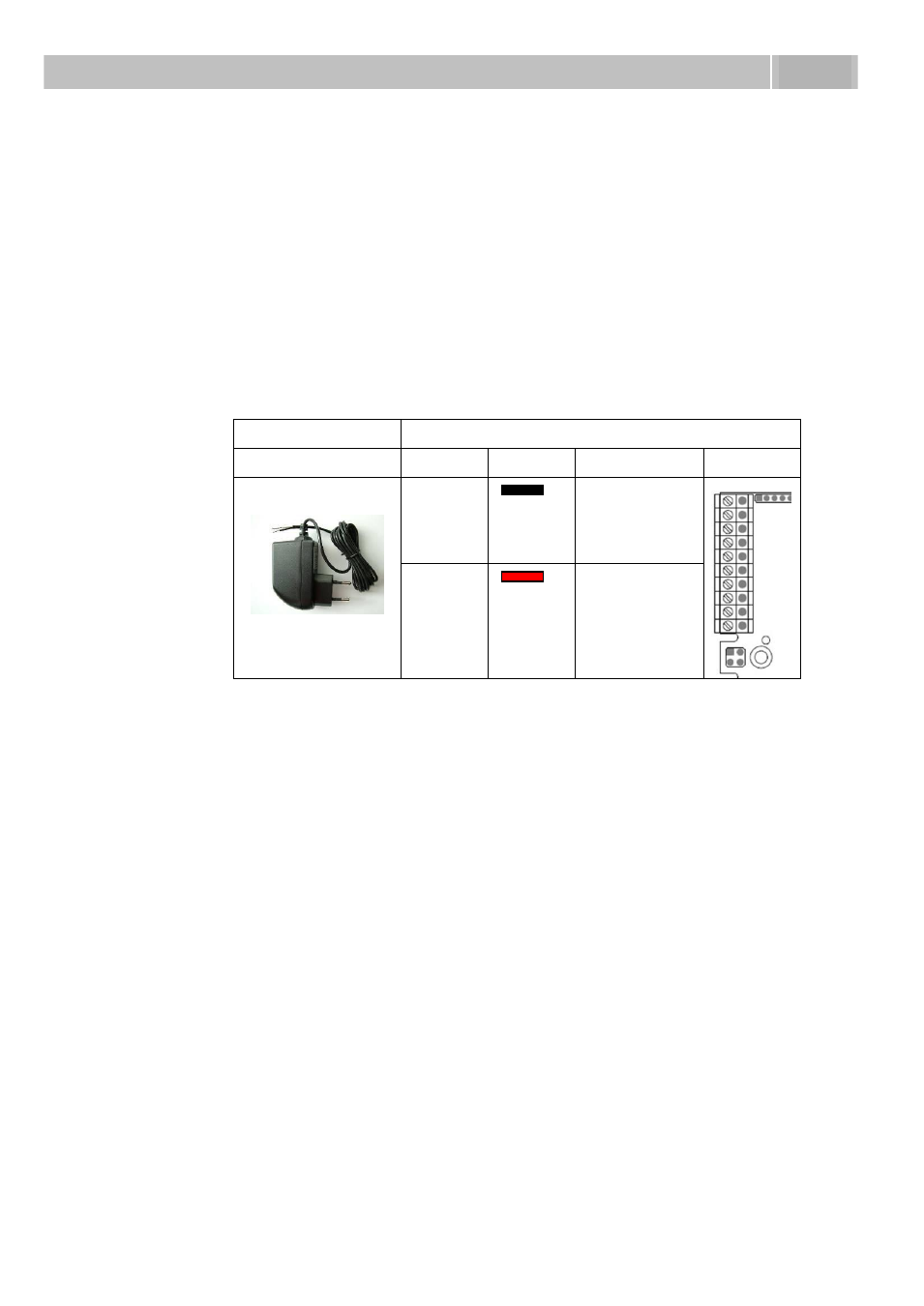

Table 2.3 Terminal Block Connection for Power Adapter

1
2
