Page 25

Mounting
– Mechanical Installation
2.2
25

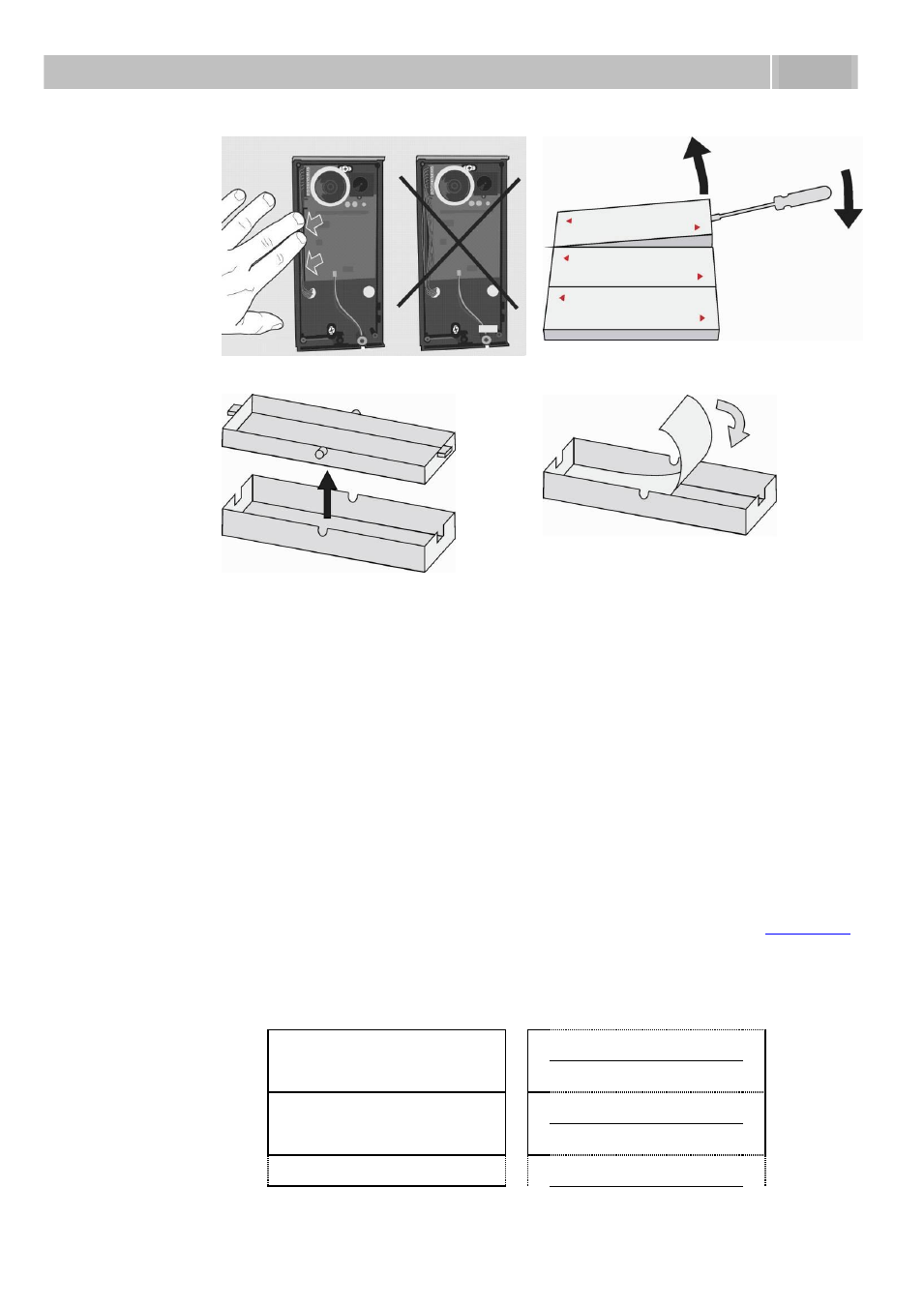

Figure 2.7 Cabling
Figure 2.8 Name Plate Removing
Figure 2.9 Insert Removing
Figure 2.10 Label Inserting
Outdoor installation rules
Always connect button backlighting – it is used for heating.
The joint between the roof module and the wall must be filled with a
waterproof cement to prevent water in-leak (see Figure 2.5).
Water must not leak in along or around the cables.
Name tag material and printing
Each 2N
®
Helios IP package includes a sheet of transparent foil for laser printing. Cut
the printed foil into pieces and insert the labels in the name plates. Do not use paper
to avoid water in-leak and paper damage.
Red arrows are printed on the name plate. Make sure that the text and the arrow do
not overlap. We recommend you to use a template (MS Word) available
for printing.
Single button
(whole)
Double button
(horizontally divided)
Name 01
Name 01
Name 04
Name 02
Name 02
Name 05
Name 03
Name 03
