SECTION 5 - MAST COMPONENTS
5-8 – JLG Lift – 3121136
7. Remove the adjust and lock nuts from the chain
studs at the bottom of mast section-3.
8. Push mast sections-3, 4 and 5 back towards the
base assembly allowing the top of mast section-2 to
be completely exposed.
9. Remove the cylinder/anchor block attach pin - snap
ring from the back of the top of mast section-2.
10. Remove the cylinder rod pin from the cylinder/chain
anchor block.

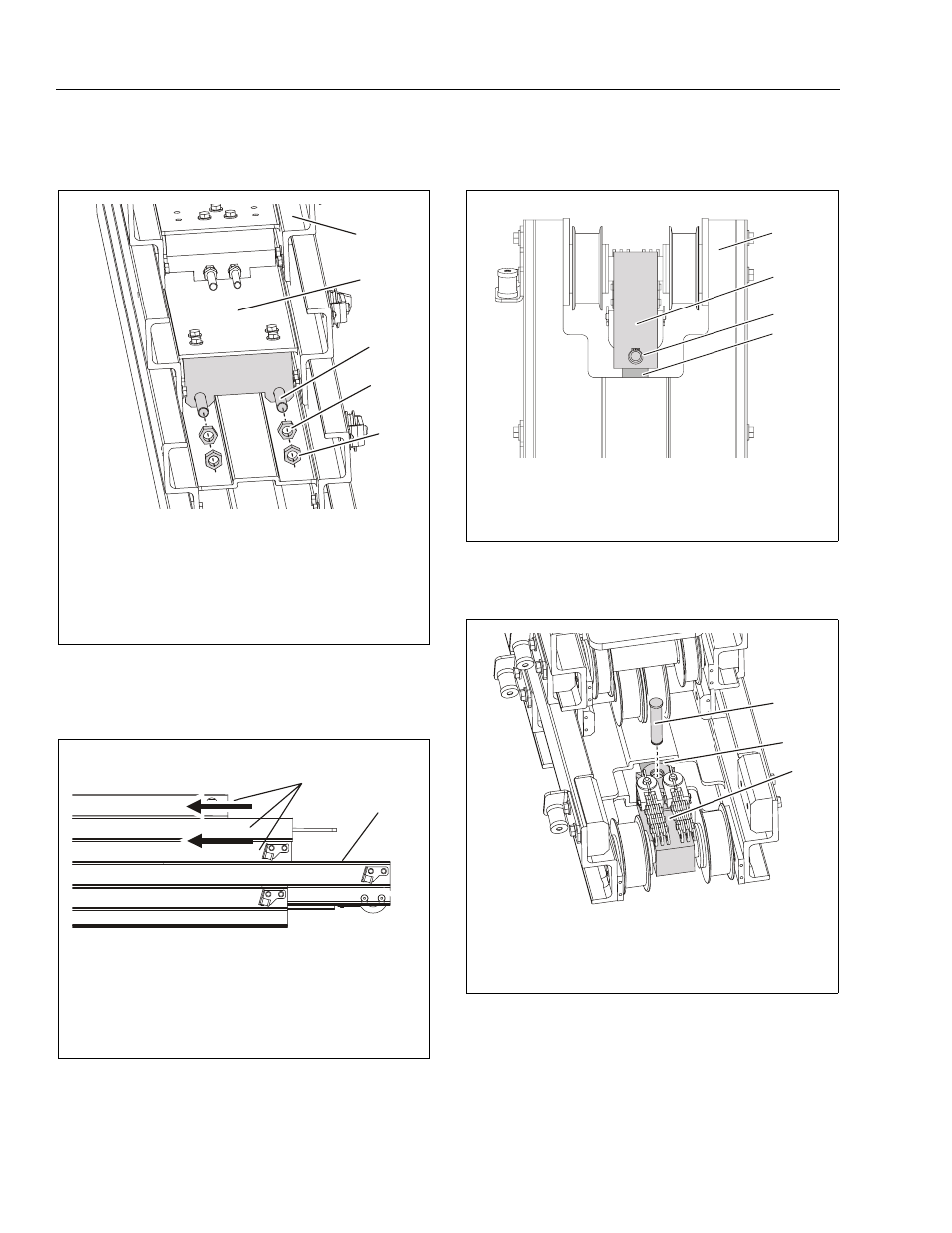

Chain Assembly - Bottom of Mast Section-3
1. Mast Section-4 4. Adjust Nut
2. Mast Section-3 5. Lock Nut (b)
3. Chain Assembly Stud (a)
Note: (a) Remove nuts and push studs through anchor plate.
Exposing Top of Mast Section-2
1. Sections-3, 4 and 5 Pushed Back
2. Top of Mast Section-2 Exposed
1
2
3
4
5
2
1
Snap Ring Installation
1. Back of Mast Section-2 3. Pin and Snap Ring
2. Cyl./Chain Anchor Block 4. Cylinder Rod
Cylinder Rod Pin Installation
1. Cylinder Rod Pin 3. Cyl./Chain Anchor Block
2. Cylinder Rod
3
4
1
2
1
2
3
