SECTION 3 - BASE COMPONENTS
3121136 – JLG Lift – 3-21

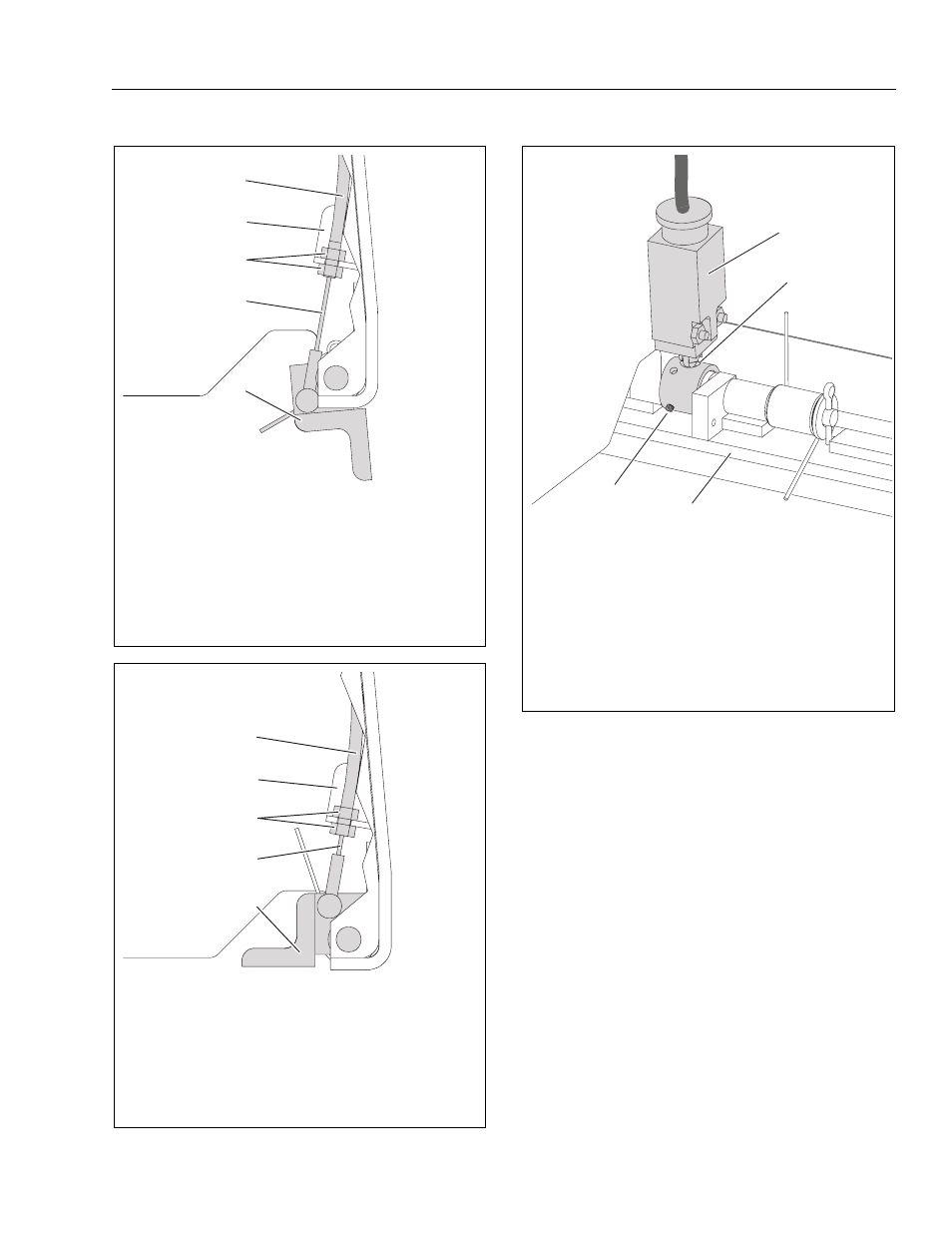

Actuator Cable Adjustment
(Bars DOWN - Engaged)
1. Actuator Cable Assembly 4. No Tension On Cable
2. Cable Attach Bracket 5. Bar Resting Against Frame
3. Adjusting Nuts
Notes: Adjust so cable is just released of tension (item 4).
Replace cable if excessively frayed in this area
Actuator Cable Adjustment
(Bars UP - Disengaged)
1. Actuator Cable Assembly 4. Cable Retracted
2. Cable Attach Bracket 5. Bar Above Base Frame
3. Adjusting Nuts
Notes: Adjust until pothole bar is above bottom of base frame.
1
2
4
5
3
2
4
1
5
3
PHP Limit Switch Adjustment
1. Limit Switch 3. Set Screws (b)
2. Cam w/Countersunk Hole (a) 4. Bar in DOWN Position
Notes: (a) Loosen set screws and adjust cam till limit switch
roller rests in countersunk hole in cam when the
pothole bar is DOWN - Switch Closed.
(b) Apply Loctite 242 to set screws on final tightening.
1
2
3
4
