SECTION 3 - BASE COMPONENTS
3121136
– JLG Lift –
3-13
Brake Assembly Installation
1.
Secure the brake assembly to the drive motor hous-
ing using four (4) hex cap screws with washers.
Torque evenly to 44 in. lbs.
2.
Reinstall the protective rubber boot over the drive
motor housing, secure the boot with the boot clamp.
3.
Reconnect the drive motor/brake power wiring con-
nector to wiring harness connector.
4.
Install the drive motor cover.

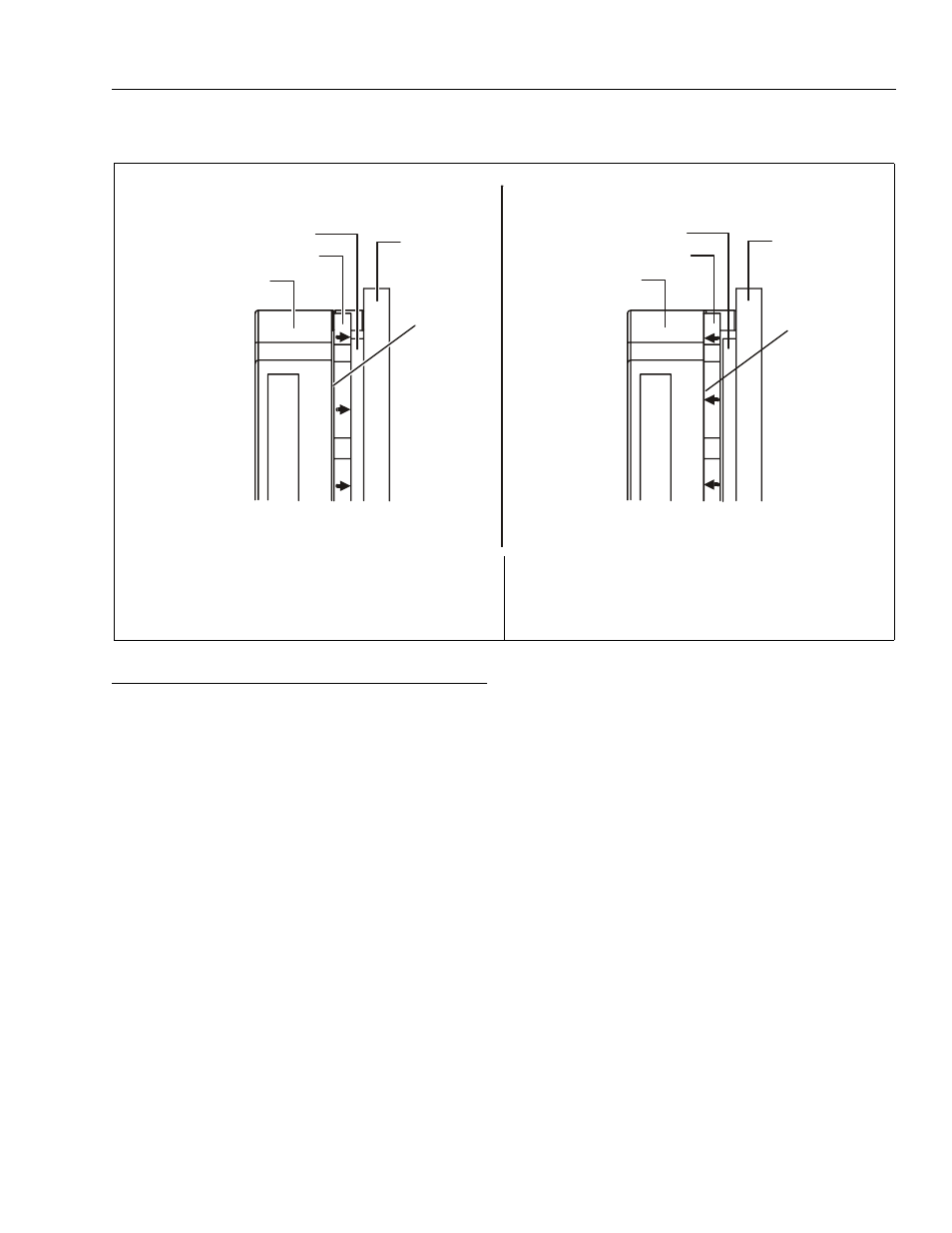

Gap Setting - Brake Engaged
(magnet not energized-springs engage plate against disk)
1. Magnetic Coil
3. Brake Disk(Engaged) 5. .006" Gap
2. Armature Plate
4. Mounting Plate
Gap Setting - Brake Disengaged
(magnet energized-plate compresses springs, disk rotates freely)
1. Magnetic Coil
3. Brake Disk (Free) 5. Plate Engaged -
2. Armature Plate
4. Mounting Plate
Springs Compressed
3
3
2
2
1
1
5
5
4
4
