SECTION 6 - TROUBLESHOOTING
6-6 – JLG Lift – 3121136
FAULT
CODE
PLATFORM
CONSOLE
LEDs
FLASHING
LCD SYMBOL SCREEN LCD TEXT SCREEN
FAULT DESCRIPTION/
MACHINE CONDITION FOR TROUBLESHOOTING
REFER TO
23 — Horn Disconnected
See Table 6-26,
Page 6-21
24 — Auxiliary #1 Circuit Short
See Table 6-27,
Page 6-21
25 —
Auxiliary #1 Circuit
Disconnected
SeeTable 6-28,
Page 6-22
26 — Auxiliary #2 Circuit Short
See Table 6-29,
Page 6-22
27 —
Auxiliary #2 Circuit
Disconnected
See Table 6-30,
Page 6-23
28 — RESERVED RESERVED
29 — RESERVED RESERVED
30 6
Traction Module
No Communication
with Ground Control Module
See Table 6-31,
Page 6-24
31 —
Platform Control Console
No Communication with
Ground Control Module
See Table 6-32,
Page 6-25
32 7
Pump Motor Over Current
LIFT UP Disabled
See Table 6-33,
Page 6-25
33 2
Both PHP Bars UP
DRIVE and Lift UP Disabled
See Table 6-34,
Page 6-26
38 2
2 LEDs/BARS Flashing with
an audible beep.
Platform Lift-UP Function is
Locked Out.
See Page 6-26
39 1
1 LED/BAR Flashing with an
audible beep.
Drive and Platform Lift-UP
Functions Locked Out.
See Page 6-26
40 5
Obstruction Sensor System
No Communication With
Ground Control Station
See Table 6-35,
Page 6-27

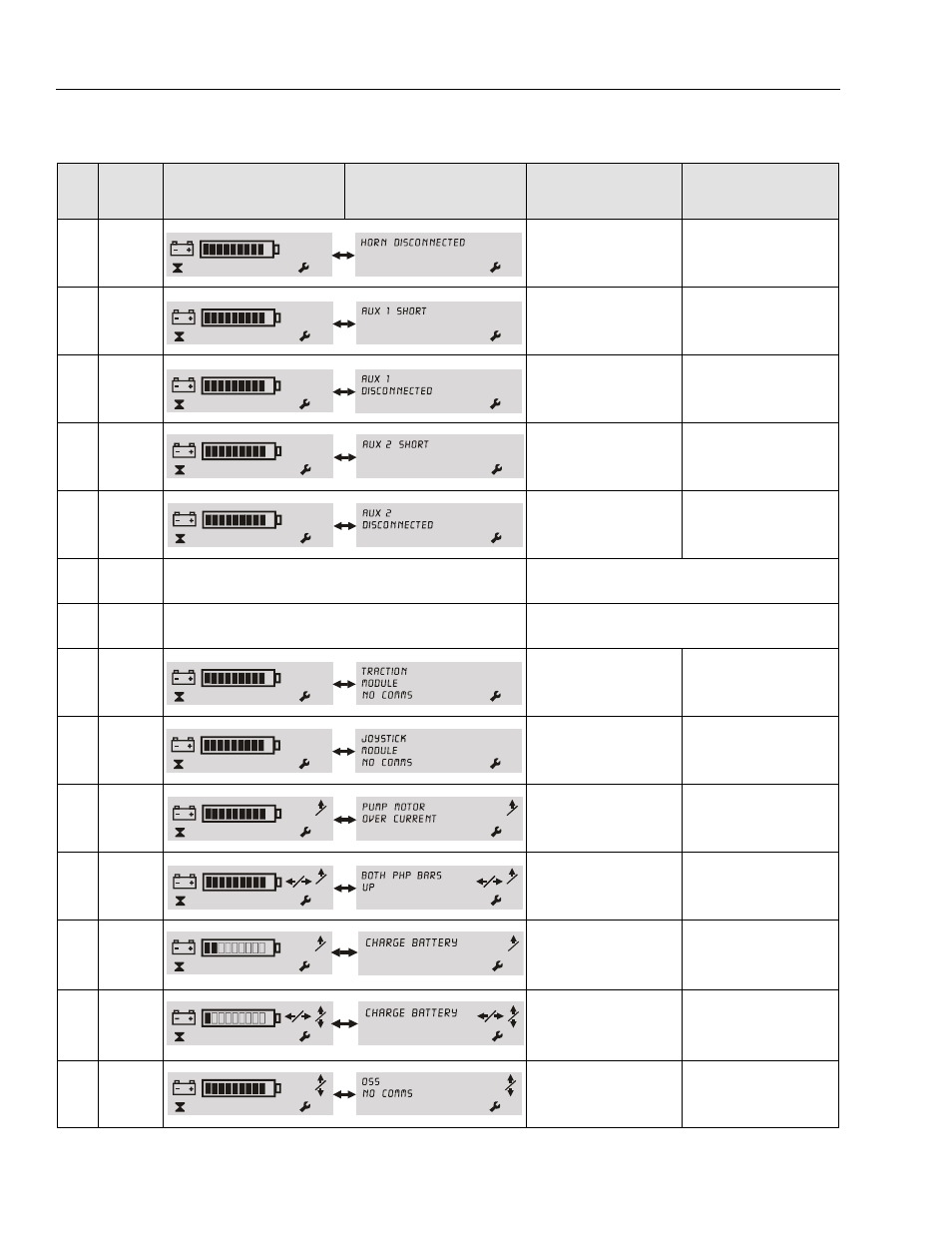

Table 6-1. LCD Display - Service Fault Code Conditions
23 23 00000.0
24 24 00000.0
25 25 00000.0
26 26 00000.0
27 27 00000.0
30 30 00000.0
31 31 00000.0
32 32 00000.0
33 33 00000.0
38 38 00000.0
39 39 00000.0
40 40 00000.0
