SECTION 3 - BASE COMPONENTS
3-14
– JLG Lift –
3121136

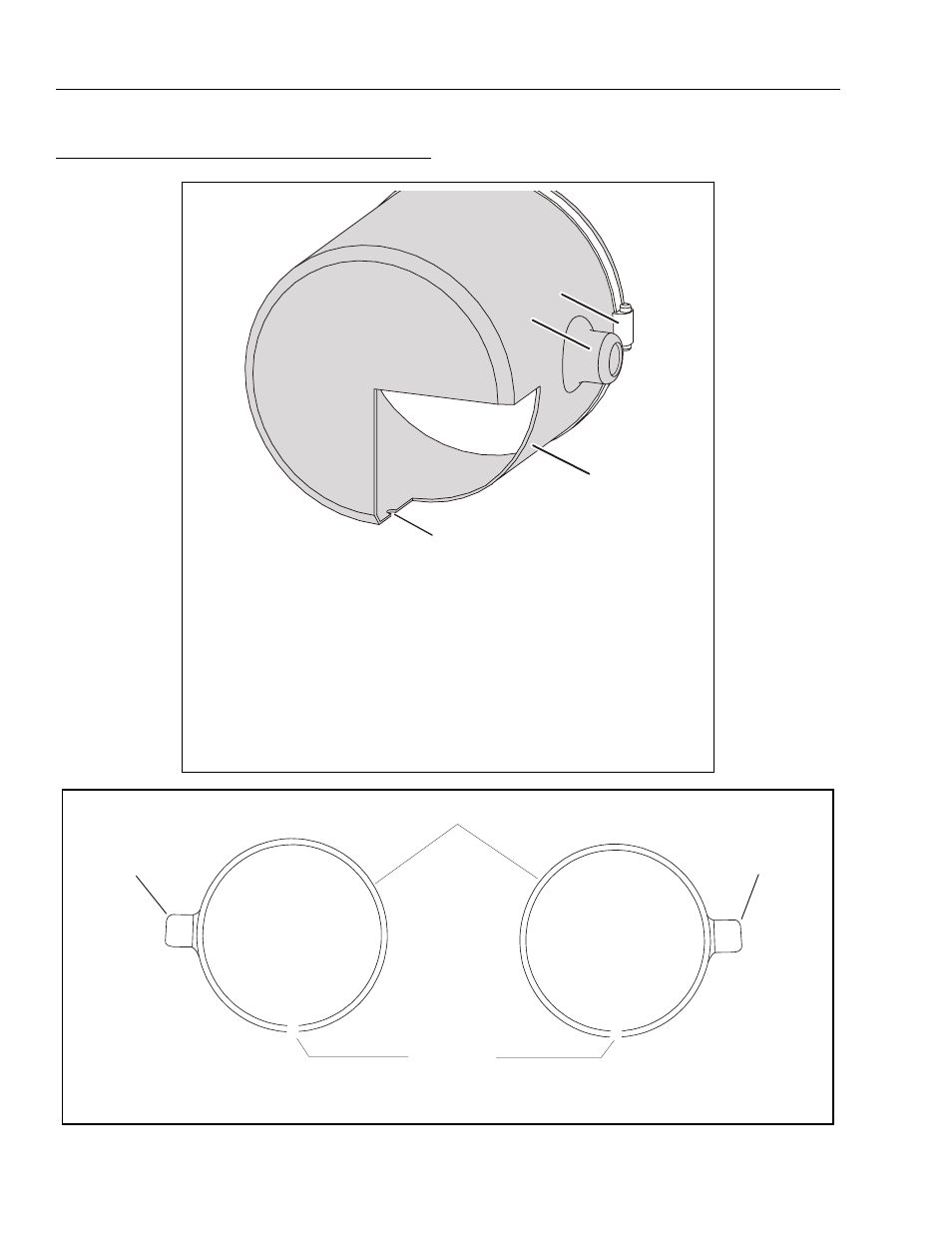

Drive Motor Boot Assembly Installation
Drive Motor Boot Assembly Installation
1. Boot Assembly (Left Drive Motor Boot Shown Cutaway)
2. Drain Hole (Always Locate on Bottom of Boot) (a)
3. Wiring Harness Nipple
4. Boot Clamp
Note: (a) If replacing the boot assembly, cut a hole approximately 3/16 inch (4mm) size on the
BOTTOM of the new boot. This will allow any accumulated condensation to drain out.
The Left and Right Drive Motor use the same replacement boot, however the wiring harness nip-
ple on the boot always points towards the outside of the machine. The drain hole must always be
located on the BOTTOM of the boot, see illustration below.
1
4
3
2
RIGHT DRIVE MOTOR BOOT
LEFT DRIVE MOTOR BOOT
BOOT ASSEMBLY
WIRING HARNESS
NIPPLE
WIRING HARNESS
NIPPLE
DRAIN HOLE
