SECTION 6 - TROUBLESHOOTING
3121136 – JLG Lift – 6-7
FAULT
CODE
PLATFORM
CONSOLE
LEDs
FLASHING
LCD SYMBOL SCREEN LCD TEXT SCREEN
FAULT DESCRIPTION/
MACHINE CONDITION FOR TROUBLESHOOTING
REFER TO
41 —
Internal OSS Sensor #1
Fault Condition
See Table 6-36,
Page 6-28
42 —
Internal OSS Sensor #2
Fault Condition
SSee Table 6-36,
Page 6-28
43 —
Internal OSS Sensor #3
Fault Condition
See Table 6-36,
Page 6-28
44 —
Internal OSS Sensor #4
Fault Condition
See Table 6-36,
Page 6-28
45 —
Internal OSS Sensor #5
Fault Condition
See Table 6-36,
Page 6-28
46 —
Internal OSS Sensor #6
Fault Condition
See Table 6-36,
Page 6-28
100 10
Ground Control Module
Fault Condition
See Table 6-37,
Page 6-29
200 10
Platform Control Console
Fault Condition
See Table 6-38,
Page 6-30
300 10
Traction Control Module
Fault Condition
See Table 6-39,
Page 6-31
400 —
OSS Control Module
Low Internal Supply
See Table 6-35,
Page 6-27
401 —
OSS Control Module
Amplifier Fault
See Table 6-35,
Page 6-27

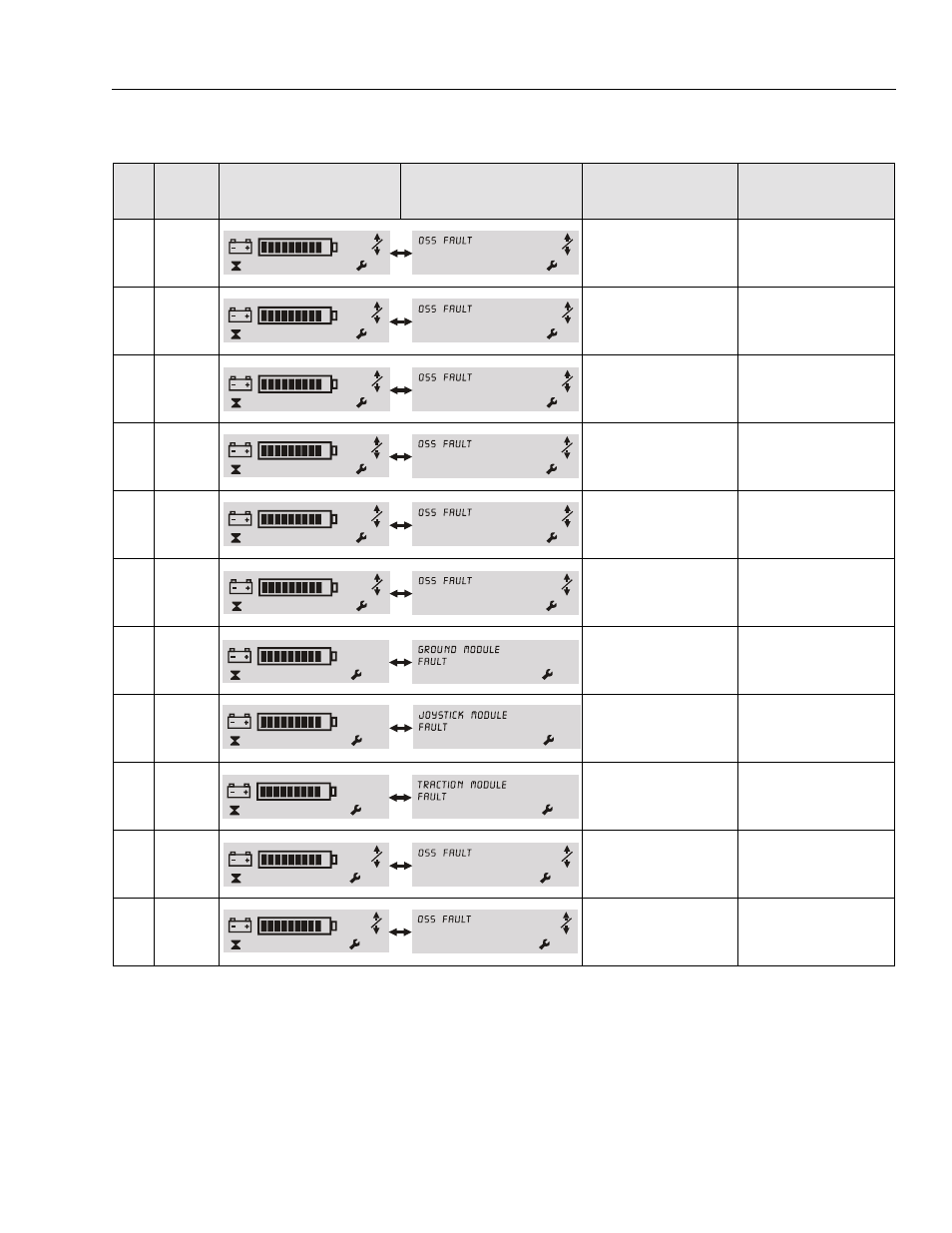

Table 6-1. LCD Display - Service Fault Code Conditions
41 41 00000.0
42 42 00000.0
43 43 00000.0
44 44 00000.0
45 45 00000.0
46 46 00000.0
100 100 00000.0
200 200 00000.0
300 300 00000.0
400 400 00000.0
401 401 00000.0
