SECTION 3 - BASE COMPONENTS
3121136 – JLG Lift – 3-9

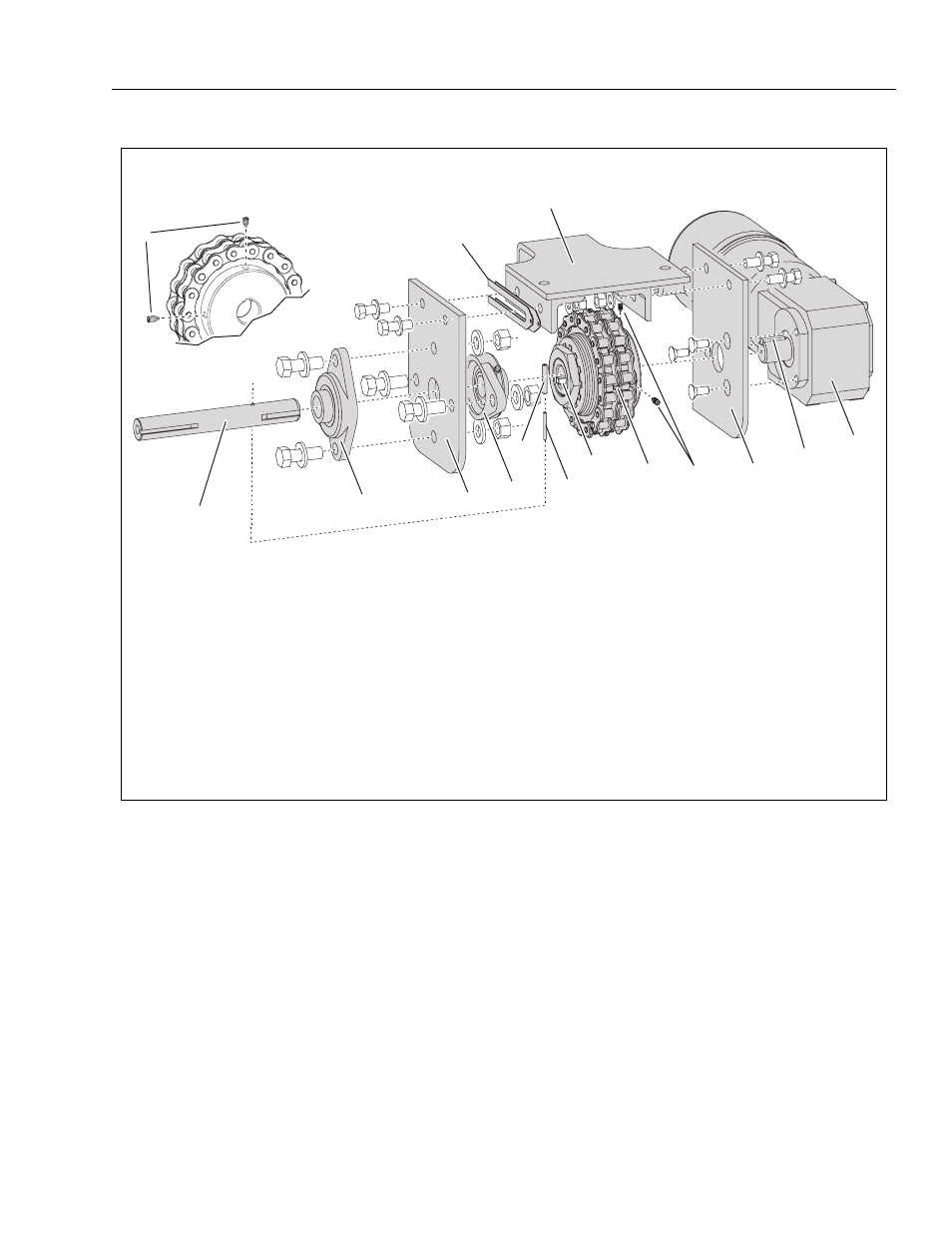

1. Drive Shaft 5. Shaft - Outer Roll Pin (b) 9. Clutch - Set Screws (c) 13. Drive Assembly Mount
2. Shaft - Outer Bearing (a) 6. Shaft - Inside Roll Pin (b) 10. Motor Mount Plate (c) 14. Wheel Alignment Shims (d)
3. Shaft/Bearing Mounting Plate 7. Drive Shaft/Clutch - Key 11. Clutch/Motor Shaft - Key
4. Shaft - Inner Bearing (a) 8. Torque Limiting Clutch 12. Drive Motor Assembly
Installation shown applies to both left or right drive motor, (left side shown above). Drive motors are mounted with the power cable outlet/
nipple towards the outboard side of the base frame.
Notes: (a) Tighten bearing collar set screws on bearing, into the drive shaft when assembling.
(b) Install with item #6 inside of item #5 before driving into shaft.
(c) Apply Loctite 242 to the threads of item 8 and to the threads of the countersunk screws mounting the drive motor to item 9.
(d) Required only if drive wheel vertical alignment is not within specification. (See Drive Wheel Alignment, this section of manual.)
Figure 3-4. Drive Motor Component Assembly (Machines built prior to S/N-0130005271)
9
1
2 3
4
5
7
6
8 9
11
10
12
13
14
