Page 77: Button pad installation

SECTION 4 - CONTROL COMPONENTS
3121136
– JLG Lift –
4-19

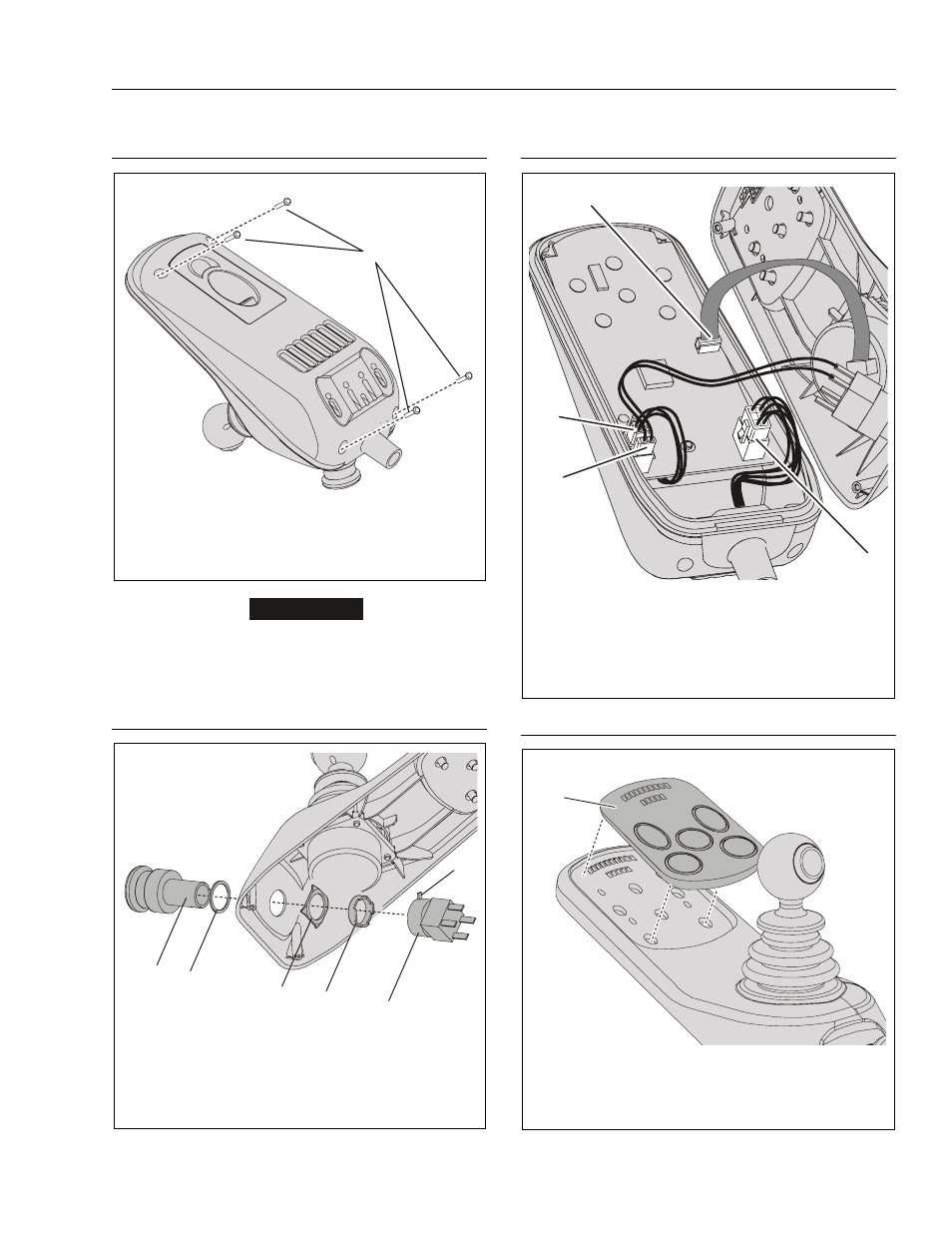

Upper/Lower Shell Attach Screws
IMPORTANT
CAREFULLY SLIDE THE UPPER SHELL HALF FROM THE LOWER
SHELL HALF. THE COMPONENTS MOUNTED IN THE UPPER SHELL
HALF CONNECT TO THE CIRCUIT BOARD IN THE LOWER SHELL
HALF.
Emergency Stop Switch Installation
Upper/Lower Shell Component Connections
Button Pad Installation
Upper/Lower Shell Installation
1. Remove the (4) Phillips Head Screws from the
Lower Shell Housing.
Emergency Stop Switch Installation
1. Emergency Stop Button
4. Button Assembly Nut
2. Seal
5. Emergency Stop Switch
3. Square Lock Washer
6. Switch Release/Lock Lever
1
1
2
3
4
5
6
Platform Control Console Circuit Board Connections
1. Connection to Ground Control Module
2. Emergency Stop Wiring Connector
3. External Programming Socket Connector
4. Joystick Ribbon Cable Connector
Button Pad Installation
1. Button Pad Assembly
(Attached by adhesive backing)
1
2
3
4
1
