SECTION 3 - BASE COMPONENTS
3-2
– JLG Lift –
3121136
3.2

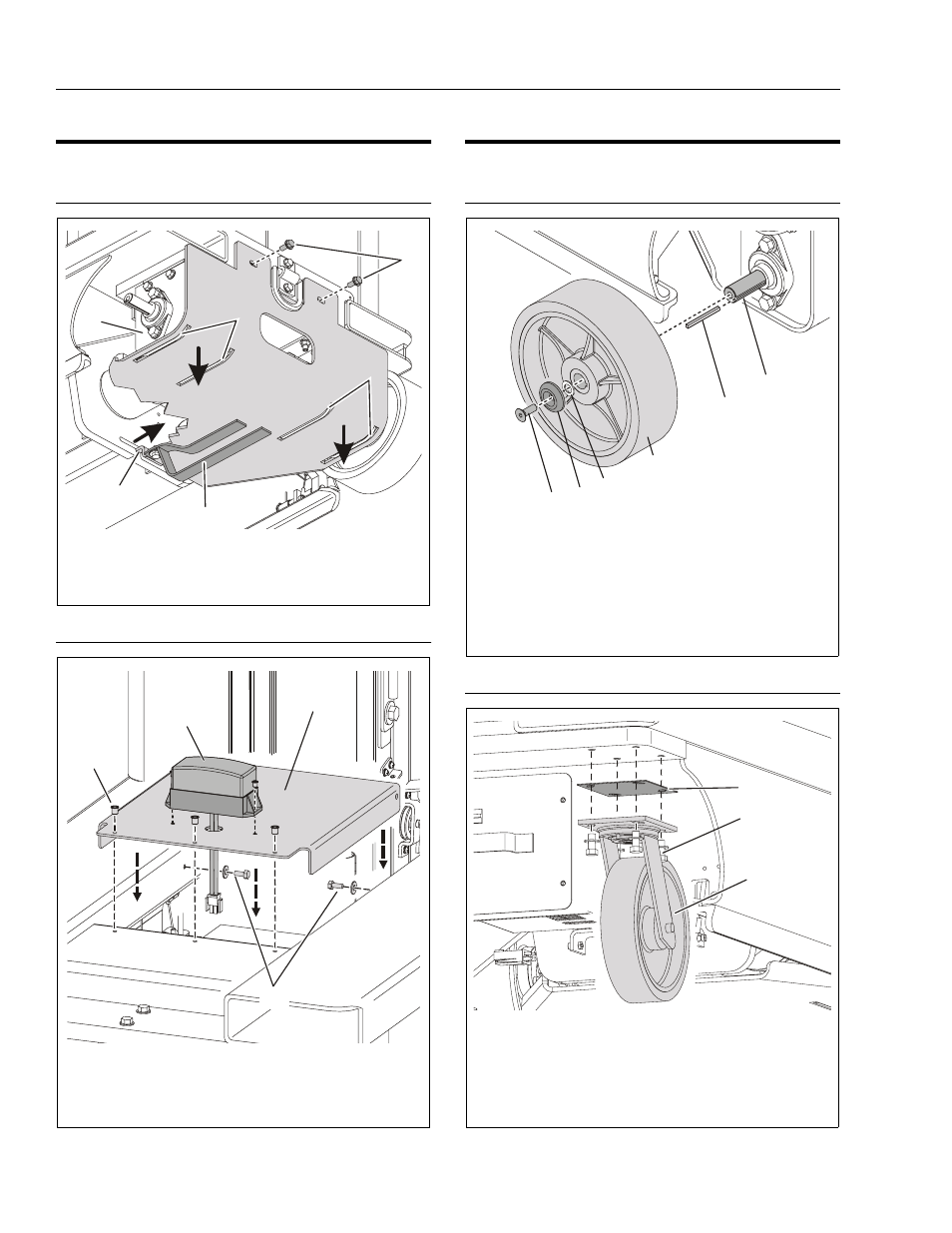

BASE FRAME COVERS
Drive Motor Cover - Installation
Battery Charger Cover - Installation
3.3
DRIVE AND CASTER WHEELS
Drive Motor Wheel (Std.) - Installation
Caster Wheels - Installation
1. Hex Head Screws/Washers -
3. Drive Motor Mount
(Apply Loctite 242)
4. Motor Mount Interlock Slots
2. Front Support Tab
5. Static Strap
1. Battery Charger Cover
3. Hex Head Screws/Washers
2. Cap Screws/Washers
4. Base Mounted Beacon (a)
Note: (a) Standard on DVSP; Option on DVL Series
5
3
4
2
4
1
1
2
3
4
1. Wheel Retaining Screw (a)
4. Drive Wheel
2. Retaining Washer
5. Drive Shaft Key
3. 2mm x 10mm Dia. Washer (b)
6. Drive Shaft Key Slot
Note:
(a) On assembly, apply Loctite 242, torque to 35 ft. lb.
(b) Install as required; Must be .005" minimum distance
between retaining washer (item 2) and wheel hub face
(item 4) with retaining screw torqued.
1. Caster Wheel Assembly
3. Caster Shim (b)
2. Hex Head Screw/Flat Washer (a)
Note: (a) On assembly, apply Loctite 242 to threads.
(b) As required; Place unit on a flat surface, shim a caster
wheel that is more than .015" off of flat surface.
1
2
6
4
5
3
1
2
3
