SECTION 6 - TROUBLESHOOTING
6-10
– JLG Lift –
3121136
6.6
SPECIFICATIONS FOR VARIOUS COMPONENTS
The following table contains specifications for DVL Series and DVSP machine components.
6.7
SPECIAL PIN EXTRACTOR TOOLS FOR ELECTRICAL CONNECTORS
The following table contains pin extractor tools for DVL Series and DVSP machine electrical connector components.
Table 6-2. Ohm Ratings for Various Components
COMPONENT
NOMINAL RESISTANCE @ TEMPERATURE
RESISTANCE RANGE POSSIBLE
Pump Motor
0.2ohm - 0.4ohm @ 77deg F
0.12ohm - 0.49ohm
Brake Coil
44.7ohm - 52ohm @ 68deg F
31.4ohm - 65.3ohm
Drive Motor (Bodine)
.1 to .3ohm
(Can change depending on the rotation of the
armature and temperature.)
N/A
Table 6-3. Amperage Draw for Various Components
COMPONENT
AMPERAGE
Ground Control Module
20DVL - 95 Amps @ room temperature with rated load
15DVSP - 110 Amps @ room temperature with rated load
Traction Control Module
LEVEL SURFACE
(24V) (RATED LOAD)
15% GRADE
(24V) (RATED LOAD)
NO LOAD (24V)
7 to 11 Amps
(per motor)
55 to 60 Amps
(per motor)
3.5 to 4.8 Amps
78 to 86 RPM

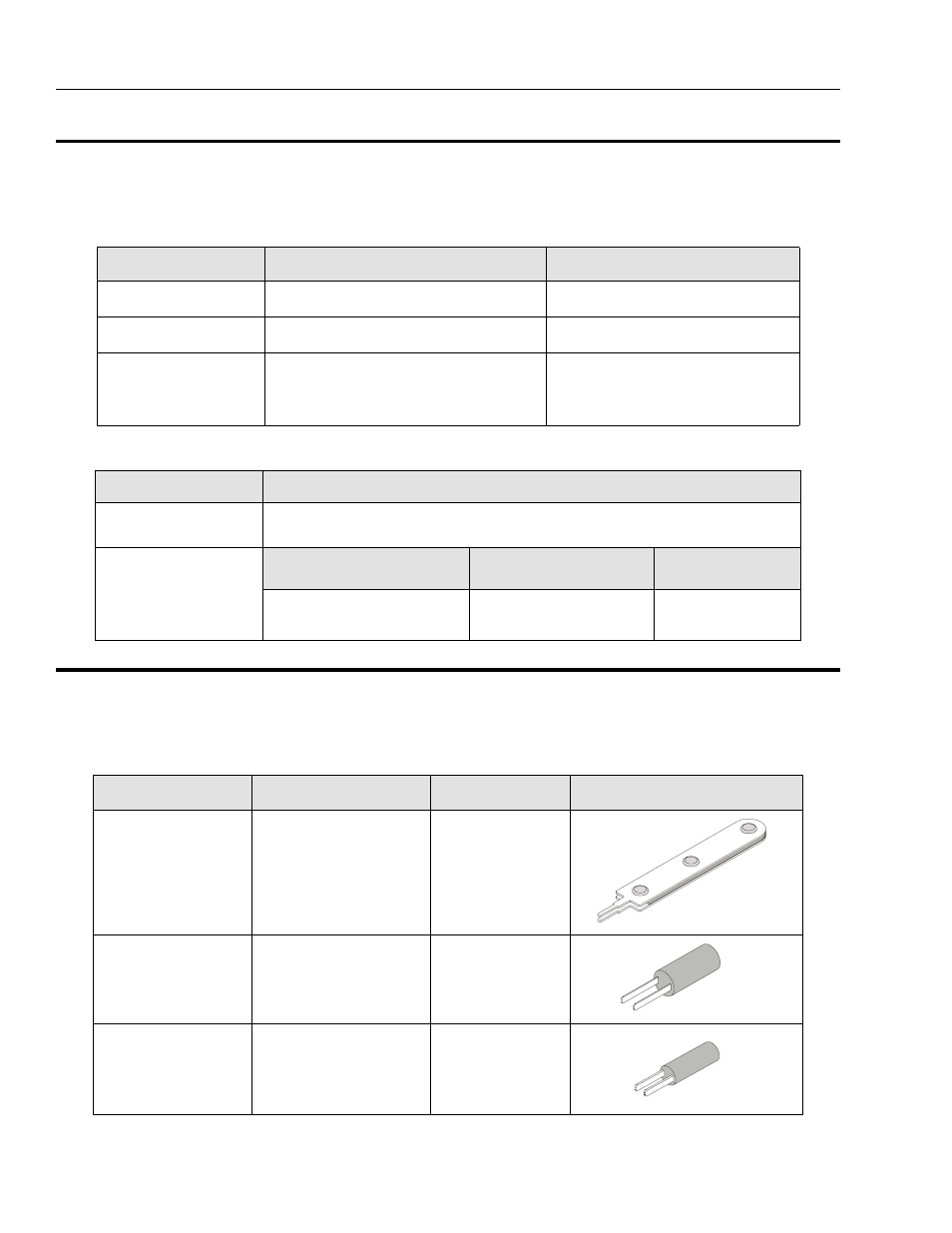

Table 6-4. Special Pin Extractor Tools for Electrical Connectors
COMPONENT
DESCRIPTION
JLG PART NUMBER
ILLUSTRATION
Ground Control Station
For removal of electrical
connector pins from the
Ground Control Station
connectors.
7016618
Drive Motor
For removal of electrical
connector pins from the
Drive Motor main power
connectors.
7002841
Drive Motor Brake
For removal of electrical
connector pins from the
Drive Motor Brake power
connectors.
7002842
