3.6 POT HOLE PROTECTION SYSTEM

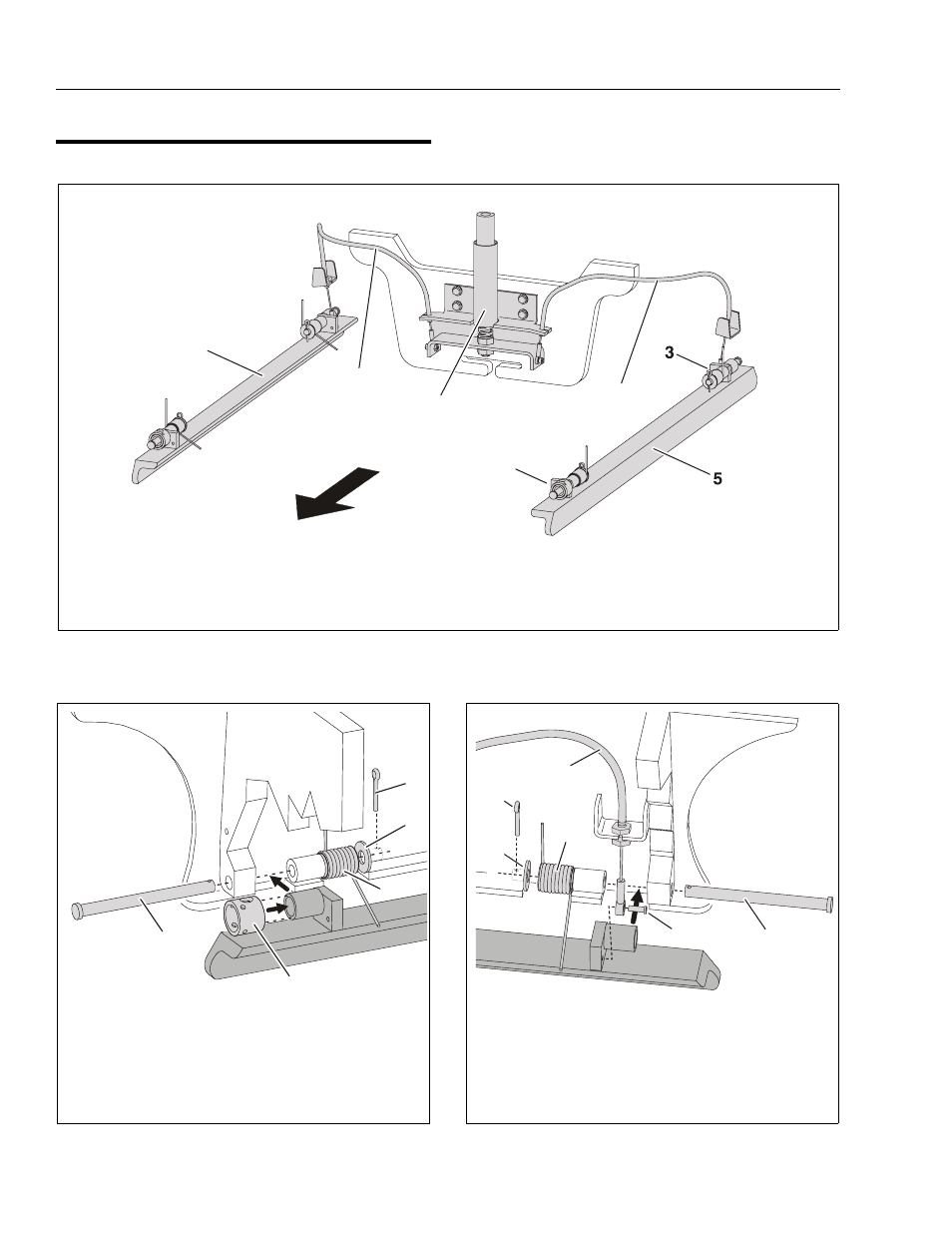

Pot-Hole-Protection Components
1. Actuator Assembly 3. Rear Hinge Hardware 5. Left Side PHP Bar 7. Machine Front
2. Actuator Cables 4. Front Hinge Hardware 6. Right Side PHP Bar
Figure 3-9. Pot-Hole-Protection System Components.
1
6
4
7
2
2
Front Hinge Assembly Installation
1. Flat Head Pin (a) 3. Torsion Spring 5. Cotter Pin
2. Limit Switch Cam 4. Flat Washer
Notes: (a) Apply White Lithium Grease to shaft.
1
2
3
4
5
Rear Hinge Assembly Installation
1. Flat Head Pin (a) 3. Torsion Spring 5. Cotter Pin
2. Cable Attach Pin 4. Flat Washer 6. Actuator Cable
Notes: (a) Apply White Lithium Grease to shaft.
1 2
4
5
6
3
