SECTION 1 - MACHINE SPECIFICATIONS
3121136 – JLG Lift – 1-1

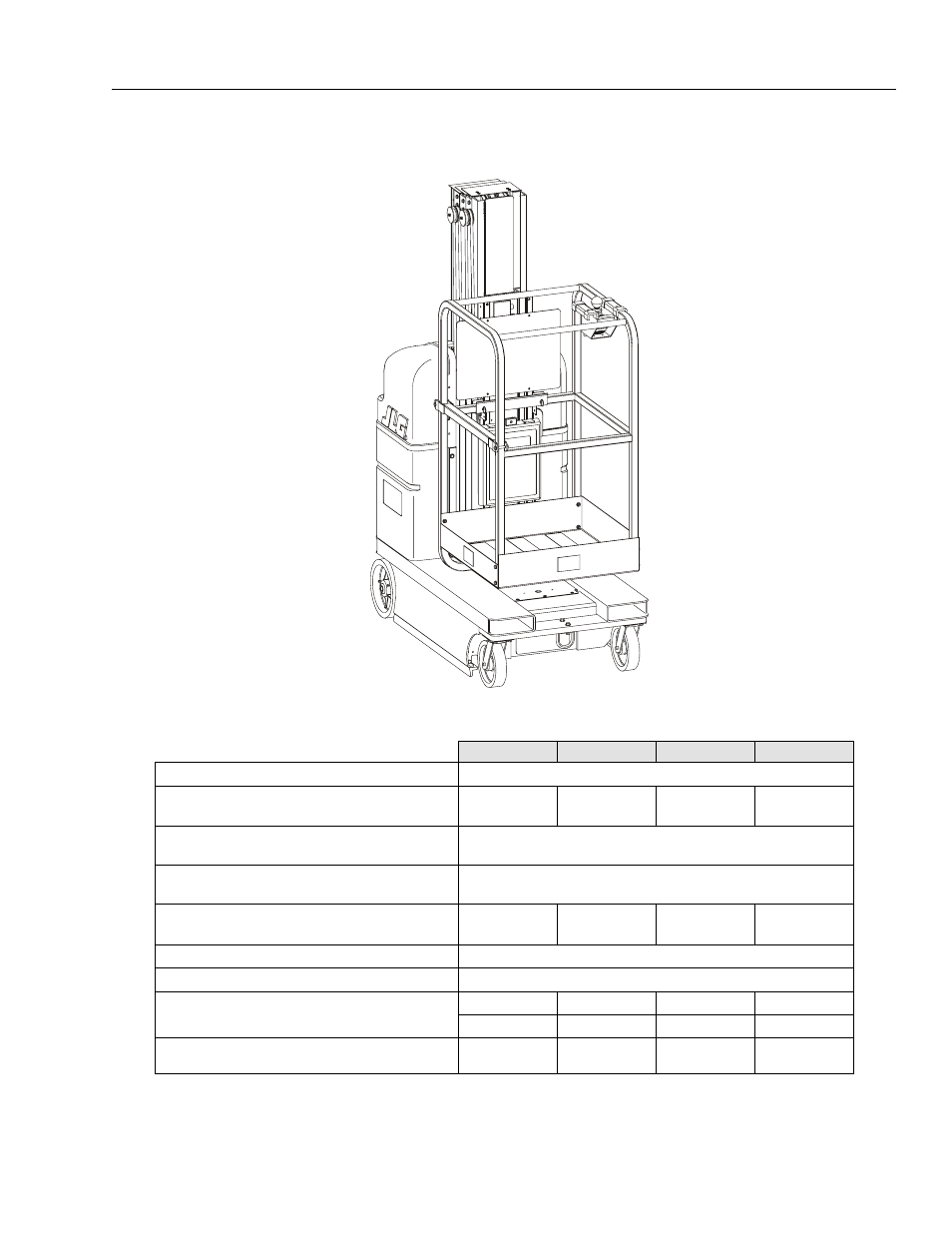

SECTION 1. MACHINE SPECIFICATIONS
Table 1-1. DVL and DVSP - Machine Specifications
15DVL 20DVL 15DVSP 20DVSP
Maximum Occupants: 1
Maximum Work Load (Capacity):
(DVL-Std. Platform / DVSP - Stockpicker Platform)
500 lb.
(230 kg)
350 lb.
(160 kg)
500 lb.
(230 kg)
400 lb.
(180 kg)
Maximum Travel Grade (Gradeability):
(Platform STOWED ONLY)
20%
Maximum Travel Grade (Side Slope):
(Platform STOWED ONLY)
5°
Maximum Vertical Platform Height:
15 ft.
(4.57 m)
19.5 ft.
(5.94 m)
15 ft.
(4.57 m)
19.5 ft.
(5.94m)
Maximum Wheel Load (Per Wheel): 800 lb. (360 kg)
Maximum Drive Speeds (Operator Variable): 0.5 - 2 mph (0.8 - 3.2 kph)
Max. Platform Speeds (w/Max. Load): Platform Up: 20 sec. 22.5 sec. 20 sec. 22.5 sec.
Platform Down: 15 - 21 sec. 21 - 26 sec. 15 - 21 sec. 21 - 26 sec.
Gross Machine Weight (Platform Empty):
2,105 lb.
(955 kg)
2,105 lb.
(955 kg)
2,150 lb.
(975 kg)
2,150 lb.
(975kg)
