Electrical schematic - gm - sheet 4 of 5 -22 – JLG 4394RT Service Manual User Manual

Page 254

background image

SECTION 6 - GENERAL ELECTRICAL INFORMATION & SCHEMATICS

6-22

– JLG Lift –

3121249

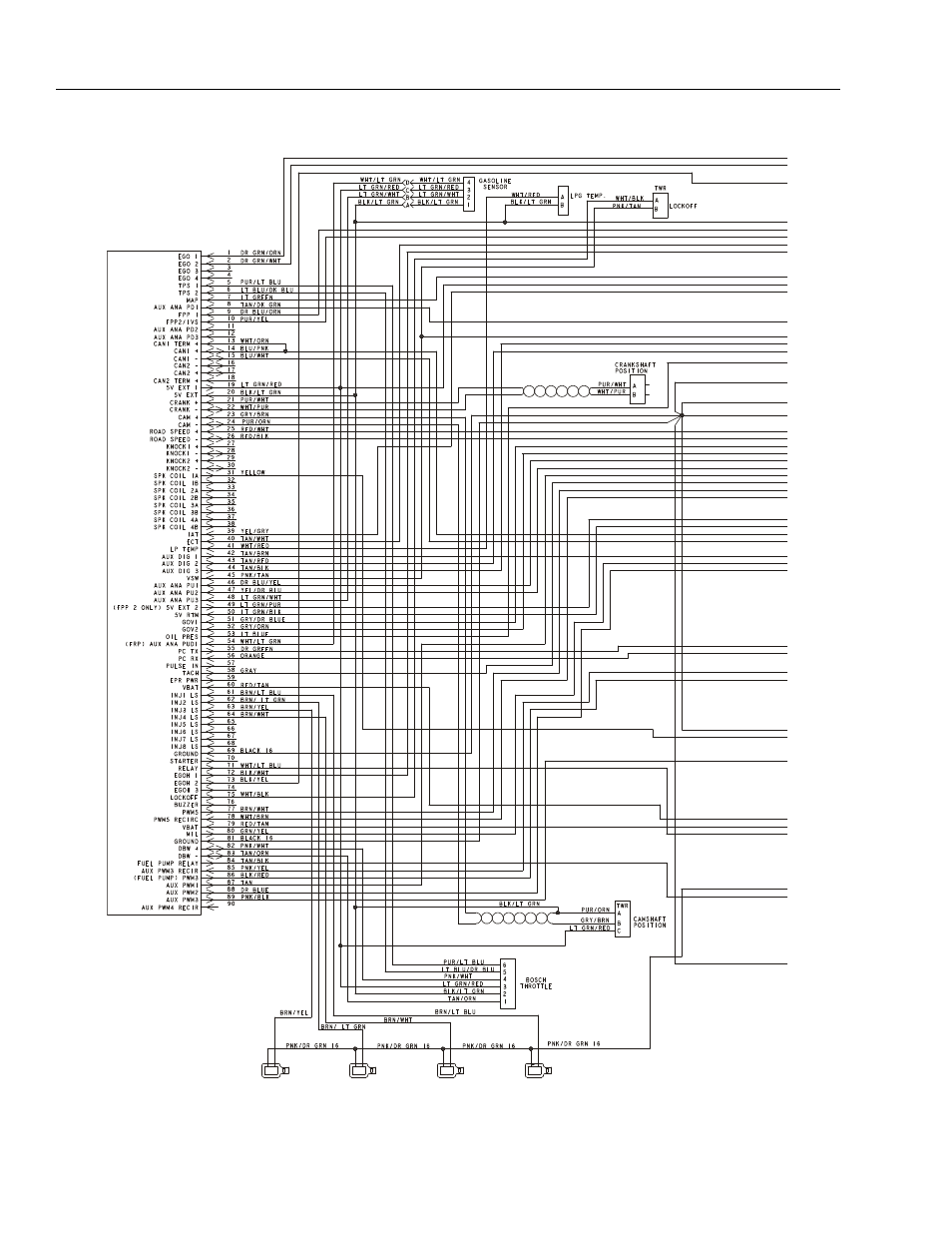

Figure 6-22. Electrical Schematic - GM - Sheet 3 of 3
