SECTION 4 - HYDRAULICS
3121249 – JLG Lift – 4-31
4.12 AUXILIARY PUMP MOTOR
• Displacement: 0.097 CU. IN/REV (1.59 CC/REV) • Delivers 1.2 min. GPM (4.5 min Liters/Min) at 1500 psi
(103.4 bar) and 165 Amps maximum at 12VDC
1
2
3
4
5
Hydraulic Schematic
Item # Torque
1. UNF-2A Terminal 84 in-lbs (9.5 Nm)
2. 2x 96 - 120 in-lbs (11 - 14 Nm)
3. Check Valve Cap 144 - 180 in-lbs (16 - 20 Nm)
4. 4x 180 - 216 in-lbs (20 - 24 Nm)
5. 8x 114 - 150 in-lbs (13 - 17 Nm)

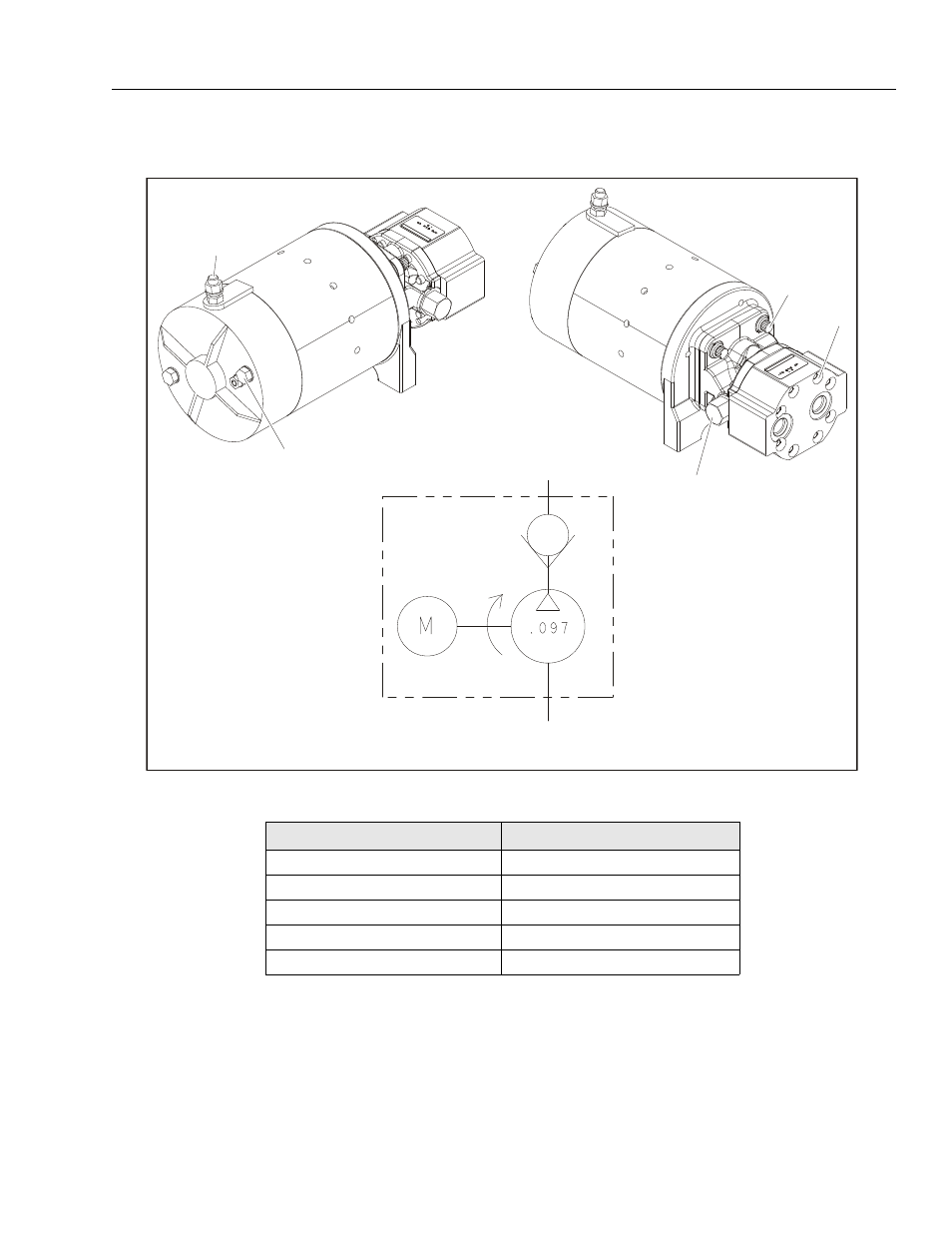

Figure 4-27. Auxiliary Pump Motor
