Generator (if equipped)
ALLOW ENGINE AND COMPONENTS TO COOL DOWN BEFORE
SERVICING.
REMOVAL:
1. Disable machine operation. Disconnect and label
electrical wires attached to generator (1).
2. Remove the generator from the engine (2) by remov-
ing the three bolts (3, 5) and washers (4, 5).
3. Replace belt if damaged.
INSTALLATION:
1. Follow Removal Steps in reverse. Ensure belt is tight
before securing generator with the bolts.
NOTE: Apply Loctite® #242 to the bolts (3, 5).
7
-OR-
3, 4
5, 6
1 2
1. Generator (120V or 220V)
2. Deutz Engine
3. Bolt, 5/16"-18NC x 1" 4. Washer
5. Bolt, 7/16"-14NC x 2 1/4"
6. Washer 7. Voltage Regulator

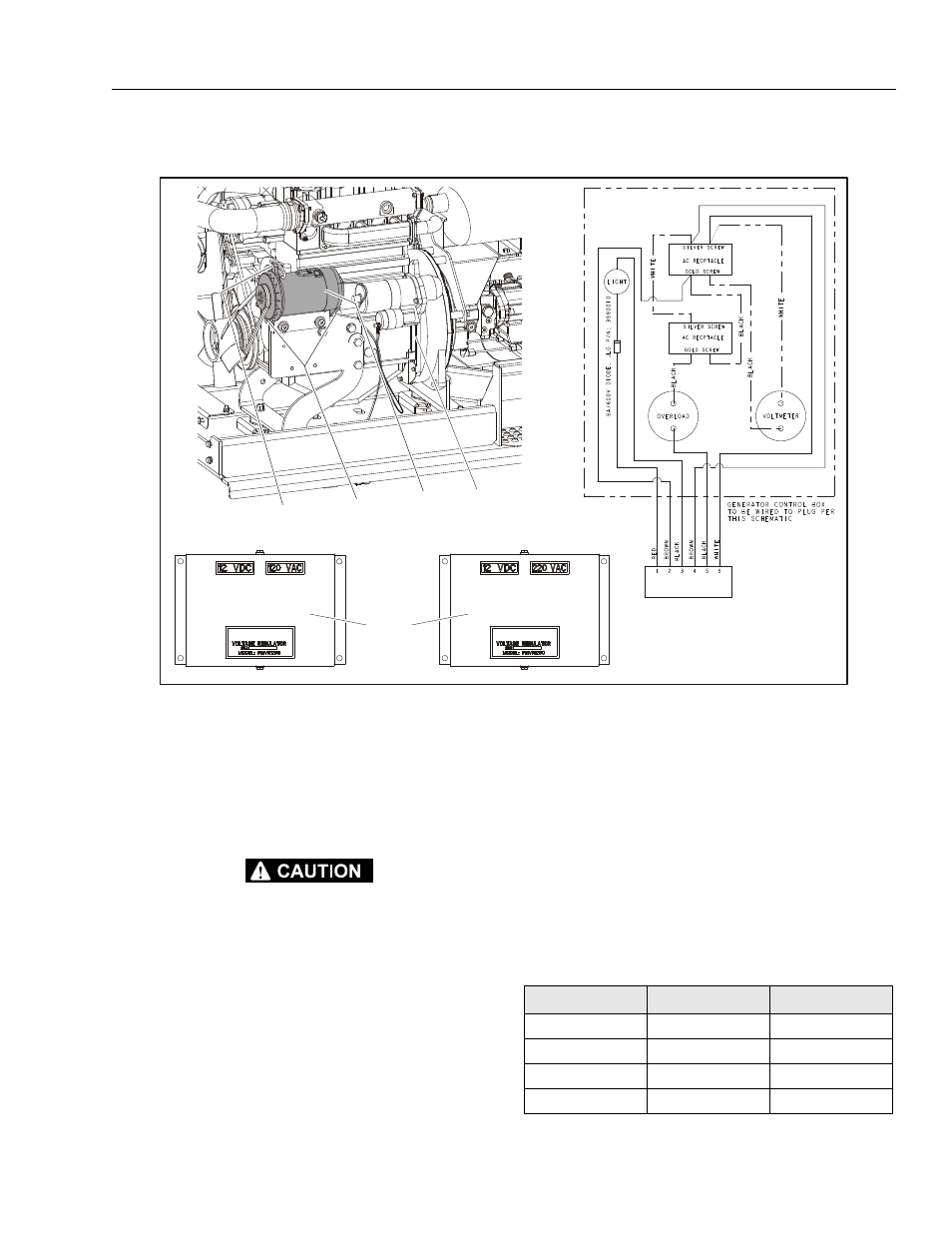

Figure 3-62. Generator (Deutz Engine)
Table 3-13. Generator Specifications
Description 110 Bluemax 220 Powermax
Voltage 120V 220V
Continuous 3.5 KW 2.0 KW
Peak 4.5 KW 3.0 KW
Amps Peak 37 Amps 13 Amps
