SECTION 3 - CHASSIS, PLATFORM & SCISSOR ARMS
3-74 – JLG Lift – 3121249
3.14 BATTERY
REMOVAL:
1. Disconnect the red battery cable from the positive
battery terminal (2).
2. Disconnect the black battery cable from the negative
battery terminal.
3. Remove the bolt, nut, and washers (4) to remove the
bracket securing the battery in place. Remove bat-
tery.
4. The fuse mounting block (5) can be removed by first
disconnecting the cables. Remove the bolts, wash-
ers and nuts securing the fuse block to the machine.
INSTALLATION:
1. Place battery in the seat. Positive battery terminal (2)
should be closest to outside of machine.
2. Secure battery in place with bracket, bolt, nut and
washers (4).
3. Reconnect red battery cable to positive battery ter-
minal (2). Secure terminal cover in place over termi-
nal.
4. Reconnect black battery cable to negative battery
terminal (3).
5. Secure fuse mounting block (5) to machine using
two bolts, nuts and washers. Reconnect cables.

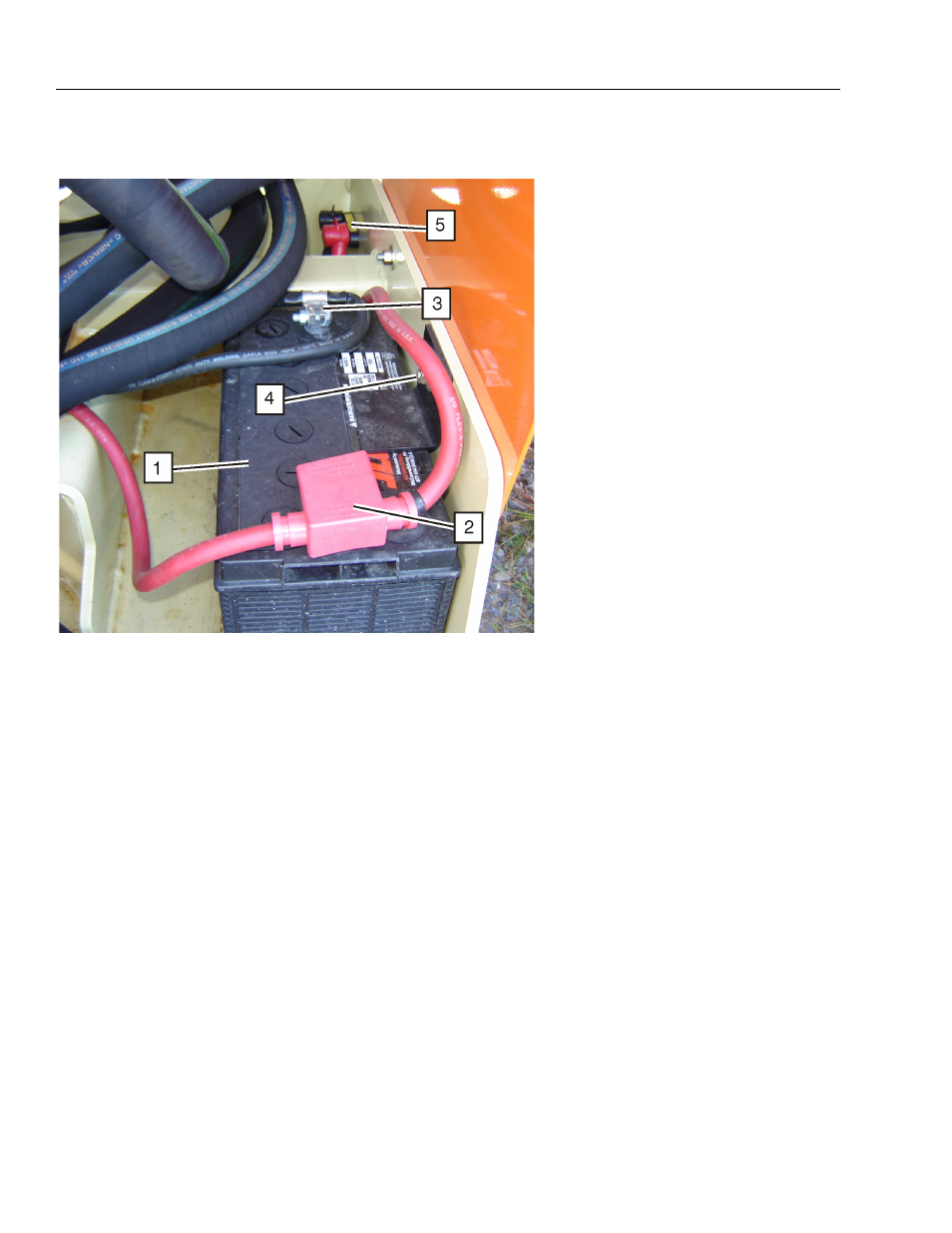

1. Battery
2. Battery Terminal (+)
3. Battery Terminal (-)
4. Bracket, Bolt, Nut & Washers
5. Fuse Mounting Block
Figure 3-48. Battery Removal
